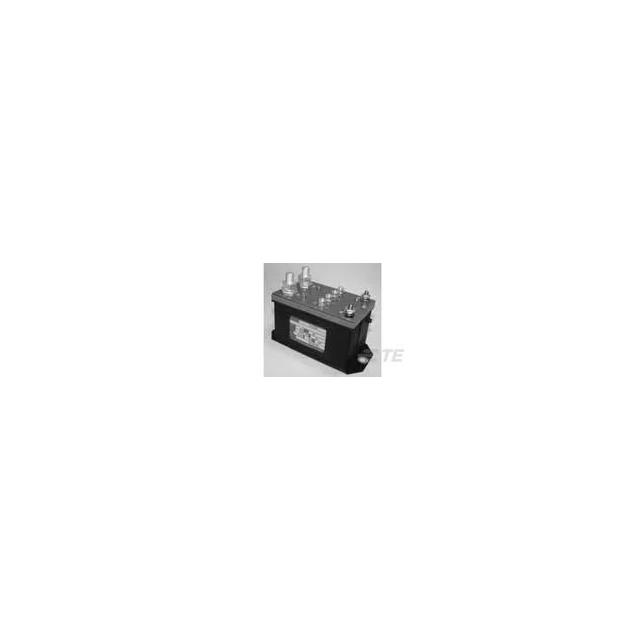

1616058 Series

Catalog

A770RF=RELAY

Part	Switching Voltage	Termination Style	Contact Form	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Coil Voltage	Mounting Type	Must Operate Voltage	Features	Operate Time	Release Time	Coil Resistance	Relay Type	Load - Max Switching	Switching Voltage [Max]	Coil Current	Coil Type	Coil Power
TE Connectivity AMP Connectors 3-1616058-4	28 VDC	Stud	SPST-NO (1 Form A)	300 A	71 °C	-55 C	1.5 VDC	28 VDC	Chassis Mount	16 VDC	Auxiliary Contacts
TE Connectivity AMP Connectors 2-1616058-3
TE Connectivity AMP Connectors 4-1616058-1	28 VDC	Stud	SPST-NO (1 Form A)	300 A	71 °C	-55 C	1.5 VDC	28 VDC	Chassis Mount	16 VDC	Auxiliary Contacts
TE Connectivity AMP Connectors 1616058-7	28 VDC	Stud	SPST-NO (1 Form A)	400 A	71 °C	-55 C	0.5 VDC	28 VDC	Chassis Mount	12 VDC	Auxiliary Contacts	35 ms	35 ms
TE Connectivity AMP Connectors 2-1616058-6		Stud	SPST-NO (DM) (1 Form X)	600 A	71 °C	-55 C	1 VDC	29 VDC	Chassis Mount	18 VDC				12.2 Ohms	General Purpose	16800 VA	28 VDC	2.4 A	Non Latching
TE Connectivity AMP Connectors 3-1616058-7
TE Connectivity AMP Connectors 1616058-5		Stud	SPST-NO (1 Form A)	400 A	71 °C	-55 C		28 VDC	Chassis Mount			35 ms	35 ms		General Purpose				Non Latching
TE Connectivity AMP Connectors 1-1616058-4	28 VDC	Stud	SPST-NO (1 Form A)	400 A	71 °C	-55 C	0.5 VDC	30 VDC	Chassis Mount	12 VDC	Auxiliary Contacts Sealed - Hermetically	35 ms	35 ms	14 Ohms				2.1 A		64.3 W
