SCR22-060 Series

Manufacturer: KEMET

Catalog

CMC 7.5MH 6A 2LN TH

Part	Inductance @ Frequency	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Number of Lines	DC Resistance (DCR) (Max) [Max]	Mounting Type	Current Rating (Max) [Max]	Voltage Rating - DC	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Filter Type	Height (Max) [z]	Height (Max) [z]
KEMET SCR22-060-1R0A075JH	7.5 mH	250 V	120 °C	-25 °C	29 mm	0.906 in	23 mm	1.142 in	4 PC Pin Horizontal	2	42 mOhm	Through Hole	6 A	250 V	29 mm	1.142 in	Power Line

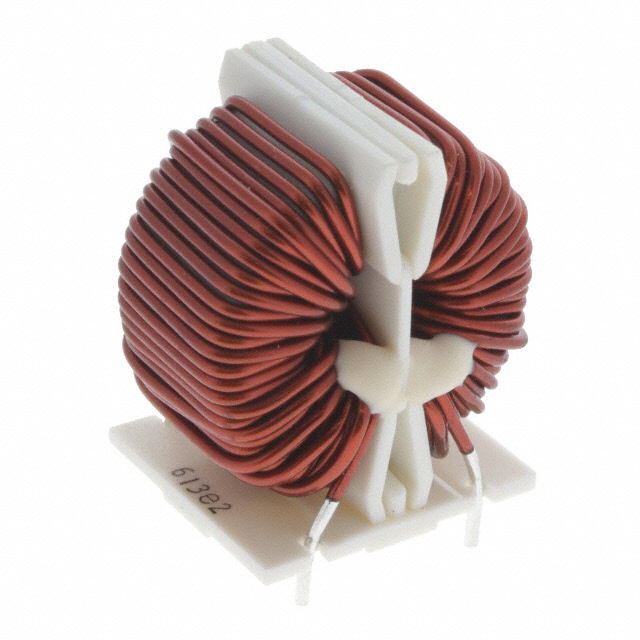

KEMET SCR22-060-1R0A075J	7.5 mH	250 V	120 °C	-25 °C	29 mm	0.906 in	23 mm	1.142 in	Vertical 4 PC Pin	2	42 mOhm	Through Hole	6 A	250 V			Power Line	24 mm	0.945 in
