MS3120E12 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT FMALE 10POS GOLD CRIMP

Part	Applications	Backshell Material	Plating	Insert Material	Contact Material	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Shell Material	Primary Material	Ingress Protection	Features	Grade	Orientation	Mounting Feature	Color	Fastening Type	Contact Finish - Mating	Mounting Type	Termination	Shielding	Qualification	Shell Size - Insert Width	Shell Size - Insert Length	Connector Type	Shell Finish	Type	Contact Type	Housing Color	Contact Size	Note	Contact Shape
Amphenol Aerospace Operations MS3120E12-10S	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Aluminum	Olive Drab Chromate over Cadmium	Neoprene	Copper Alloy	10	125 °C	-55 °C	Aluminum	Metal	Environment Resistant	Backshell	Military	N (Normal)	Flange	Olive Drab	Bayonet Lock	Gold	Panel Mount	Crimp	Unshielded	MIL-DTL-26482 Series I	10 mm	12 mm	Female Sockets Receptacle	Cadmium Olive Drab Chromate
Amphenol Aerospace Operations MS3120E12-3A

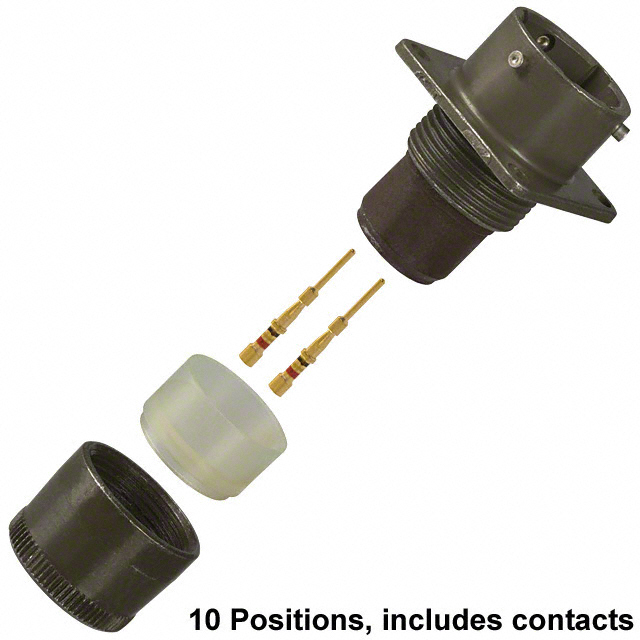

Amphenol Aerospace Operations MS3120E12-10P	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Aluminum	Olive Drab Chromate over Cadmium	Neoprene	Copper Alloy	10	125 °C	-55 °C	Aluminum	Metal	Environment Resistant	Backshell	Military	N (Normal)	Flange	Olive Drab	Bayonet Lock	Gold	Panel Mount	Crimp	Unshielded	MIL-DTL-26482 Series I	10 mm	12 mm	Male Pins Receptacle	Cadmium Olive Drab Chromate
Amphenol Aerospace Operations MS3120E12-3P(LC)
Amphenol Aerospace Operations MS3120E12-3P	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Aluminum	Olive Drab Chromate over Cadmium	Neoprene	Copper Alloy	3	125 °C	-55 °C	Aluminum	Metal	Environment Resistant	Backshell	Military	N (Normal)	Flange	Olive Drab	Bayonet Lock	Gold	Panel Mount	Crimp	Unshielded	MIL-DTL-26482 Series I	3 mm	12 mm	Male Pins Receptacle	Cadmium Olive Drab Chromate
Amphenol Aerospace Operations MS3120E12-10S(LC)
Amphenol Aerospace Operations MS3120E12-10PLC				Neoprene		10	125 °C	-55 °C	Aluminum		Environment Resistant	Backshell	Military	N (Normal)	Flange		Bayonet Lock		Panel Mount		Unshielded	MIL-DTL-26482 Series I	10 mm	12 mm	Receptacle Housing	Cadmium Chromate	For Male Pins	Crimp	Olive Drab	20	Contacts Not Included	Circular
Amphenol Aerospace Operations MS3120E12-8P	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Aluminum	Olive Drab Chromate over Cadmium	Neoprene	Copper Alloy	8	125 °C	-55 °C	Aluminum	Metal	Environment Resistant	Backshell	Military	N (Normal)	Flange	Olive Drab	Bayonet Lock	Gold	Panel Mount	Crimp	Unshielded	MIL-DTL-26482 Series I	8 mm	12 mm	Male Pins Receptacle	Cadmium Olive Drab Chromate
Amphenol Aerospace Operations MS3120E12-3S	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Aluminum	Olive Drab Chromate over Cadmium	Neoprene	Copper Alloy	3	125 °C	-55 °C	Aluminum	Metal	Environment Resistant	Backshell	Military	N (Normal)	Flange	Olive Drab	Bayonet Lock	Gold	Panel Mount	Crimp	Unshielded	MIL-DTL-26482 Series I	3 mm	12 mm	Female Sockets Receptacle	Cadmium Olive Drab Chromate
