SH-3 Series
Manufacturer: Sensata-Crydom
Beta
⌘K

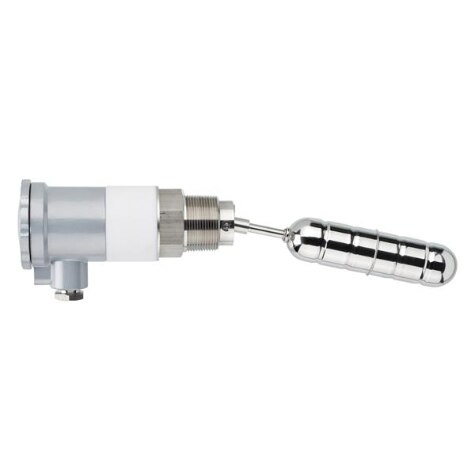

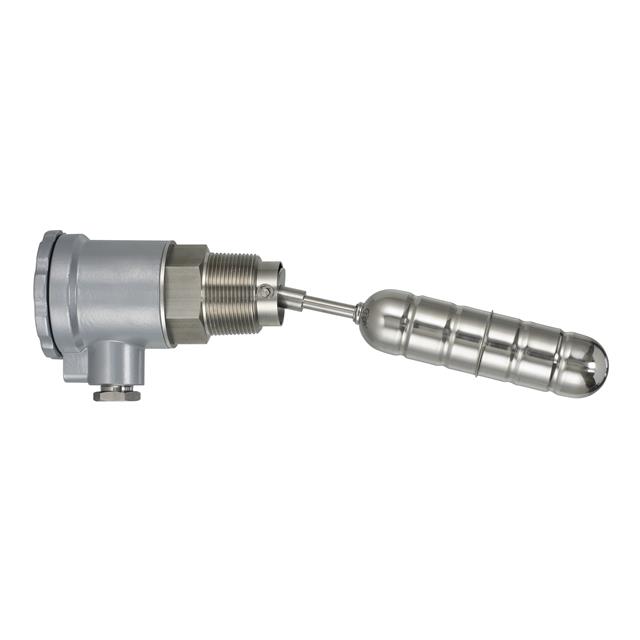

LEVEL SENSORS 2" NPT PLUG, FLOAT 150X50DIA
| Part | Mounting Type | Mounting Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Output Configuration | Current | Minimum Liquid Specific Gravity [Min] | Voltage Rating | Voltage Rating | Material - Housing & Prism | Type | Output Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | Male NPT | 50.8 mm | 2 in | 0 °C | 100 °C | SPDT | 5 A | 0.6 | 250 VAC | 120 VDC | 316 Stainless Steel | Liquid | Switch (Single Float) | |
 Sensata-Crydom | Male NPT | 38.1 mm | 0 °C | 100 °C | SPDT | 5 A | 0.7 | 250 VAC | 120 VDC | 316 Stainless Steel | Liquid | Switch (Single Float) | ||
 Sensata-Crydom | Male NPT | 38.1 mm | 0 °C | 200 °C | SPDT | 1 A | 0.7 | 400 V | 316 Stainless Steel | Liquid | Switch (Single Float) | |||
 Sensata-Crydom | Male NPT | 50.8 mm | 2 in | 0 °C | 200 °C | SPDT | 1 A | 0.6 | 400 V | 316 Stainless Steel | Liquid | Switch (Single Float) |
