887-012 Series
Manufacturer: EDAC Inc.
Beta
⌘K

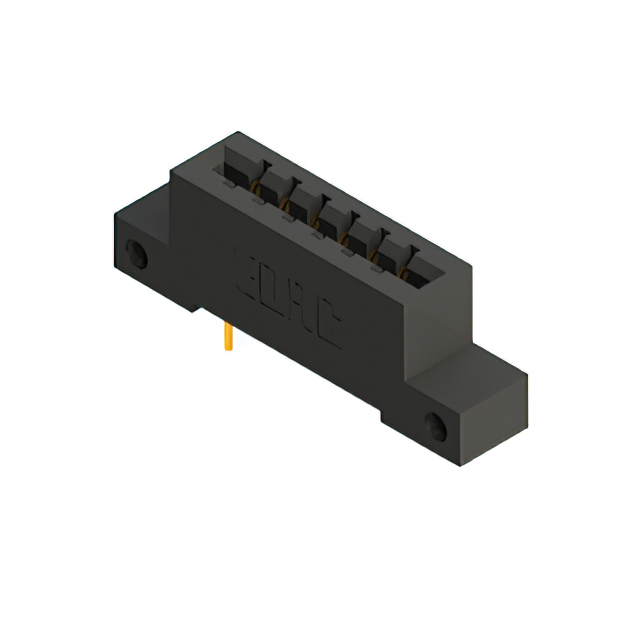

CONN EDGE SGL FMALE 12POS 0.156
| Part | Termination Rows | Material - Insulation | Number of Rows | Termination | Card Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Gender | Read Out | Pitch | Pitch | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Type | Number of Positions/Bay/Row | Number of Positions | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Color | Termination Rows [custom] | Features | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | Solder | Non Specified - Single Edge | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Female | Single | 3.96 mm | 0.156 in | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 12 | 12 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | Solder | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Female | Single | 3.96 mm | 0.156 in | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 12 | 12 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Solder | Non Specified - Dual Edge | 0.128 " | 3.25 mm | Female | Dual | 3.96 mm | 0.156 in | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 6 | 12 | Board Edge Straddle Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 2 | Card Extender | 2 | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | Solder Eyelet(s) | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Female | Single | 3.96 mm | 0.156 in | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 12 | 12 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Solder | Non Specified - Dual Edge | 0.128 " | 3.25 mm | Female | Dual | 3.96 mm | 0.156 in | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 6 | 12 | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 2 | 2 | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Solder | Non Specified - Dual Edge | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Female | Dual | 3.96 mm | 0.156 in | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 6 | 12 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 2 | 2 | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Wire Wrap | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | Female | Dual | 3.96 mm | 0.156 in | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 6 | 12 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 2 | 2 | |||||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | Solder | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | Female | Single | 3.96 mm | 0.156 in | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 12 | 12 | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | |||||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 1 | Solder | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Female | Single | 3.96 mm | 0.156 in | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 12 | 12 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | |||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Solder | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Female | Dual | 3.96 mm | 0.156 in | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 6 | 12 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 2 | 2 |
