1437387 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN TERM STRIP 5CIRC 0.571"

Part	Material Flammability Rating	Mounting Type	Terminal Screw Finish	Material - Insulation	Terminal Screw Material	Operating Temperature	Voltage Rating	Color	Number of Rows [custom]	Pitch	Pitch	Number of Circuits	Number of Wire Entries	Current Rating (Amps)	Barrier Type	Bottom Termination	Terminal Block Type	Top Termination	Wire Gauge [Max]	Wire Gauge [Min]	Number of Circuits [custom]	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors 7-1437387-3	UL94 V-2	Chassis Panel	Chromate Zinc	Nylon 6/6 Polyamide (PA66)	Steel	212 °F	300 VDC	Natural	2	0.571 in	14.5 mm	5	10	65 A	Enclosed	Closed	Eurostyle Terminal Strip	Screws	14 AWG	6 AWG
TE Connectivity AMP Connectors 9-1437387-4	UL94 V-2	Chassis Panel	Chromate Zinc	Nylon 6/6 Polyamide (PA66)	Steel	212 °F	250 V	Natural	2	0.315 in	8 mm	7	14	30 A	Enclosed	Closed	Eurostyle Terminal Strip	Screws	26 AWG	12 AWG
TE Connectivity AMP Connectors 6-1437387-2	UL94 V-2	Chassis Panel	Chromate Zinc	Nylon 6/6 Polyamide (PA66)	Steel	212 °F	300 VDC	Natural	2	0.531 in	13.5 mm	4	8	40 A	Enclosed	Closed	Eurostyle Terminal Strip	Screws	18 AWG	8 AWG

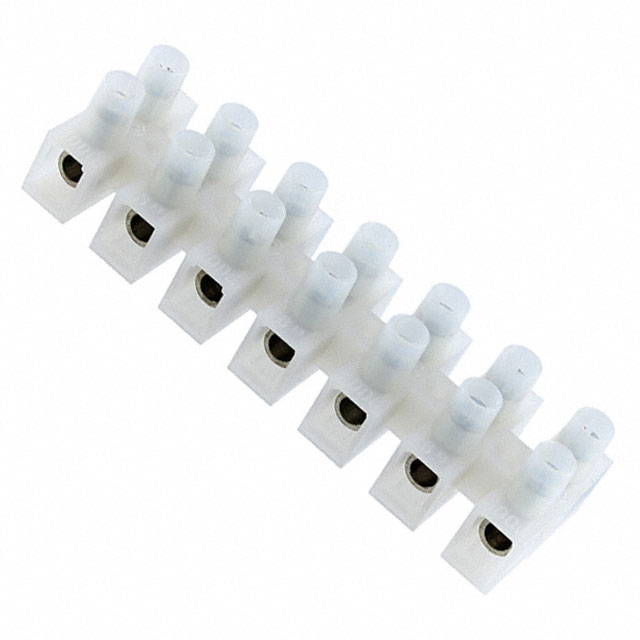

TE Connectivity AMP Connectors 4-1437387-7	UL94 V-2	Chassis Panel	Chromate Zinc	Nylon 6/6 Polyamide (PA66)	Steel	212 °F	250 V	Natural	2	0.472 in	12 mm	7	14	50 A	Enclosed	Closed	Eurostyle Terminal Strip	Screws	22 AWG	8 AWG
TE Connectivity AMP Connectors 6-1437387-3	UL94 V-2	Chassis Panel	Chromate Zinc	Nylon 6/6 Polyamide (PA66)	Steel	212 °F	300 VDC	Natural	2	0.531 in	13.5 mm	8	16	40 A	Enclosed	Closed	Eurostyle Terminal Strip	Screws	18 AWG	8 AWG

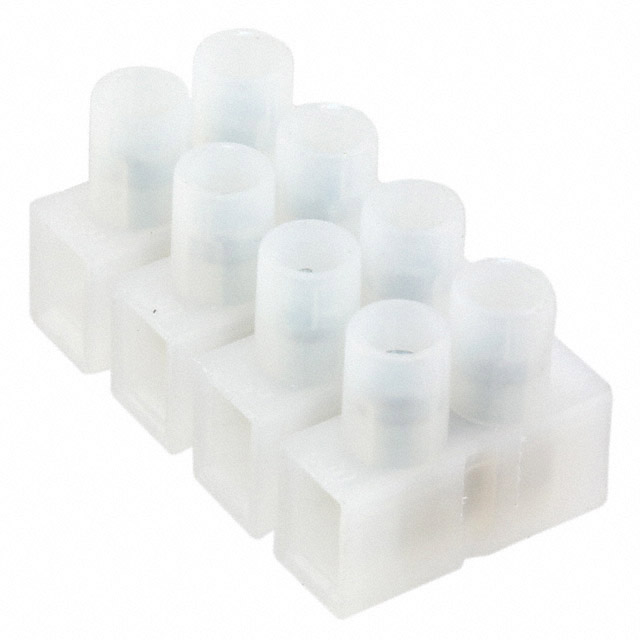

TE Connectivity AMP Connectors 8-1437387-9	UL94 V-2	Chassis Panel	Chromate Zinc	Nylon 6/6 Polyamide (PA66)	Steel	212 °F	250 V	Natural	2	0.315 in	8 mm	4	8	30 A	Enclosed	Closed	Eurostyle Terminal Strip	Screws	26 AWG	12 AWG

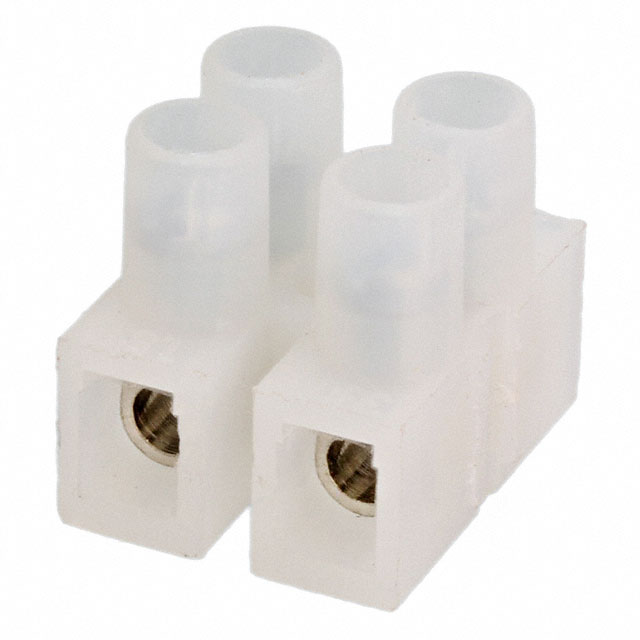

TE Connectivity AMP Connectors 8-1437387-5	UL94 V-2	Chassis Panel	Chromate Zinc	Nylon 6/6 Polyamide (PA66)	Steel	212 °F	250 V	Natural	2	0.315 in	8 mm	2	4	30 A	Enclosed	Closed	Eurostyle Terminal Strip	Screws	26 AWG	12 AWG
TE Connectivity AMP Connectors 7-1437387-5	UL94 V-2	Chassis Panel	Chromate Zinc	Nylon 6/6 Polyamide (PA66)	Steel	212 °F	300 VDC	Natural	2	0.571 in	14.5 mm	6	12	65 A	Enclosed	Closed	Eurostyle Terminal Strip	Screws	14 AWG	6 AWG
TE Connectivity AMP Connectors 5-1437387-3	UL94 V-2	Chassis Panel	Chromate Zinc	Nylon 6/6 Polyamide (PA66)	Steel	212 °F	250 V	Natural	2	0.472 in	12 mm		18	40 A	Enclosed	Closed	Eurostyle Terminal Strip	Screws	22 AWG	10 AWG	9

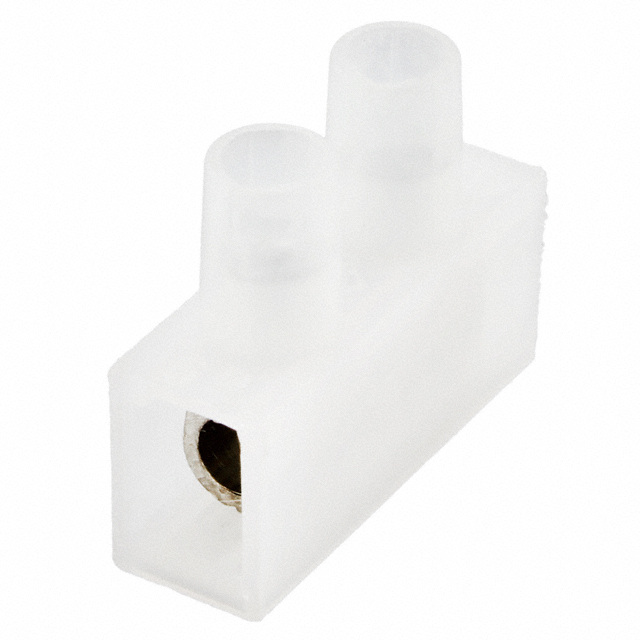

TE Connectivity AMP Connectors 3-1437387-4	UL94 V-2	Chassis Panel	Clear Chromate Zinc	Nylon 6/6 Polyamide (PA66)	Steel		250 V	Natural	2			1	2	40 A	Enclosed	Closed	Eurostyle Terminal Strip	Screws	22 AWG	10 AWG		100 °C	-35 °C
