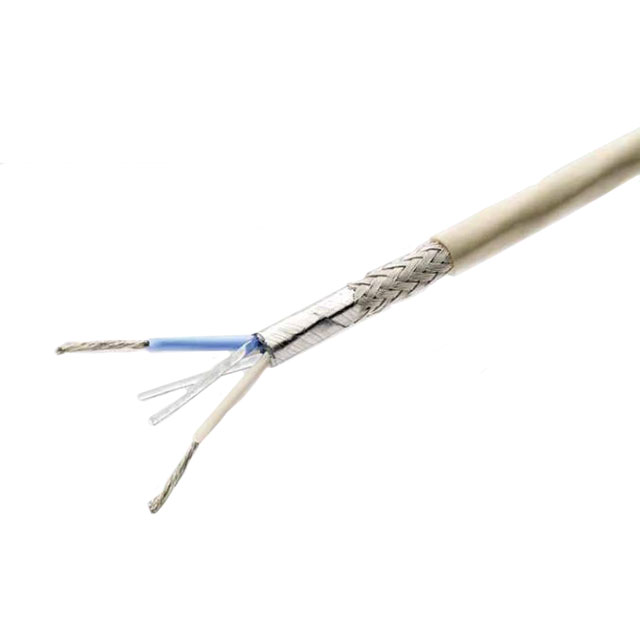

RAYCHEM SPE Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RAYCHEMSPEHIGHSPEEDDIGITAL FEET
| Part | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Spool Size | Spool Size | Shield Material | Conductor Material | Dielectric Material | Shield Coverage | VoP, Velocity of Propagation | Shield Type | Impedance | Jacket Color | Wire Gauge | Length | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1.47 mm | 0.058 in | 150 °C | -65 ░C | 1524 m | 5000 ft | Aluminum Copper Silver Coated | Copper Alloy Silver Coated | Foam Fluorinated Ethylene Propylene (FFEP) | 90 % | 76 | Braid Foil | 100 Ohms | White | 24 AWG | Enter Number of Feet in Order Quantity | Fluorinated Ethylene-Propylene (FEP) | 0.161 " | 4.09 mm | Twinaxial | 19 | 36 AWG | |
 TE Connectivity AMP Connectors | 1.14 mm | 0.045 in | 150 °C | -65 ░C | 1524 m | 5000 ft | Aluminum Copper Silver Coated | Copper Alloy Silver Coated | Foam Fluorinated Ethylene Propylene (FFEP) | 90 % | 76 | Braid Foil | 100 Ohms | White | 26 AWG | Enter Number of Feet in Order Quantity | Fluorinated Ethylene-Propylene (FEP) | 0.135 in | 3.43 mm | Twinaxial | 19 | 38 AWG |
