FM20206V Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
RECEPTACLE, SMT, LOW PROFILE, DU
| Part | Contact Shape | Insulation Material | Contact Material | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Ingress Protection | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Finish - Mating | Number of Rows [custom] | Contact Type | Number of Positions | Insulation Color | Fastening Type | Termination | Insulation Height | Insulation Height | Number of Rows | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

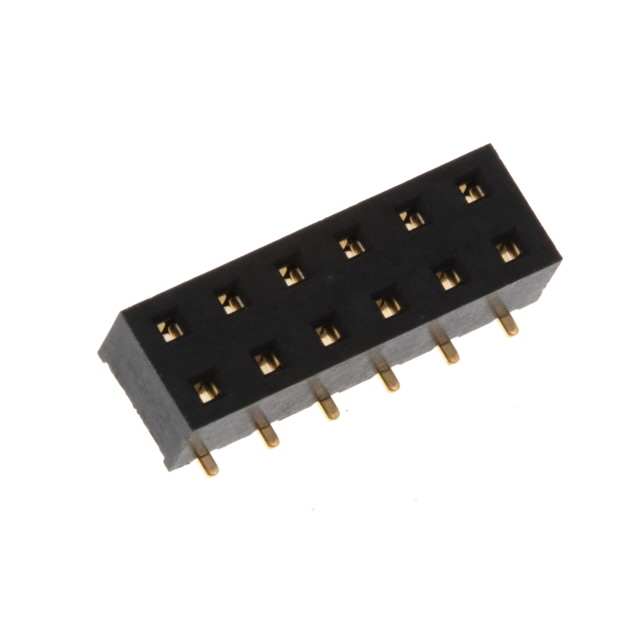

 METZ CONNECT USA Inc. | Square | Nylon 6 Polyamide (PA6) | Copper Alloy | All | 0.1 " | 2.54 mm | IP00 | Receptacle | -40 C | 105 ░C | Surface Mount | Gold | 2 | Female Socket | 12 | Black | Push-Pull | Solder | ||||

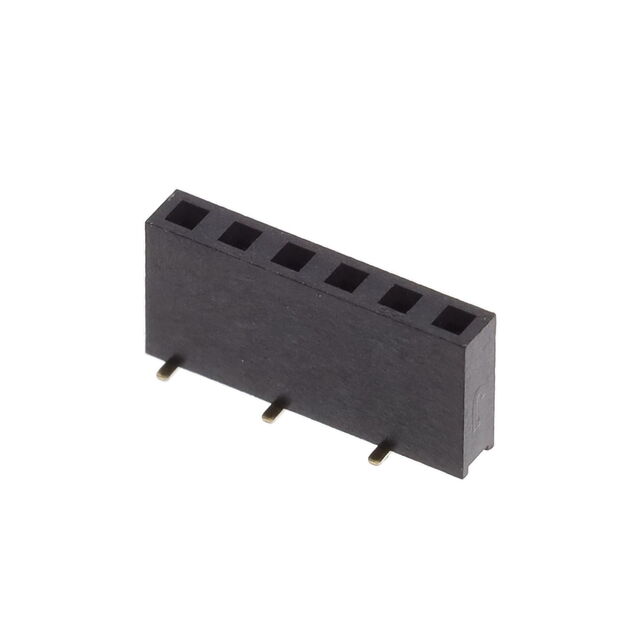

 METZ CONNECT USA Inc. | Square | Polyester Polyethylene Terephthalate (PET) | Copper Alloy | All | 0.1 " | 2.54 mm | IP00 | Receptacle | -40 C | 105 ░C | Surface Mount | Gold | Female Socket | 6 | Black | Push-Pull | Solder | 0.28 in | 7.1 mm | 1 | Flash |
