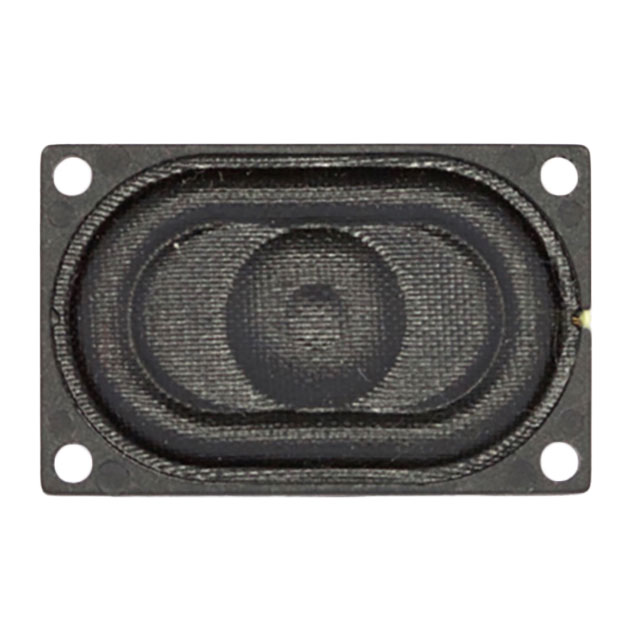

SC Series
Manufacturer: DB Unlimited
Beta
⌘K
SPEAKERS & TRANSDUCERS HIGH TEMP DYNAMIC SPEAKER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Power - Max [Max] | Impedance | Shape | Frequency Range [Max] | Frequency Range [Min] | Material - Cone | Efficiency - Testing | Frequency - Self Resonant | Port Location | Efficiency - Type | Power - Rated | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Technology | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DB Unlimited | 85 °C | -40 C | 1.3 W | 8 Ohms | Rectangular | 20 kHz | 200 Hz | Cloth | 10 cm | 750 Hz | Top | Sound Pressure Level (SPL) | 1 W | 0.244 in | 6.2 mm | General Purpose | 25 mm | 16 mm | 0.984 " | 0.63 " | Magnetic | Wire Leads |
