ANT-W63 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

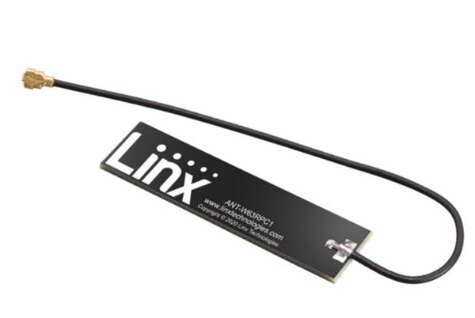

ANTENNA WIFI6 2.4/5/6 GHZ RPC CUT 50
| Part | Applications | Frequency Range [Max] | Frequency Range [Min] | Return Loss | Gain | VSWR | Frequency Group | Power - Max [Max] | Frequency (Center/Band) | Features | Termination | Number of Bands | Mounting Type | RF Family/Standard | Antenna Type | Height (Max) [z] | Height (Max) [z] | Height (Max) [z] | Ingress Protection | Height (Max) [Max] [z] | Features | Height (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 802.11 802.15.4 Bluetooth U-NII Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee | 5.85 GHz 7.125 GHz 2485 MHz | 2.4 GHz 5.15 GHz 5.925 GHz | -12.7 dB -10.9 dB -9 dB | 3.7 dBi 5.9 dBi 6.1 dBi | 1.6 1.8 2.1 | Wide Band | 5 W | 2.4 GHz 5 GHz 6 GHz | Cable - 50mm | Solder | 3 | Adhesive | WiFi | Rigid Patch | 0.051 in | 1.3 mm | |||||

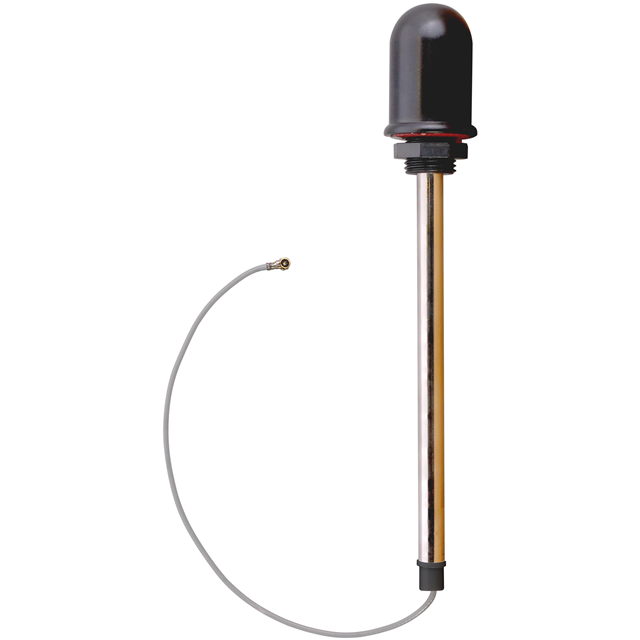

 TE Connectivity AMP Connectors | 802.11 802.15.4 Bluetooth Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee | 5.85 GHz 7.125 GHz 2485 MHz | 2.4 GHz 5.15 GHz 5.925 GHz | -15.6 dB -14 dB -8.5 dB | 4.5 dBic 6.4 dBi | 1.4 1.5 2.2 | SHF UHF | 5 W | 2.4 GHz 5 GHz 6 GHz | MHF4 | 3 | Panel Mount | WiFi | Dome | 27.79 mm | 1.094 in | IP67 | |||||

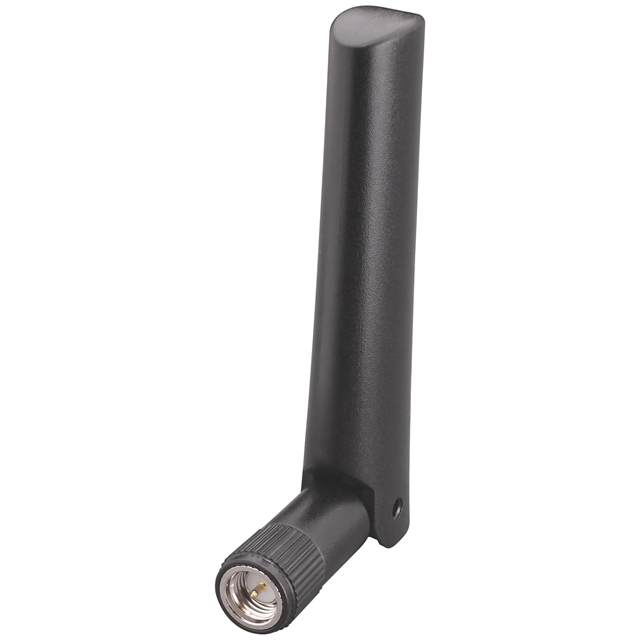

 TE Connectivity AMP Connectors | 802.11 802.15.4 Bluetooth U-NII Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee | 5.85 GHz 7.125 GHz 2485 MHz | 2.4 GHz 5.15 GHz 5.925 GHz | -11.7 dB -8.1 dB | 4.7 dBi 5.8 dB 7.7 dBi | 1.7 2.3 | SHF UHF | 5 W | 2.4 GHz 5 GHz 6 GHz | 3 | Connector Mount | WiFi | Blade Tilt | 85.5 mm | 3.366 in | |||||||

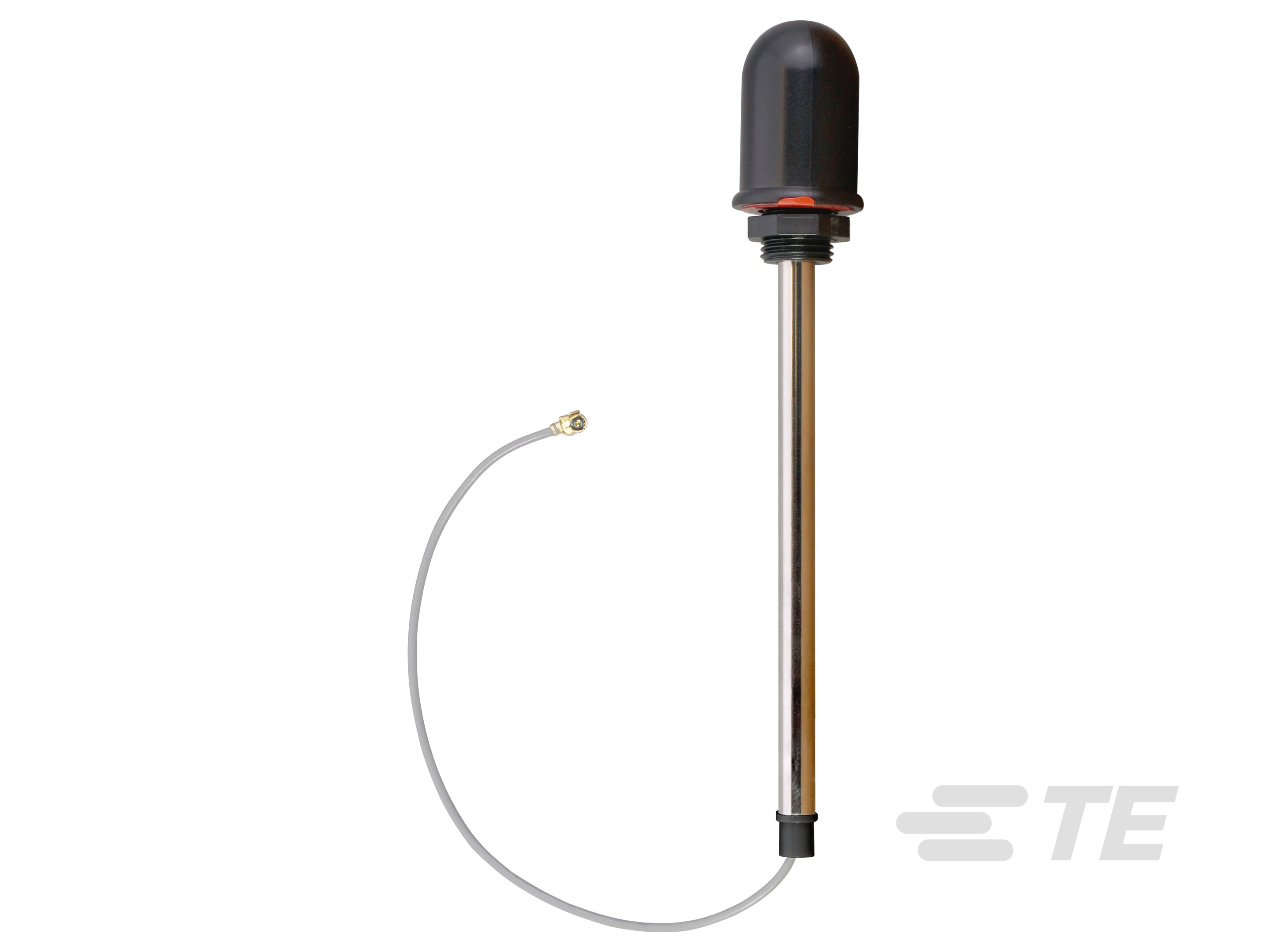

 TE Connectivity AMP Connectors | 802.11 802.15.4 Bluetooth Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee | 5.85 GHz 7.125 GHz 2485 MHz | 2.4 GHz 5.15 GHz 5.925 GHz | -15.6 dB -14 dB -8.5 dB | 4.5 dBic 6.4 dBi | 1.4 1.5 2.2 | SHF UHF | 5 W | 2.4 GHz 5 GHz 6 GHz | U.FL | 3 | Panel Mount | WiFi | Dome | 27.79 mm | 1.094 in | IP67 | |||||

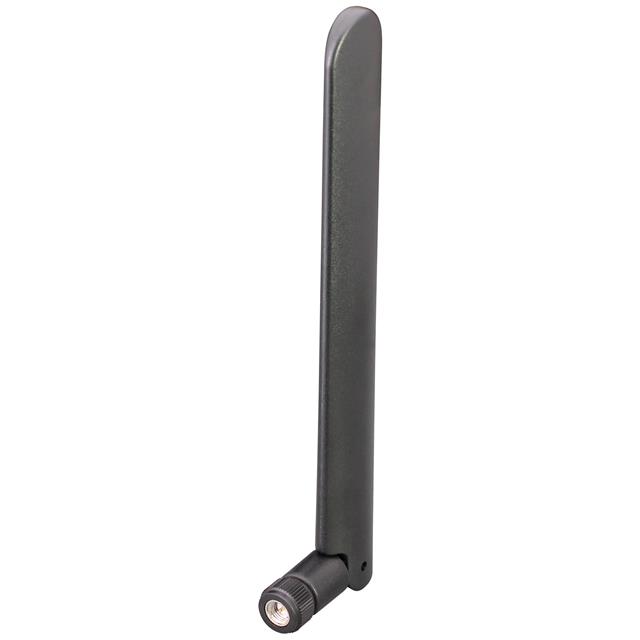

 TE Connectivity AMP Connectors | 802.11 802.15.4 Bluetooth U-NII Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee | 5.85 GHz 7.125 GHz 2485 MHz | 2.4 GHz 5.15 GHz 5.925 GHz | 2.6 dBi 5.5 dBi | 1.2 1.6 1.8 | SHF UHF | 10 W | 2.4425 GHz 5.5 GHz 6525 MHz | RP-SMA Male | 3 | Connector Mount | Blade Tilt | 179.6 mm | 7.071 in | ||||||||
 TE Connectivity AMP Connectors | 802.11ax 802.15.4 Bluetooth Wi-Fi Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E | 2.5 GHz 5.85 GHz 7.125 GHz | 2.4 GHz 5.15 GHz 5.925 GHz | -20.8 dB -7 dB -5.4 dB | 6.1 dBi 6.9 dB | 1.2 2.6 3.3 | Wide Band | 2 W | 2.4 GHz 5 GHz 6 GHz | Cable | I-PEX MHF1 U.FL (UMCC) | 3 | Adhesive | WiFi | Flat Patch | 0.2 mm | 0.01 in | 100 mm | ||||
 TE Connectivity AMP Connectors | 802.11 802.15.4 Bluetooth Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee | 5.85 GHz 7.125 GHz 2485 MHz | 2.4 GHz 5.15 GHz 5.925 GHz | -15.6 dB -14 dB -8.5 dB | 4.5 dBic 6.4 dBi | 1.4 1.5 2.2 | SHF UHF | 5 W | 2.4 GHz 5 GHz 6 GHz | RP-SMA | 3 | Panel Mount | WiFi | Dome | 27.79 mm | 1.094 in | IP67 | |||||
 TE Connectivity AMP Connectors | 5.85 GHz 7.125 GHz 2485 MHz | 2.4 GHz 5.15 GHz 5.925 GHz | -9.5 dB -8.1 dB -7.7 dB | 3.2 dBi 3.4 dBi 4.2 dBi | 2 2.3 2.4 | Wide Band | 5 W | 2.4 GHz 5 GHz 6 GHz | RP-SMA Male | 3 | Connector Mount | WiFi | Tilt/Swivel Whip | 2.835 in | 72 mm | |||||||

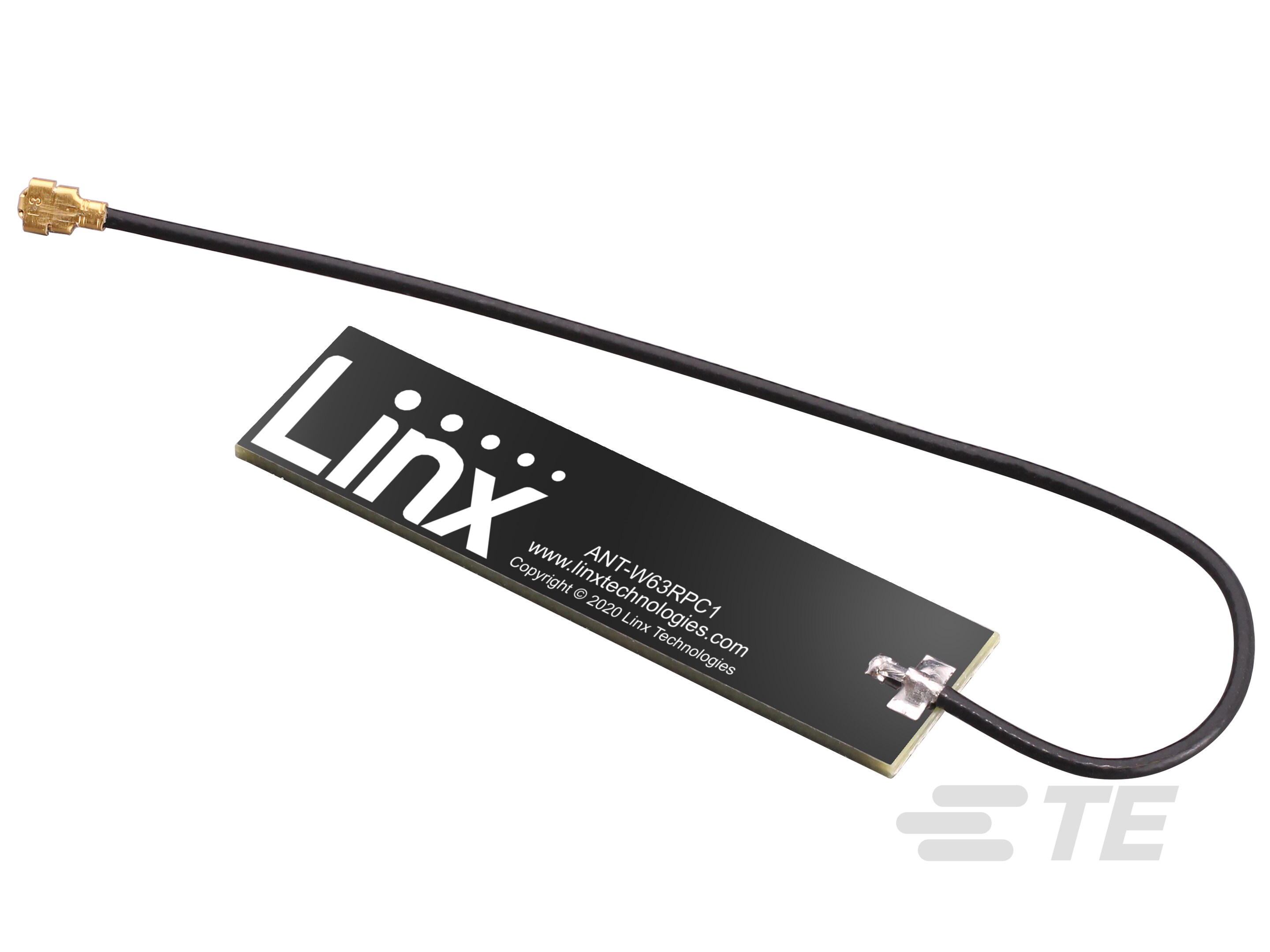

 TE Connectivity AMP Connectors | 802.11 802.15.4 Bluetooth U-NII Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee | 5.85 GHz 7.125 GHz 2485 MHz | 2.4 GHz 5.15 GHz 5.925 GHz | -12.7 dB -10.9 dB -9 dB | 3.7 dBi 5.9 dBi 6.1 dBi | 1.6 1.8 2.1 | Wide Band | 5 W | 2.4 GHz 5 GHz 6 GHz | Cable | MHF4 | 3 | Adhesive | WiFi | Rigid Patch | 0.051 in | 1.3 mm | 100 mm | ||||
 TE Connectivity AMP Connectors | 802.11 802.15.4 Bluetooth U-NII Wi-Fi 4 Wi-Fi 5 Wi-Fi 6 Wi-Fi 6E ZigBee | 5.85 GHz 7.125 GHz 2485 MHz | 2.4 GHz 5.15 GHz 5.925 GHz | -12.7 dB -10.9 dB -9 dB | 3.7 dBi 5.9 dBi 6.1 dBi | 1.6 1.8 2.1 | Wide Band | 5 W | 2.4 GHz 5 GHz 6 GHz | Cable | I-PEX MHF1 U.FL (UMCC) | 3 | Adhesive | WiFi | Rigid Patch | 0.051 in | 1.3 mm | 100 mm |
