IPUSB Series
Manufacturer: PEI-Genesis
Beta
⌘K
CBL USB2.0 B RCPT-A PLUG W/COUPL
| Part | Shielding | Transfer Rate | Wire Gauge | Length [x] | Length [x] | Features | Specifications | Color | Configuration | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Mounting Type | Mounting Feature | Voltage - Rated | Gender | Number of Ports | Ingress Protection | Number of Contacts | Current Rating (Amps) | Mating Cycles | Convert To (Adapter End) | Convert From (Adapter End) | Length | Length | Contact Finish | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 PEI-Genesis | Shielded | 480 Mbps | 24 AWG 28 AWG | 1.64 ft | 500 mm | Data Transfer and Charge Industrial Environments - IP67 Panel Mount | USB 2.0 | Black | B Female to A Male (Circular Coupling) | |||||||||||||||||||
 PEI-Genesis | Unshielded | Circular Threaded Coupling | USB 2.0 | Solder | 80 °C 85 °C | -40 C -20 ░C | USB-B (USB TYPE-B) | Panel Mount Through Hole | Bulkhead - Front Side Nut Bulkhead - Front Side Nut; Vertical | 30 V | Receptacle | 1 | IP67 - Dust Tight Waterproof | 4 | 1.5 A | 1000 | ||||||||||||
 PEI-Genesis | Bulkhead - Front Side Nut Panel Mount | USB-A (USB TYPE-A) Receptacle USB-B (USB TYPE-B) Receptacle | USB-A (USB TYPE-A) Receptacle USB-B (USB TYPE-B) Receptacle | |||||||||||||||||||||||||
 PEI-Genesis | Shielded | 480 Mbps | 24 AWG 28 AWG | Data Transfer and Charge Industrial Environments - IP67 Panel Mount | USB 2.0 | Black | B Male to B Male (Circular Coupling) | 1 m | 3.28 ft | |||||||||||||||||||
PEI-Genesis | Shielded | 480 Mbps | 24 AWG 28 AWG | 1.64 ft | 500 mm | Data Transfer and Charge Industrial Environments - IP67 Panel Mount | USB 2.0 | Black | B Female to A Male (Circular Coupling) | |||||||||||||||||||

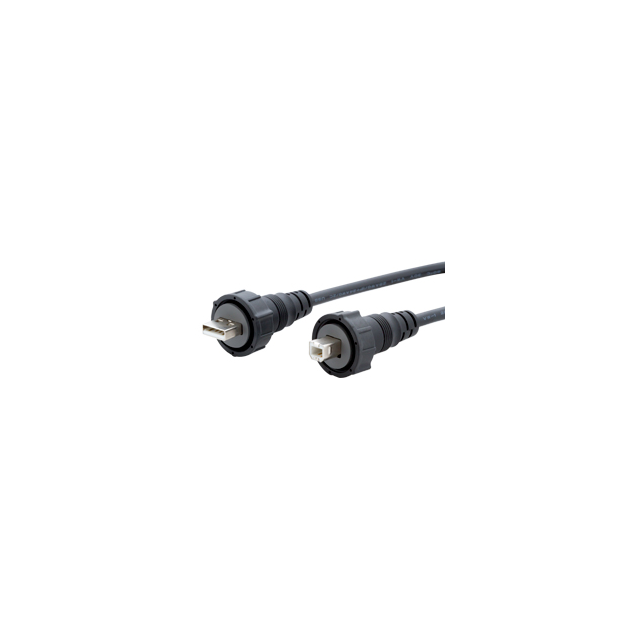

 PEI-Genesis | Shielded | 480 Mbps | 24 AWG 28 AWG | Data Transfer and Charge Industrial Environments - IP67 Panel Mount | USB 2.0 | Black | A Male to B Male (Circular Coupling) | 2 m | 6.56 ft | |||||||||||||||||||
 PEI-Genesis | Bulkhead - Front Side Nut Panel Mount | USB-A (USB TYPE-A) Receptacle | USB-A (USB TYPE-A) Receptacle | |||||||||||||||||||||||||
PEI-Genesis | Circular Threaded Coupling | USB 2.0 | Solder | 85 °C | -40 C | USB-B (USB TYPE-B) | Panel Mount Through Hole | Bulkhead - Front Side Nut | Receptacle | 1 | IP67 - Dust Tight Waterproof | 4 | Gold | Black | ||||||||||||||
 PEI-Genesis | Shielded | 480 Mbps | 24 AWG 28 AWG | 1.64 ft | 500 mm | Data Transfer and Charge Industrial Environments - IP67 Panel Mount | USB 2.0 | Black | A Female to A Male (Circular Coupling) | |||||||||||||||||||
PEI-Genesis | Bulkhead - Front Side Nut Panel Mount | USB-A (USB TYPE-A) Receptacle | USB-A (USB TYPE-A) Receptacle |
