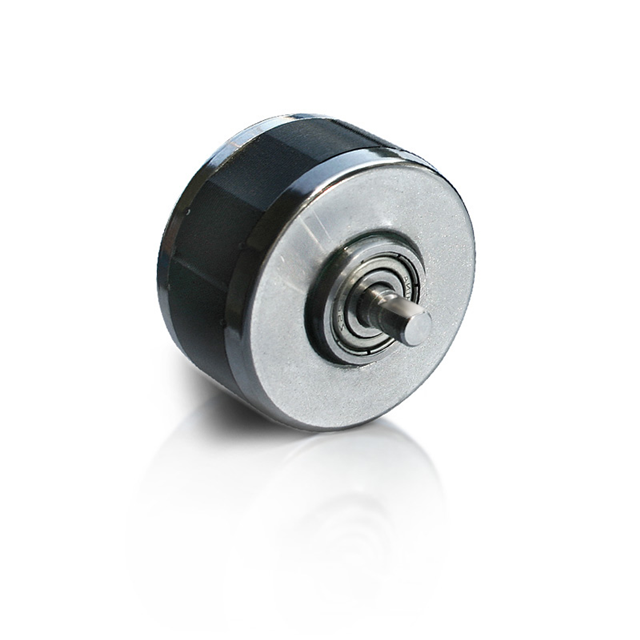

WO-3809V Series
Manufacturer: Lin Engineering
Beta
⌘K
STEPPER MOTOR
| Part | Rotor Inertia | Step Angle | Coil Type | Steps per Revolution | Termination Style | NEMA Frame Size | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [diameter] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Features | Operating Temperature [Min] | Operating Temperature [Max] | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Voltage - Rated | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lin Engineering | 0.308 gcm² | 0.9 ° | Bipolar | 400 | Wire Leads | 14 | 113 mNm | 16 oz-in | 1.429 " | Round | 36.3 mm | 0.197 in | 5 mm | Round Shaft | -20 ░C | 50 °C | 15 mm | 0.591 in | 24 VDC | 600 mA |
