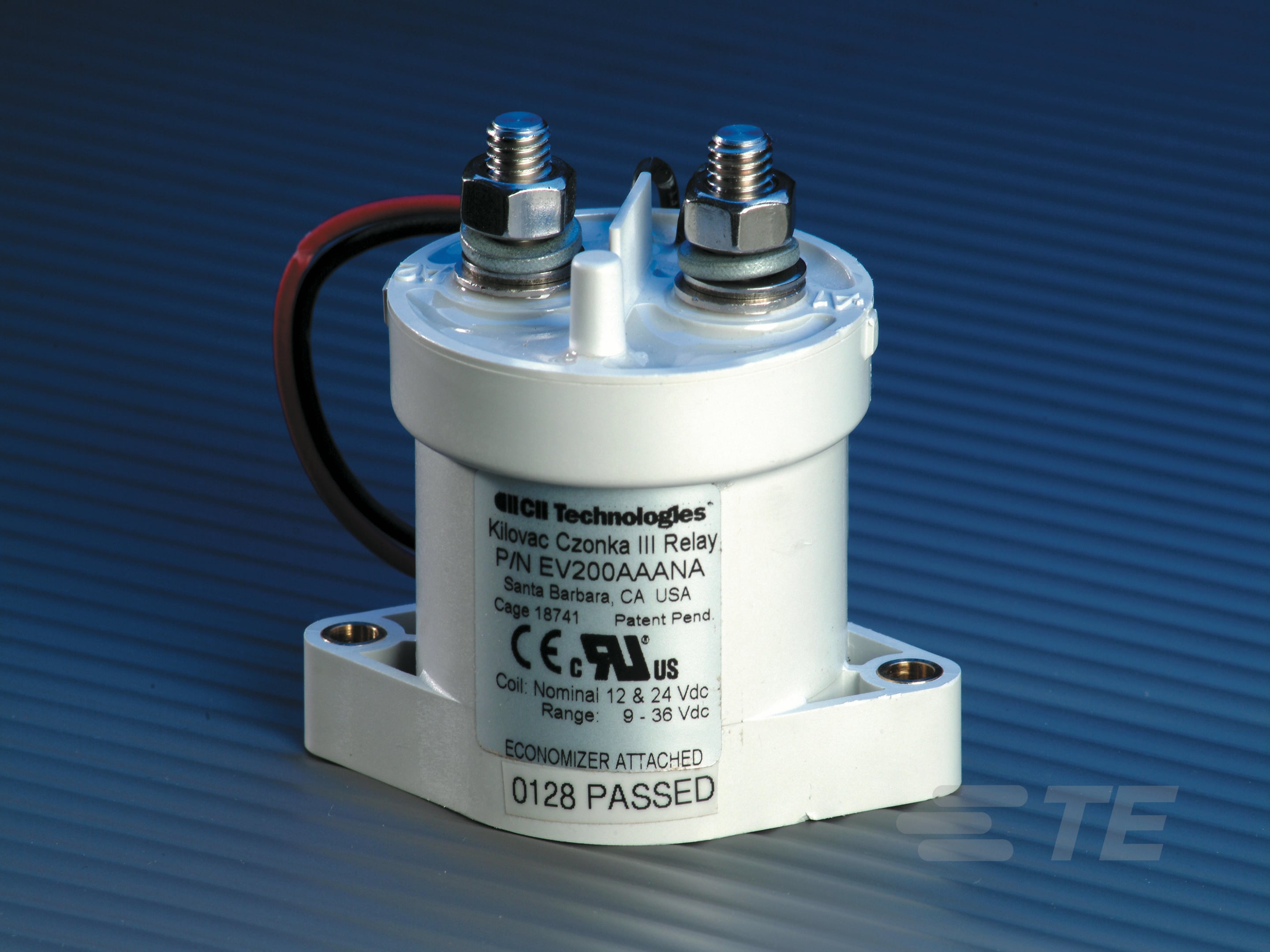

Kilovac EV200 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

EV200A3ANA=RELAY, EV200, SPST-

Part	Contact Material	Switching Voltage [Max]	Mounting Type	Coil Type	Termination Style	Contact Rating (Current)	Release Time	Operate Time	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Approval Agency	Seal Rating	Coil Current	Must Release Voltage	Coil Voltage [Min]	Coil Voltage [Max]	Features	Must Operate Voltage	Coil Voltage	Coil Resistance
TE Connectivity AMP Connectors 1618002-4
TE Connectivity AMP Connectors EV200H2ANA	Copper	900 VDC	Chassis Mount	Non Latching	Stud	500 A	12 ms	15 ms	General Purpose	85 °C	-40 C	SPST-NO (DM) (1 Form X)	CE cURus UL	Sealed - Hermetically
TE Connectivity AMP Connectors EV200ADANA		900 VDC	Chassis Mount		Stud Wire Leads	500 A	12 ms	15 ms		85 °C	-40 C	SPST-NO (DM) (1 Form X)			0.03 A	18 VDC	32 VDC	95 VDC	Sealed - Hermetically	32 VDC
TE Connectivity AMP Connectors EV200H1ANA		900 VDC	Chassis Mount		Stud Wire Leads	500 A				85 °C	-40 C	SPST-NO (DM) (1 Form X)				6 VDC	9 VDC	36 VDC	Sealed - Hermetically	9 VDC
TE Connectivity AMP Connectors EV200A2ANA		900 VDC	Chassis Mount		Stud Wire Leads	500 A	12 ms	15 ms		85 °C	-40 C	SPST-NO (DM) (1 Form X)			0.03 A	18 VDC	32 VDC	95 VDC	Requires External Economizer Sealed - Hermetically	32 VDC
TE Connectivity AMP Connectors EV200HDANA		900 VDC	Chassis Mount		Stud Wire Leads	500 A	12 ms	15 ms		85 °C	-40 C	SPST-NO (DM) (1 Form X)			0.03 A	18 VDC	32 VDC	95 VDC	Sealed - Hermetically	32 VDC
TE Connectivity AMP Connectors 7-1618401-8		900 VDC	Chassis Mount		Stud Wire Leads	500 A				85 °C	-40 C	SPST-NO (DM) (1 Form X)							Sealed - Hermetically	9 VDC	12 VDC
TE Connectivity AMP Connectors 1-1618002-7	Copper	900 VDC	Chassis Mount	Non Latching	Stud	500 A	12 ms	15 ms	General Purpose	85 °C	-40 C	SPST-NO (DM) (1 Form X)	CE cURus UL	Sealed - Hermetically		27 VDC	48 VDC	95 VDC		48 VDC		100 Ohms
TE Connectivity AMP Connectors EV200AJANA		900 VDC	Chassis Mount		Stud Wire Leads	500 A	12 ms	15 ms		85 °C	-40 C	SPST-NO (DM) (1 Form X)			0.02 A	27 VDC	48 VDC	95 VDC	Sealed - Hermetically	48 VDC
TE Connectivity AMP Connectors 1618414-5
