NB6L14M Series

Clock / Data Fanout Buffer, 1:4 AnyLevel™ Input, LVDS, 2.5 V

Catalog

Clock / Data Fanout Buffer, 1:4 AnyLevel™ Input, LVDS, 2.5 V

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Circuits	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Frequency - Max [Max]	Type	Output	Ratio - Input:Output	Mounting Type	Function	Supplied Contents	Contents	Input
ON Semiconductor NB6L14MMNG	3.63 V	2.375 V	1	16-QFN (3x3)	85 °C	-40 °C	16-VFQFN Exposed Pad	3 GHz	Fanout Buffer (Distribution)	CML	1:4	Surface Mount

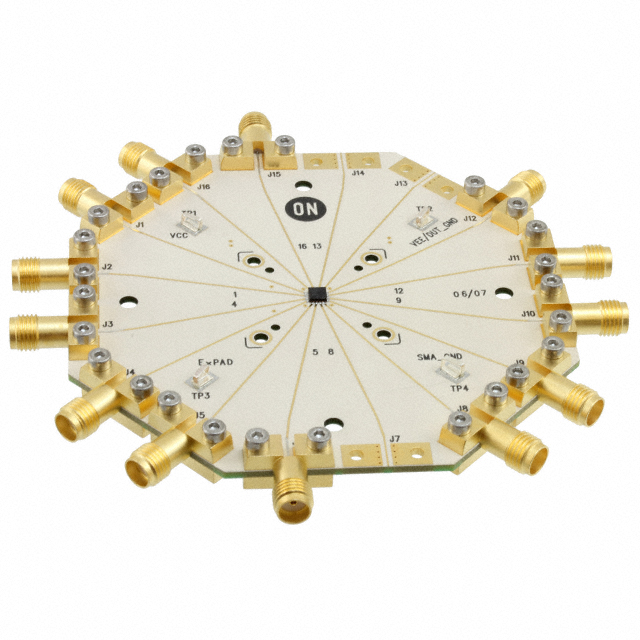

ON Semiconductor NB6L14MNGEVB									Timing				Clock Buffer	Board(s)	Board(s)
ON Semiconductor NB6L14SMNG	2.625 V	2.375 V	1	16-QFN (3x3)	85 °C	-40 °C	16-VFQFN Exposed Pad	2 GHz	Fanout Buffer (Distribution) Translator	LVDS	1:4	Surface Mount				CML HSCL LVDS LVPECL

Catalog

Clock / Data Fanout Buffer, 1:4 AnyLevel™ Input, LVDS, 2.5 V

Key Features

• Maximum Input Clock Frequency > 2.0 GHz

• Maximum Input Data Rate > 2.5 Gbps

• 1ps Maximum of RMS Clock Jitter

• 120ps Typical Rise and Fall Times

• VREFAC Reference Output

Description

The NB6L14S is a differential 1:4 Clock or Data Receiver and will accept AnyLevel differential input signals: LVPECL, CML, LVDS, or HCSL. These signals will be translated to LVDS and four identical copies of Clock or Data will be distributed, operating up to 2.0GHz or 2.5Gbps, respectively. As such, the NB6L14S is ideal for SONET, GigE, Fiber Channel, Backplane and other Clock or Data distribution applications. The NB6L14S has a wide input common mode range from GND plus 50mV to VCC-50mV. Combined with the 50-ohm internal termination resistors at the inputs, the NB6L14S is ideal for translating a variety of differential or single-ended Clock or Data signals to 350mV typical LVDS output levels. The NB6L14S is the 2.5V version of the NB6N14S and is offered in a small 3mm x 3mm 16-QFN package. Application notes, models, and support documentation are available at www.onsemi.com. The NB6L14S is a member of the ECLinPS MAX family of high performance products.
