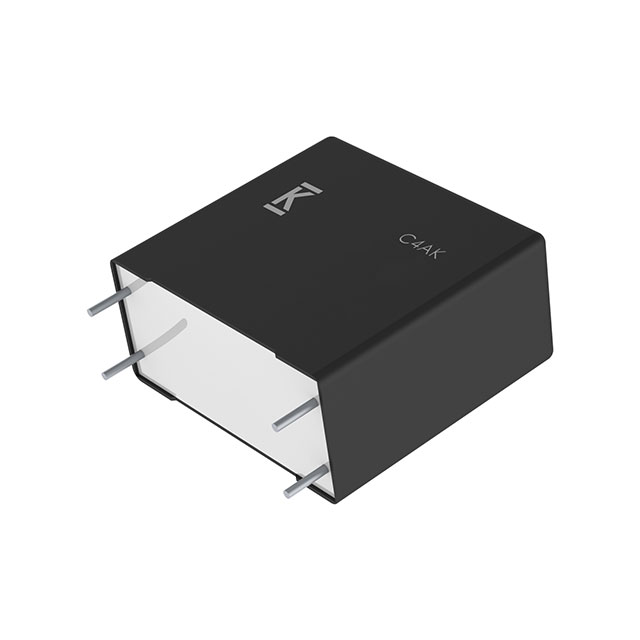

C4AK Series
Manufacturer: KEMET
Beta
⌘K
FILM CAPACITORS 700V 12 UF 135C 5% 2 PIN LS=27.5 MM AEC-Q200
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Lead Spacing | Lead Spacing | Applications | Ratings | Tolerance | Capacitance | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | ESR (Equivalent Series Resistance) | Package / Case | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 37.7 mm | 1.484 in | 0.866 in | 1.26 in | 32 mm | 22 mm | 27.5 mm | 1.083 in | Automotive DC Filtering DC Link | AEC-Q200 | 5 % | 12.5 µF | Polypropylene (PP) Metallized | -55 C | 135 °C | 700 VDC | 6.1 mOhm | Radial | Through Hole | PC Pins |
