L117DE Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN D-SUB RCPT 9POS IDC

Part	Contact Material	Voltage Rating	Wire Gauge	Dielectric Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Connector Style	Contact Type	Mounting Type	Number of Positions	Features	Material Flammability Rating	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows [custom]	Contact Finish	Flange Feature
Amphenol ICC (Commercial Products) L117DEFRAA09S	Phosphor Bronze	250 V	26 AWG	Thermoplastic Glass Filled	Black	125 °C	-40 C	5 A	D-Sub	Signal	Free Hanging (In-Line)	9	Feed Through Strain Relief	UL94 V-0	Nickel Plated Steel	0.38 µm	15 µin	Receptacle Female Sockets	IDC Ribbon Cable	1	DE E	2	Gold	Mating Side Female Screwlock (M3)

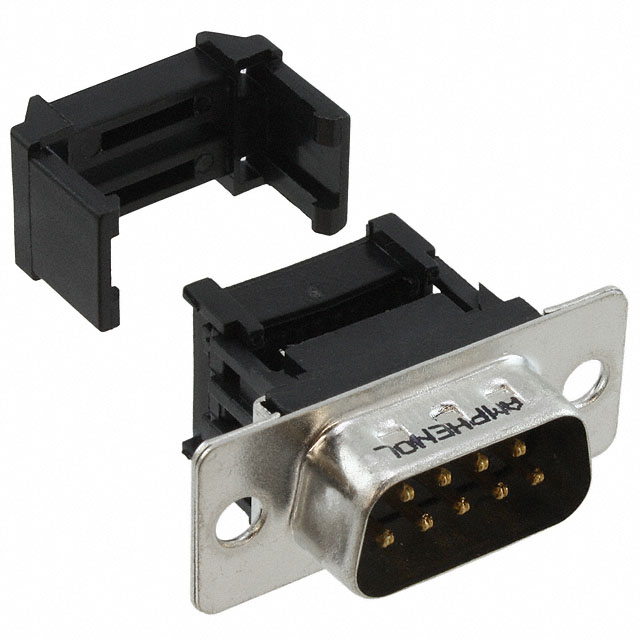

Amphenol ICC (Commercial Products) L117DEFRA09P	Brass	250 V	26 AWG	Thermoplastic Glass Filled	Black	105 ░C	-55 C	3 A	D-Sub	Signal	Free Hanging (In-Line)	9	Feed Through Grounding Indents Strain Relief	UL94 V-0		0.38 µm	15 µin	Plug Male Pins	IDC Ribbon Cable	1	DE E	2	Gold	Housing/Shell (Unthreaded)
Amphenol ICC (Commercial Products) L117DEFRDA09P	Brass	250 V	26 AWG	Thermoplastic Glass Filled	Black	105 ░C	-55 C	3 A	D-Sub	Signal	Free Hanging (In-Line)	9	Feed Through Grounding Indents Strain Relief	UL94 V-0		0.38 µm	15 µin	Plug Male Pins	IDC Ribbon Cable	1	DE E	2	Gold	Cable Side (4-40)
Amphenol ICC (Commercial Products) L117DEFRDA09S	Brass	250 V	26 AWG	Thermoplastic Glass Filled	Black	105 ░C	-55 C	3 A	D-Sub	Signal	Free Hanging (In-Line)	9	Feed Through Strain Relief	UL94 V-0		0.38 µm	15 µin	Receptacle Female Sockets	IDC Ribbon Cable	1	DE E	2	Gold	Cable Side (4-40)
Amphenol ICC (Commercial Products) L117DEFRB09P	Brass	250 V	26 AWG	Thermoplastic Glass Filled	Black	105 ░C	-55 C	3 A	D-Sub	Signal	Free Hanging (In-Line)	9	Feed Through Grounding Indents Strain Relief	UL94 V-0	Nickel Plated Steel	0.38 µm	15 µin	Plug Male Pins	IDC Ribbon Cable	1	DE E	2	Gold	Housing/Shell (Unthreaded)

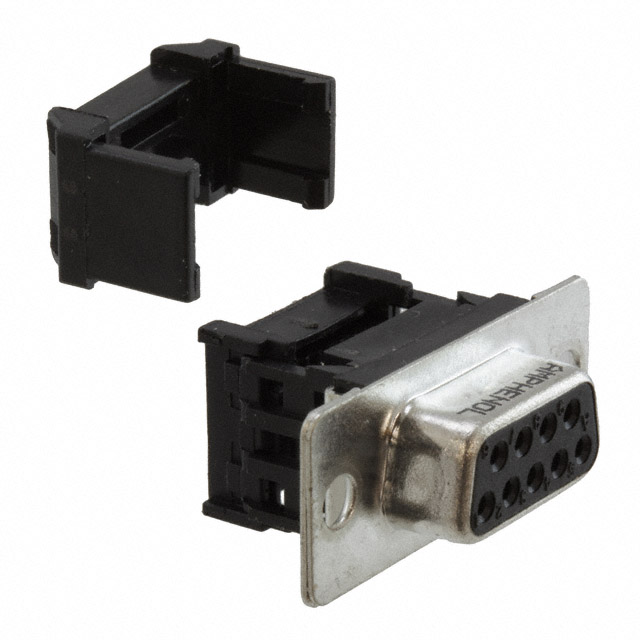

Amphenol ICC (Commercial Products) L117DEFRA09S	Brass	250 V	26 AWG	Thermoplastic Glass Filled	Black	105 ░C	-55 C	3 A	D-Sub	Signal	Free Hanging (In-Line)	9	Feed Through Strain Relief	UL94 V-0		0.38 µm	15 µin	Receptacle Female Sockets	IDC Ribbon Cable	1	DE E	2	Gold	Housing/Shell (Unthreaded)

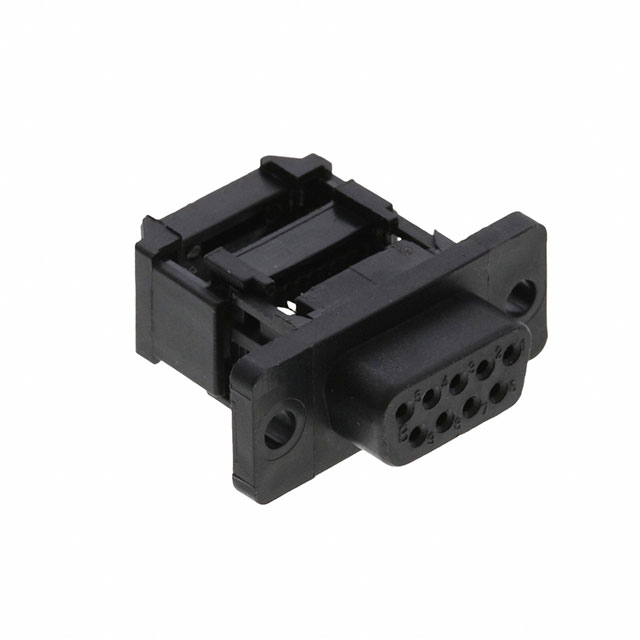

Amphenol ICC (Commercial Products) L117DEFRB09S	Brass	250 V	26 AWG	Thermoplastic Glass Filled	Black	105 ░C	-55 C	3 A	D-Sub	Signal	Free Hanging (In-Line)	9	Feed Through Strain Relief	UL94 V-0	Plastic	0.38 µm	15 µin	Receptacle Female Sockets	IDC Ribbon Cable	1	DE E	2	Gold	Housing/Shell (Unthreaded)
Amphenol ICC (Commercial Products) L117DEFRCA09S	Phosphor Bronze	250 V	26 AWG	Thermoplastic Glass Filled	Black	125 °C	-40 C	5 A	D-Sub	Signal	Free Hanging (In-Line)	9	Feed Through Strain Relief	UL94 V-0	Nickel Plated Steel	0.38 µm	15 µin	Receptacle Female Sockets	IDC Ribbon Cable	1	DE E	2	Gold	4-40 Mating Side Female Screwlock
Amphenol ICC (Commercial Products) L117DEFRAA09P	Brass	250 V	26 AWG	Thermoplastic Glass Filled	Black	125 °C	-40 C	5 A	D-Sub	Signal	Free Hanging (In-Line)	9	Feed Through Grounding Indents Strain Relief	UL94 V-0	Nickel Plated Steel	0.38 µm	15 µin	Plug Male Pins	IDC Ribbon Cable	1	DE E	2	Gold	Mating Side Female Screwlock (M3)
Amphenol ICC (Commercial Products) L117DEFRCA09P	Brass	250 V	26 AWG	Thermoplastic Glass Filled	Black	125 °C	-40 C	5 A	D-Sub	Signal	Free Hanging (In-Line)	9	Feed Through Grounding Indents Strain Relief	UL94 V-0	Nickel Plated Steel	0.38 µm	15 µin	Plug Male Pins	IDC Ribbon Cable	1	DE E	2	Gold	4-40 Mating Side Female Screwlock
