MACX MCR Series
Manufacturer: Phoenix Contact
Beta
⌘K

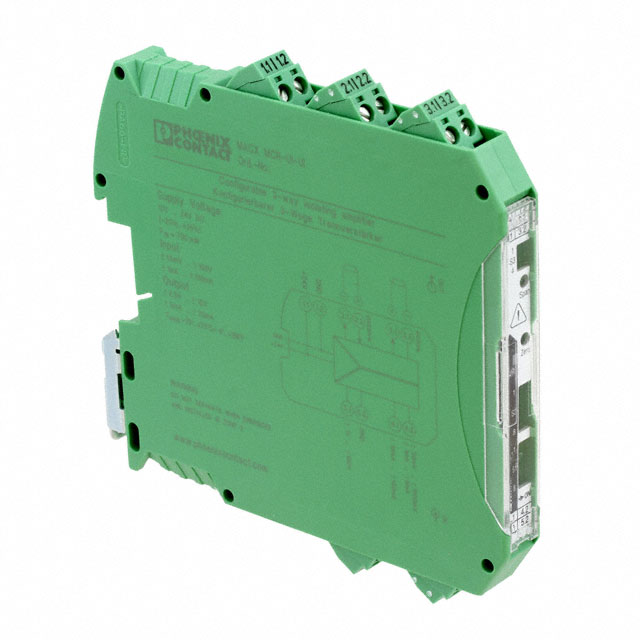

TERMINAL BLOCK INTERFACE MODULES MACX MCR-UI-UI-NC
| Part | Output Range [Max] | Output Range [Min] | Output Type | Mounting Type | Input Type | Type | Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Termination Style | Input Range (Current, Voltage) [Min] | Input Range (Current, Voltage) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 10 VDC 20 mA | 0 mA 0 VDC | Current Voltage | DIN Rail | Current Voltage | Signal Conditioner | 2500 V | -20 ░C | 70 °C | 24 V | 12 VDC | Spring Terminal | -100 mA -100 V | 100 V 100 mA |
 Phoenix Contact | 20 mA | 0 mA | Current | DIN Rail | Current | -40 C | 85 °C | Screw Terminal | 0 mA | 20 mA | ||||
 Phoenix Contact | Temperature Transducer |
