PT06CE Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLUG MALE 4POS GOLD CRIMP

Part	Applications	Contact Material	Insert Material	Backshell Material, Plating	Number of Positions	Orientation	Primary Material	Connector Type	Ingress Protection	Shielding	Contact Finish - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Mounting Type	Shell Material	Shell Size - Insert Width	Shell Size - Insert Length	Features	Termination	Color	Shell Finish	Qualification	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Contact Type	Contact Size	Housing Color	Type	Note	Contact Shape

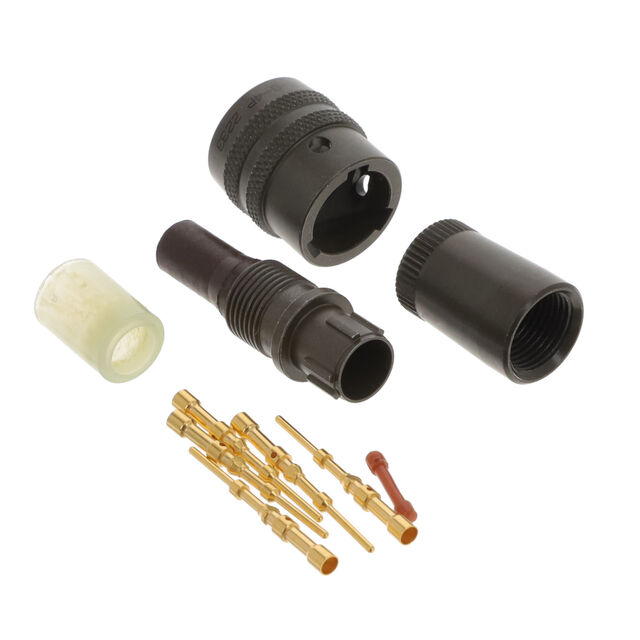

Amphenol Aerospace Operations PT06CE-8-4P	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Neoprene	Aluminum Olive Drab Cadmium	4	N (Normal)	Metal	Male Pins Plug	Environment Sealed	Unshielded	Gold	125 °C	-55 °C	Bayonet Lock	Free Hanging (In-Line)	Aluminum	4 mm	8 mm	Backshell Coupling Nut	Crimp	Olive Drab	Cadmium Olive Drab Chromate

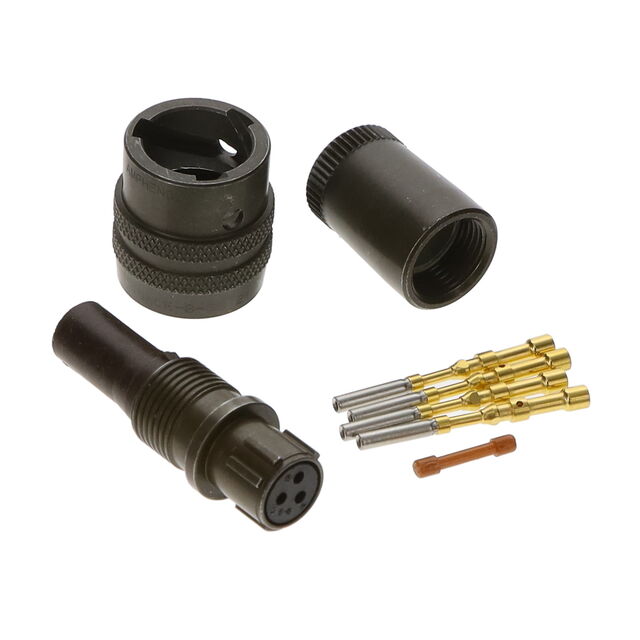

Amphenol Aerospace Operations PT06CE-8-3S	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Neoprene	Aluminum Olive Drab Cadmium	3	N (Normal)	Metal	Female Sockets Plug	Environment Sealed	Unshielded	Gold	125 °C	-55 °C	Bayonet Lock	Free Hanging (In-Line)	Aluminum	3 mm	8 mm	Backshell Coupling Nut	Crimp	Olive Drab	Cadmium Olive Drab Chromate
Amphenol Aerospace Operations PT06CE-8-4P	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Neoprene	Aluminum Olive Drab Cadmium	4	N (Normal)	Metal	Male Pins Plug	Environment Sealed	Unshielded	Gold	125 °C	-55 °C	Bayonet Lock	Free Hanging (In-Line)	Aluminum	4 mm	8 mm	Backshell Coupling Nut	Crimp	Olive Drab	Cadmium Olive Drab Chromate	MIL-DTL-26482 Series I
Amphenol Aerospace Operations PT06CE-14-19PY(SR)	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Neoprene	Aluminum Olive Drab Cadmium	19	Y	Metal	Male Pins Plug	Environment Resistant	Unshielded	Gold	125 °C	-55 °C	Bayonet Lock	Free Hanging (In-Line)	Aluminum			Strain Relief	Crimp	Olive Drab	Cadmium Olive Drab Chromate	MIL-DTL-26482 Series I	19	14 S
Amphenol Aerospace Operations PT06CE-14-19S	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Neoprene	Aluminum Olive Drab Cadmium	19	N (Normal)	Metal	Female Sockets Plug	Environment Sealed	Unshielded	Gold	125 °C	-55 °C	Bayonet Lock	Free Hanging (In-Line)	Aluminum			Backshell Coupling Nut	Crimp	Olive Drab	Cadmium Olive Drab Chromate	MIL-DTL-26482 Series I	19	14 S
Amphenol Aerospace Operations PT06CE-8-3S	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Neoprene	Aluminum Olive Drab Cadmium	3	N (Normal)	Metal	Female Sockets Plug	Environment Sealed	Unshielded	Gold	125 °C	-55 °C	Bayonet Lock	Free Hanging (In-Line)	Aluminum	3 mm	8 mm	Backshell Coupling Nut	Crimp	Olive Drab	Cadmium Olive Drab Chromate	MIL-DTL-26482 Series I
Amphenol Aerospace Operations PT06CE-10-98SXLC			Neoprene		6	X		Plug Housing	Environment Resistant	Unshielded		125 °C	-55 °C	Bayonet Lock	Free Hanging (In-Line)	Aluminum			Backshell Coupling Nut			Cadmium Chromate	MIL-DTL-26482 Series I	98	10	Crimp	20	Olive Drab	For Female Sockets	Contacts Not Included	Circular
Amphenol Aerospace Operations PT06CE-14-19S
