UTS6F Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLUG HSG MALE 4POS INLINE

Part	Mounting Type	Housing Color	Connector Type	Contact Type	Shell Size - Insert Length	Shell Size - Insert Width	Shielding	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Operating Temperature (Min)	Operating Temperature (Max)	Features	Contact Size	Fastening Type	Type	Note	Number of Positions	Position Types	Contact Shape	Material Flammability Rating	Shell Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Insert Material	Primary Material	Current Rating	Contact Material	Termination	Contact Finish - Mating	Backshell Material, Plating	Applications	Contact Finish Thickness - Mating	Color	Voltage Rating
Amphenol Aerospace Operations UTS6FC124P	Free Hanging (In-Line)	Black	Plug Housing	Crimp	12 mm	4 mm	Unshielded	N (Normal)	Dust Tight Water Resistant Waterproof	IP68 IP69K	-40 °C	105 °C	Backshell Coupling Nut	16 S	Bayonet Lock	For Male Pins	Contacts Not Included	4	PE	Circular	UL94 V-0	Thermoplastic
Amphenol Aerospace Operations UTS6FC1823S	Free Hanging (In-Line)	Black	Plug Housing	Crimp			Unshielded	N (Normal)	Dust Tight Water Resistant Waterproof	IP68 IP69K	-40 °C	105 °C	Backshell Coupling Nut	16 S	Bayonet Lock	For Female Sockets	Contacts Not Included	23		Circular	UL94 V-0	Thermoplastic	23	18
Amphenol Aerospace Operations UTS6FC14E5S	Free Hanging (In-Line)		Female Sockets Plug		14 mm	5 mm	Unshielded	N (Normal)	Dust Tight Water Resistant Waterproof	IP68 IP69K	-40 °C	105 °C	Backshell Conduit Adapter Coupling Nut UV Resistant		Bayonet Lock			5			UL94 HB	Nylon Polyamide (PA)			Polychloroprene	Plastic	12 A	Brass	Solder Cup	Gold	Nylon Polyamide (PA)	Energy Instrumentation Lighting Telecommunications	16 µin	Black	600 V
Amphenol Aerospace Operations UTS6FC12E3P	Free Hanging (In-Line)		Male Pins Plug		12 mm	3 mm	Unshielded	N (Normal)	Dust Tight Water Resistant Waterproof	IP68 IP69K	-40 °C	105 °C	Backshell Conduit Adapter Coupling Nut UV Resistant		Bayonet Lock			3			UL94 HB	Nylon Polyamide (PA)			Polychloroprene	Plastic	13 A	Brass	Solder Cup	Gold	Nylon Polyamide (PA)	Energy Instrumentation Lighting Telecommunications	16 µin	Black	600 V
Amphenol Aerospace Operations UTS6FC12E14P	Free Hanging (In-Line)		Male Pins Plug				Unshielded	N (Normal)	Dust Tight Water Resistant Waterproof	IP68 IP69K	-40 °C	105 °C	Backshell Conduit Adapter Coupling Nut UV Resistant		Bayonet Lock			14			UL94 HB	Nylon Polyamide (PA)	14	12	Polychloroprene	Plastic	4.5 A	Brass	Solder Cup	Gold	Nylon Polyamide (PA)	Energy Instrumentation Lighting Telecommunications	16 µin	Black	250 V
Amphenol Aerospace Operations UTS6FC1832S	Free Hanging (In-Line)	Black	Plug Housing	Crimp			Unshielded	N (Normal)	Dust Tight Water Resistant Waterproof	IP68 IP69K	-40 °C	105 °C	Backshell Coupling Nut	20	Bayonet Lock	For Female Sockets	Contacts Not Included	32		Circular	UL94 V-0	Thermoplastic	32	18
Amphenol Aerospace Operations UTS6FC12E8P	Free Hanging (In-Line)		Male Pins Plug		12 mm	8 mm	Unshielded	N (Normal)	Dust Tight Water Resistant Waterproof	IP68 IP69K	-40 °C	105 °C	Backshell Conduit Adapter Coupling Nut UV Resistant		Bayonet Lock			8			UL94 HB	Nylon Polyamide (PA)			Polychloroprene	Plastic	4.5 A	Brass	Solder Cup	Gold	Nylon Polyamide (PA)	Energy Instrumentation Lighting Telecommunications	16 µin	Black	250 V

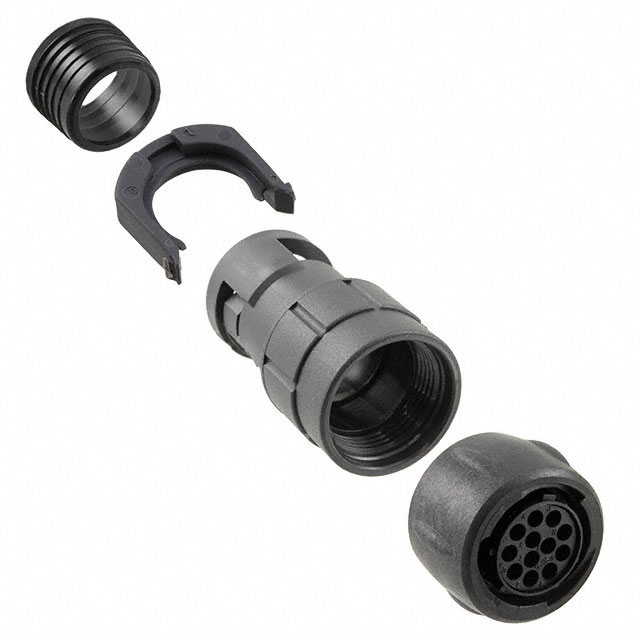

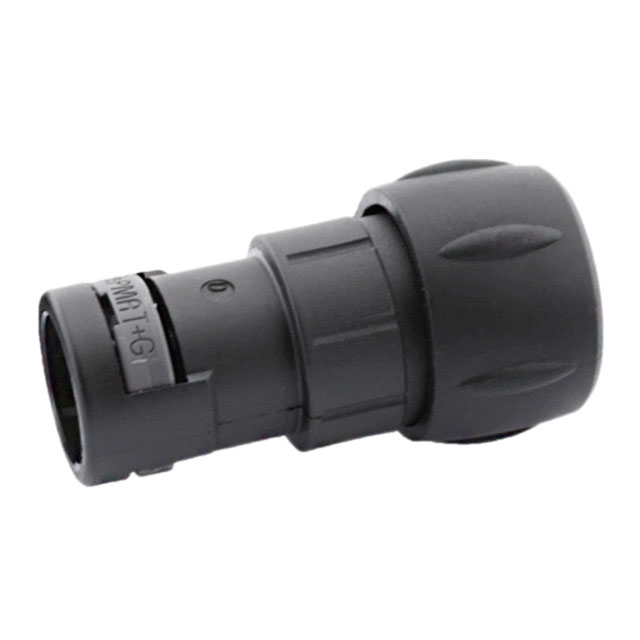

Amphenol Aerospace Operations UTS6FC1412S	Free Hanging (In-Line)	Black	Plug Housing	Crimp	14 mm	12 mm	Unshielded	N (Normal)	Dust Tight Water Resistant Waterproof	IP68 IP69K	-40 °C	105 °C	Backshell Coupling Nut	16 S	Bayonet Lock	For Female Sockets	Contacts Not Included	12		Circular	UL94 V-0	Thermoplastic
Amphenol Aerospace Operations UTS6FC1419S	Free Hanging (In-Line)	Black	Plug Housing	Crimp			Unshielded	N (Normal)	Dust Tight Water Resistant Waterproof	IP68 IP69K	-40 °C	105 °C	Backshell Coupling Nut	20	Bayonet Lock	For Female Sockets	Contacts Not Included	19		Circular	UL94 V-0	Thermoplastic	19	14 S
Amphenol Aerospace Operations UTS6FC14E15S	Free Hanging (In-Line)		Female Sockets Plug				Unshielded	N (Normal)	Dust Tight Water Resistant Waterproof	IP68 IP69K	-40 °C	105 °C	Backshell Conduit Adapter Coupling Nut UV Resistant		Bayonet Lock			15			UL94 HB	Nylon Polyamide (PA)	15	14 S	Polychloroprene	Plastic	12 A	Brass	Solder Cup	Gold	Nylon Polyamide (PA)	Energy Instrumentation Lighting Telecommunications	16 µin	Black	600 V
