IPT65R033 Series
Manufacturer: INFINEON
Beta
⌘K
MOSFET N-CH 650V 69A 8HSOF
| Part | Technology | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Operating Temperature [Max] | Operating Temperature [Min] | Power Dissipation (Max) | Vgs(th) (Max) @ Id | FET Type | Gate Charge (Qg) (Max) @ Vgs | Mounting Type | Drain to Source Voltage (Vdss) | Package / Case | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

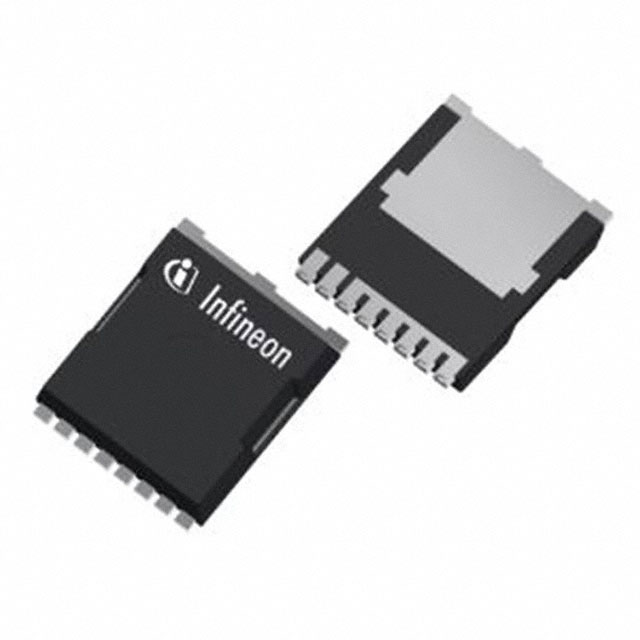

 INFINEON | MOSFET (Metal Oxide) | 20 V | 5000 pF | 150 °C | -55 °C | 391 W | 4 V | N-Channel | 110 nC | Surface Mount | 650 V | 8-PowerSFN | 69 A | 10 V | 33 mOhm | PG-HSOF-8-2 |
