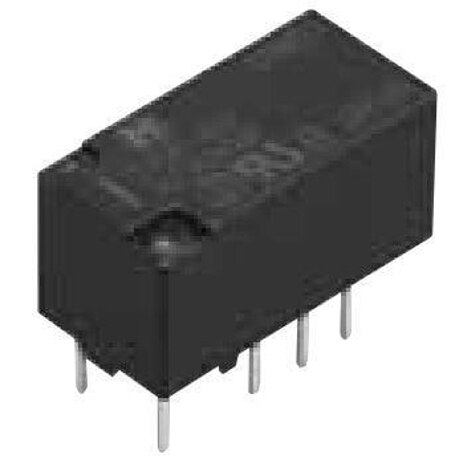

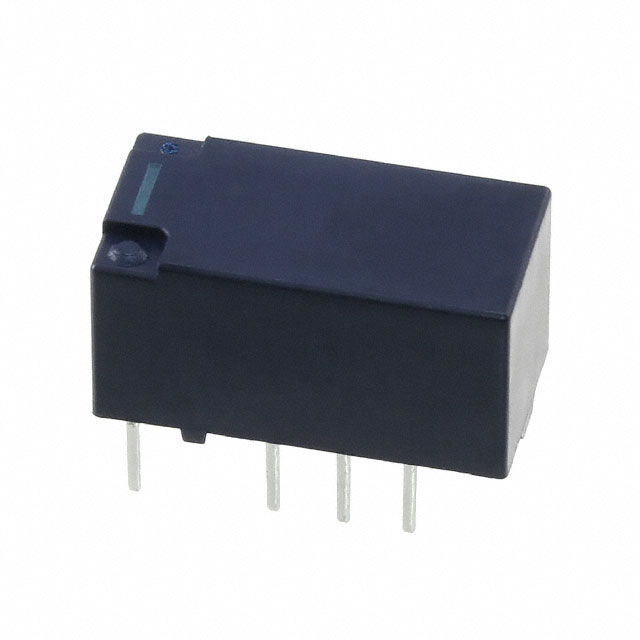

TXS2-L Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY GEN PURPOSE DPDT 10MA 9V
| Part | Coil Resistance | Release Time | Contact Form | Must Operate Voltage | Termination Style | Contact Rating (Current) | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage [Max] | Coil Current | Coil Voltage | Relay Type | Approval Agency | Contact Material | Mounting Type | Seal Rating | Operate Time | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 1.16 kOhms | 5 ms | DPDT (2 Form C) | 7.2 VDC | PC Pin | 10 mA | Dual Coil Latching | 70 °C | -40 C | 10 VDC | 7.8 mA | 9 VDC | General Purpose | BSI cURus | Gold (Au) Silver Palladium (AgPd) | Through Hole | Sealed - Fully | 5 ms | |
 Panasonic Electronic Components | 129 Ohms | 5 ms | DPDT (2 Form C) | 2.4 VDC | PC Pin | 1 A | Dual Coil Latching | 70 °C | -40 C | 110 VDC | 23.3 mA | General Purpose | BSI cURus | Gold (Au) Silver (Ag) | Through Hole | Sealed - Fully | 5 ms | 110 W | |
 Panasonic Electronic Components | 11.52 kOhms | 5 ms | DPDT (2 Form C) | 19.2 VDC | PC Pin | 1 A | Latching Single Coil | 70 °C | -40 C | 110 VDC | 2.1 mA | 24 VDC | General Purpose | BSI cURus | Gold (Au) Silver (Ag) | Through Hole | Sealed - Fully | 5 ms | 110 W |
Panasonic Electronic Components | 514 Ohms | 5 ms | DPDT (2 Form C) | 4.8 VDC | PC Pin | 10 mA | Dual Coil Latching | 70 °C | -40 C | 10 VDC | 11.7 mA | General Purpose | BSI cURus | Gold (Au) Silver Palladium (AgPd) | Through Hole | Sealed - Fully | 5 ms | ||
Panasonic Electronic Components | 514 Ohms | 5 ms | DPDT (2 Form C) | 4.8 VDC | PC Pin | 1 A | Dual Coil Latching | 70 °C | -40 C | 110 VDC | 11.7 mA | General Purpose | BSI cURus | Gold (Au) Silver (Ag) | Through Hole | Sealed - Fully | 5 ms | 110 W | |
 Panasonic Electronic Components | 3.84 kOhms | 5 ms | DPDT (2 Form C) | 19.2 VDC | PC Pin | 1 A | Dual Coil Latching | 70 °C | -40 C | 110 VDC | 6.3 mA | 24 VDC | General Purpose | BSI cURus | Gold (Au) Silver (Ag) | Through Hole | Sealed - Fully | 5 ms | 110 W |
Panasonic Electronic Components | 32.1 Ohms | 5 ms | DPDT (2 Form C) | 1.2 VDC | PC Pin | 1 A | Dual Coil Latching | 70 °C | -40 C | 110 VDC | 46.7 mA | 1.5 VDC | General Purpose | BSI cURus | Gold (Au) Silver (Ag) | Through Hole | Sealed - Fully | 5 ms | 110 W |
Panasonic Electronic Components | 2.06 kOhms | 5 ms | DPDT (2 Form C) | 9.6 VDC | PC Pin | 10 mA | Dual Coil Latching | 70 °C | -40 C | 10 VDC | 5.8 mA | 12 VDC | General Purpose | BSI cURus | Gold (Au) Silver Palladium (AgPd) | Through Hole | Sealed - Fully | 5 ms | |
Panasonic Electronic Components | 289 Ohms | 5 ms | DPDT (2 Form C) | 3.6 VDC | PC Pin | 1 A | Dual Coil Latching | 70 °C | -40 C | 110 VDC | 15.6 mA | 4.5 VDC | General Purpose | BSI cURus | Gold (Au) Silver (Ag) | Through Hole | Sealed - Fully | 5 ms | 110 W |
 Panasonic Electronic Components | 579 Ohms | 5 ms | DPDT (2 Form C) | 3.6 VDC | PC Pin | 10 mA | Latching Single Coil | 70 °C | -40 C | 10 VDC | 7.8 mA | 4.5 VDC | General Purpose | BSI cURus | Gold (Au) Silver Palladium (AgPd) | Through Hole | Sealed - Fully | 5 ms |
