LB-602 Series

Catalog

DISPLAY 7SEG 0.56" DBL RED 18DIP

Part	Digit/Alpha Size	Digit/Alpha Size	Millicandela Rating	Package / Case	Color	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Peak	Common Pin	Number of Characters	Display Type	Current - Test	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max)	Power Dissipation (Max) [Max]	Package / Case	Package / Case
Rohm Semiconductor LB-602VA2	0.56 in	14.3 mm	16 mcd	18-DIP	Red	0.748 " 19 mm	0.984 in 25 mm	0.315 " 8 mm	650 nm	Common Anode	2	7-Segment	10 mA	2 V
Rohm Semiconductor LB-602AA2	0.56 in	14.3 mm	90 mcd	18-DIP	Red	0.748 " 19 mm	0.984 in 25 mm	0.315 " 8 mm	626 nm	Common Anode	2	7-Segment	10 mA	2.05 V	65 mW
Rohm Semiconductor LB-602MK2	0.56 in	14.3 mm	25 mcd	18-DIP	Green	0.748 " 19 mm	0.984 in 25 mm	0.315 " 8 mm	563 nm	Common Cathode	2	7-Segment	10 mA	2.1 V	65 mW
Rohm Semiconductor LB-602AK2	0.56 in	14.3 mm	90 mcd	18-DIP	Red	0.748 " 19 mm	0.984 in 25 mm	0.315 " 8 mm	626 nm	Common Cathode	2	7-Segment	10 mA	2.05 V	65 mW

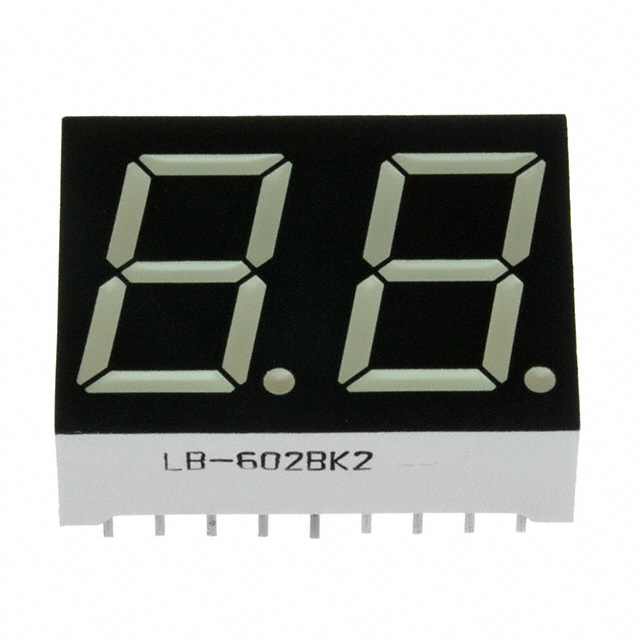

Rohm Semiconductor LB-602BK2	0.56 in	14.3 mm	56 mcd	18-DIP	Blue	0.748 " 19 mm	0.984 in 25 mm	0.315 " 8 mm		Common Cathode	2	7-Segment	10 mA	3.6 V		42 mW
Rohm Semiconductor LB-602BA2	0.56 in	14.3 mm	56 mcd	18-DIP	Blue	0.748 " 19 mm	0.984 in 25 mm	0.315 " 8 mm		Common Anode	2	7-Segment	10 mA	3.6 V		42 mW
Rohm Semiconductor LB-602MA2	0.56 in	14.3 mm	25 mcd	18-DIP	Green	0.748 " 19 mm	0.984 in 25 mm	0.315 " 8 mm	563 nm	Common Anode	2	7-Segment	10 mA	2.1 V	65 mW

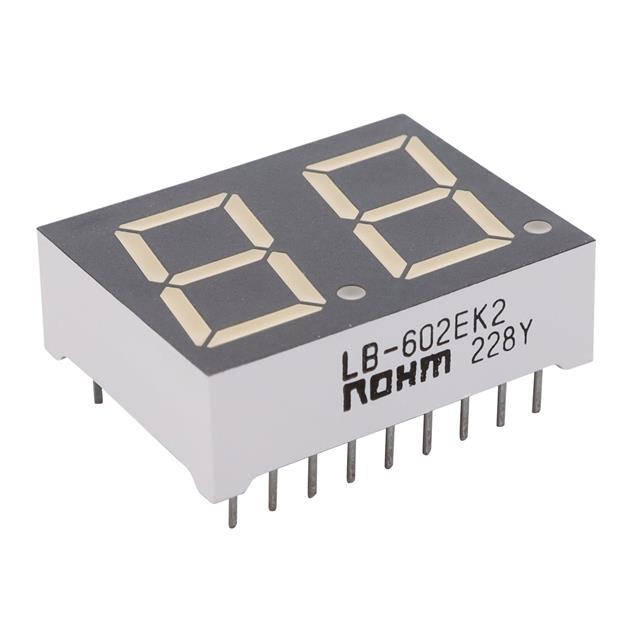

Rohm Semiconductor LB-602EK2	0.56 in	14.3 mm	90 mcd	18-DIP		0.748 " 19 mm	0.984 in 25 mm	0.315 " 8 mm	610 nm	Common Cathode	2	7-Segment	20 mA	2.05 V		1.04 W	15.24 mm	0.6 in
