HLW20R Series

Catalog

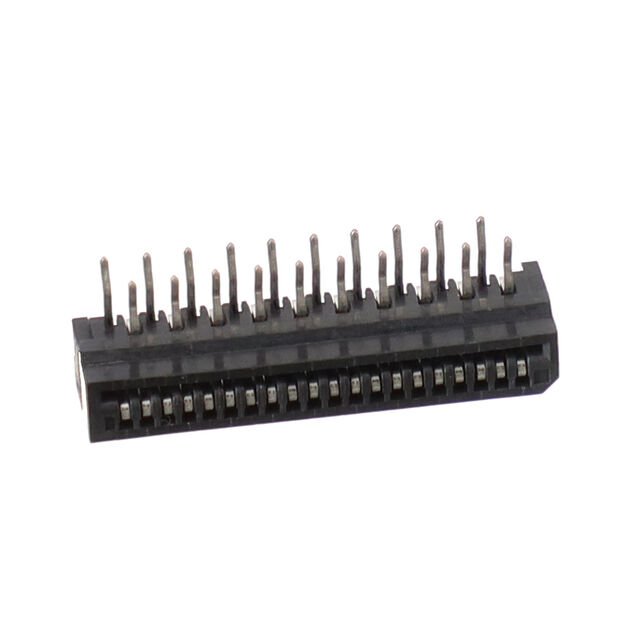

CONN FFC FPC TOP 20POS 1MM R/A

Part	Housing Color	Actuator Color	Mating Cycles	Height Above Board [z]	Height Above Board [z]	Contact Material	Flat Flex Type	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Pitch	Pitch	Termination	Cable End Type	Housing Material	Mounting Type	Material Flammability Rating	Connector/Contact Type	Number of Positions	Voltage Rating	Contact Finish
Amphenol ICC (FCI) HLW20R-2C7LF	Black	Black	30	0.154 in	3.9 mm	Phosphor Bronze	FFC FPC	-55 C	85 °C	0.3 mm	0.33 mm	1 mm	0.039 in	Kinked Pin	Straight Tapered	Polybutylene Terephthalate (PBT) Glass Filled	Right Angle Through Hole	UL94 V-0	Contacts Top	20	100 V	Tin
