F221B3/16 Series

Catalog

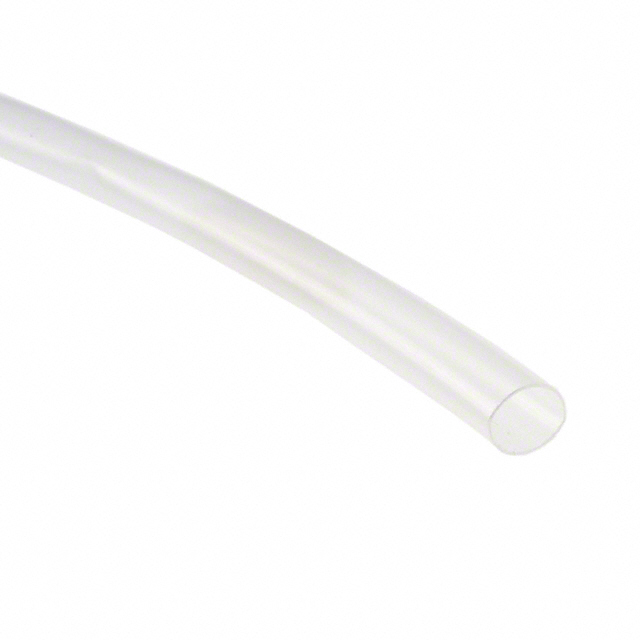

HEATSHRK CLR 3/16X3" 50=50PC

Part	Shelf Life Start	Type	Length	Length	Length [x]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrink Temperature	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Length	Operating Temperature [Min]	Operating Temperature [Max]	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Features	Color	Shelf Life
ALPHA WIRE F221B3/16 CL204	Date of Manufacture	Tubing Flexible	19.05 mm 25.4 mm 38.1 mm 50.8 mm 101.6 mm 152.4 mm 152.4 m	0.75 " 1 " 1.5 in 2 in 4 in 6 "	0.25 ft 0.333 ft	0.187 "	4.75 mm	90 °C	1	2	0.51 mm	0.02 in	0.062 ft 0.083 ft 0.125 ft 0.167 ft 0.5 ' 500 ft	-55 C	135 °C	Polyolefin (PO) Irradiated	2.36 mm	0.093 in	76.2 mm	3 in	Fluid Resistant	Clear	144 Months
ALPHA WIRE F221B3/16 BK204	Date of Manufacture	Tubing Flexible	19.05 mm 25.4 mm 38.1 mm 50.8 mm 101.6 mm 152.4 m 152.4 mm	0.75 " 1 " 1.5 in 2 in 4 in 6 "	0.25 ft 0.333 ft	0.187 "	4.75 mm	90 °C	1	2	0.51 mm	0.02 in	0.062 ft 0.083 ft 0.125 ft 0.167 ft 0.5 ' 500 ft	-55 C	135 °C	Polyolefin (PO) Irradiated	2.36 mm	0.093 in	76.2 mm	3 in	Flame Resistant Fluid Resistant UV Resistant	Black	144 Months
