MRB Series

Catalog

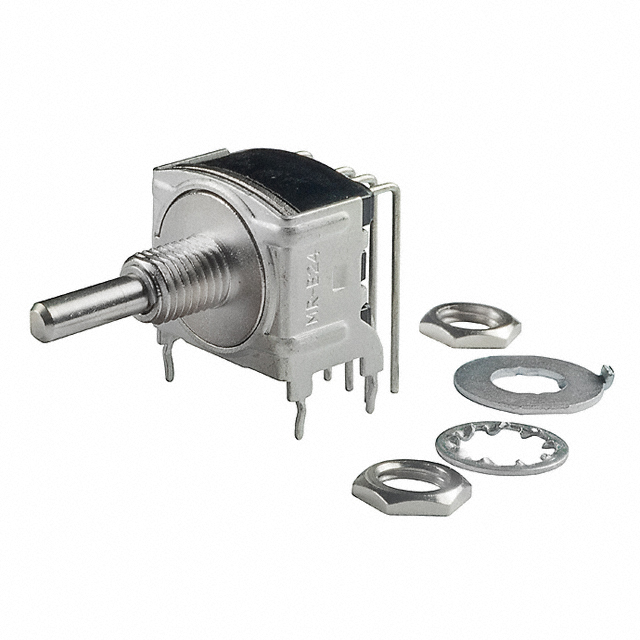

MINIATURE PCB PROCESS SEALED ROTARY

Part	Number of Poles per Deck	Current Rating (Amps)	Circuit per Deck	Contact Timing	Termination Style	Depth Behind Panel [z]	Contact Material	Contact Finish	Index Stops	Voltage Rating - AC	Voltage Rating - DC	Number of Decks [custom]	Actuator Type	Angle of Throw	Actuator Length [x]	Features	Mounting Type	Panel Cutout Dimensions [diameter]	Number of Positions	Depth Behind Panel [custom]
NKK Switches MRB14H-A-AT535	1	0.4 VA	SP3T	Non-Shorting (BBM)	PC Pin	12.56 mm	Beryllium Copper	Gold	Fixed	28 V	28 V	1	Knob	45 °	13 mm	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole
NKK Switches MRB24H-BA-AT535	2	0.4 VA	DP3T	Non-Shorting (BBM)	PC Pin	15.1 mm	Beryllium Copper	Gold	Fixed	28 V	28 V	1	Knob	45 °	14.3 mm	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	0.25 in
NKK Switches MRB12H-BA	1	0.4 VA	SPDT	Non-Shorting (BBM)	PC Pin	12.56 mm	Beryllium Copper	Gold	Fixed	28 V	28 V	1	Knob	90 °	14.3 mm	Sealed - Fully	Panel Mount Right Angle Through Hole	0.25 in	2
NKK Switches MRB24H-AT535	2	0.4 VA	DP3T	Non-Shorting (BBM)	PC Pin	15.1 mm	Beryllium Copper	Gold	Fixed	28 V	28 V	1	Flatted (3.17mm Dia)	45 °	10 mm	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole
NKK Switches MRB24B-CB-AT535	2	0.4 VA	DP3T	Non-Shorting (BBM)	PC Pin		Beryllium Copper	Gold	Fixed	28 V	28 V	1	Knob	45 °	15.8 mm	IP67 - Dust Tight Waterproof	Panel Mount Through Hole			11 mm
NKK Switches MRB24H-BB	2	0.4 VA	DP3T	Non-Shorting (BBM)	PC Pin	15.1 mm	Beryllium Copper	Gold	Fixed	28 V	28 V	1	Knob	45 °	14.3 mm	Sealed - Fully	Panel Mount Right Angle Through Hole	0.25 in
NKK Switches MRB14H-BH	1	0.4 VA	SP3T	Non-Shorting (BBM)	PC Pin	12.56 mm	Beryllium Copper	Gold	Fixed	28 V	28 V	1	Knob	45 °	14.3 mm	Sealed - Fully	Panel Mount Right Angle Through Hole	0.25 in
