EB2061P Series

Catalog

LIGHT TOUCH MINIATURE PUSHBUTTON

Part	Mechanical Life	Electrical Life	Color - Actuator/Cap	Actuator Type	Switch Function	Mounting Type	Features	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Type	Circuit	Termination Style	Current Rating (Amps)	Voltage Rating - AC	Illumination Type, Color	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]
NKK Switches EB2061P-B-J21A	100000 Cycles	25000 Steps	White	Button Square	On-Mom	Panel Mount Snap-In	Epoxy Sealed Terminals	No Marking	70 °C	-10 °C	15 mm	12.5 mm	Standard	DPDT	PC Pin	3 A	125 V
NKK Switches EB2061P-B-J24ACC	100000 Cycles	25000 Steps	White	Button Square	On-Mom	Panel Mount Snap-In	Epoxy Sealed Terminals	No Marking	70 °C	-10 °C	18.4 mm	15 mm	Illuminated Standard	DPDT	PC Pin	3 A	125 V	LED Red	1.9 VDC

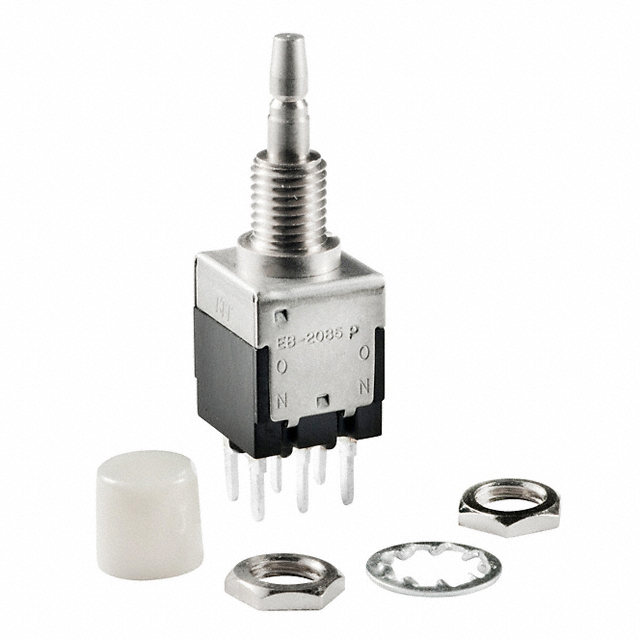

NKK Switches EB2061P-BB	100000 Cycles	25000 Steps	White	Button Round	On-Mom	Panel Mount Rear	Epoxy Sealed Terminals	No Marking	70 °C	-10 °C			Standard	DPDT	PC Pin	3 A	125 V			0.25 in
NKK Switches EB2061P-CA	100000 Cycles	25000 Steps	Black	Button Round	On-Mom	Panel Mount Rear	Epoxy Sealed Terminals	No Marking	70 °C	-10 °C			Standard	DPDT	PC Pin	3 A	125 V			0.25 in
NKK Switches EB2061P-A-J21A	100000 Cycles	25000 Steps	Black	Button Square	On-Mom	Panel Mount Snap-In	Epoxy Sealed Terminals	No Marking	70 °C	-10 °C	15 mm	12.5 mm	Standard	DPDT	PC Pin	3 A	125 V
NKK Switches EB2061P-A-J23ACF	100000 Cycles	25000 Steps	Black	Button Square	On-Mom	Panel Mount Snap-In	Epoxy Sealed Terminals	No Marking	70 °C	-10 °C	18.4 mm	15 mm	Illuminated Standard	DPDT	PC Pin	3 A	125 V	Green/Red LED	2 VDC 2.25 VDC
