DF3A6.8FU Series

ESD Protection Diodes, Dual, Common Anode

Catalog

ESD Protection Diodes, Dual, Common Anode

Part	Type	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Power - Peak Pulse	Current - Peak Pulse (10/1000µs)	Qualification	Grade	Mounting Type	Voltage - Reverse Standoff (Typ)	Unidirectional Channels	Applications

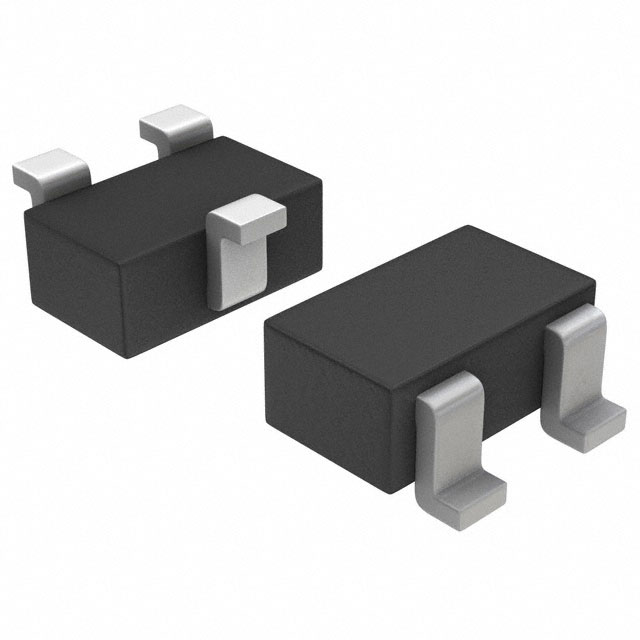

ON Semiconductor SZDF3A6.8FUT1G	Zener	16 V	6.4 V	-55 °C	150 °C	SC-70 SOT-323	150 W	9.37 A	AEC-Q101	Automotive	Surface Mount	5 V	2
ON Semiconductor DF3A6.8FUT1G	Zener	16 V	6.4 V	-55 °C	150 °C	SC-70 SOT-323	150 W	9.37 A			Surface Mount	5 V	2
ON Semiconductor DF3A6.8FUT1	Zener	16 V	6.4 V	-55 °C	150 °C	SC-70 SOT-323	150 W	9.37 A			Surface Mount	5 V	2	General Purpose

Catalog

ESD Protection Diodes, Dual, Common Anode

Key Features

• Pb-Free Package is Available

Description

This dual monolithic silicon zener diode is designed for applications requiring protection capability. The device is intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. The dual junction common anode design protects two separate lines using only one package. These devices are ideal for situations where board space is at a premium.
