EVAL BOARD FOR ADS54J40
| Part | Power (Typ) @ Conditions | Supplied Contents | Data Interface | Utilized IC / Part | Input Range | Sampling Rate (Per Second) | Number of Bits | Number of A/D Converters | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|

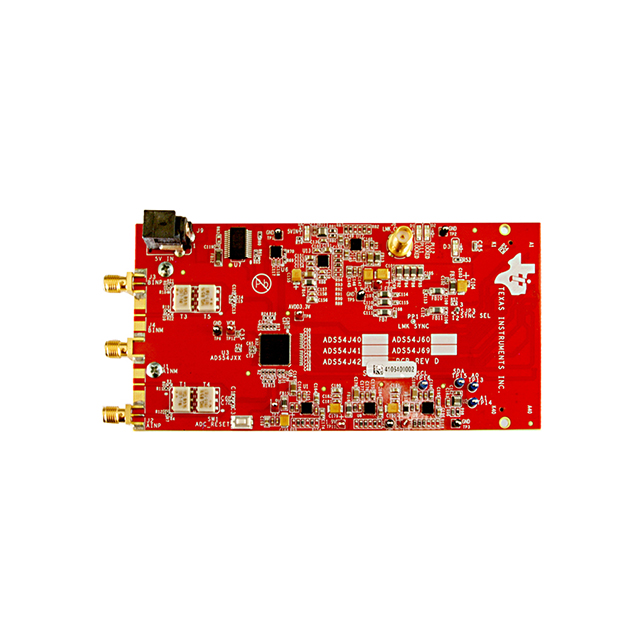

 Texas Instruments | 2.66 W | Board(s) Cable(s) | JESD204B Serial | ADS54J40 | 1.9 Vpp | 1 G | 14 | 2 | |

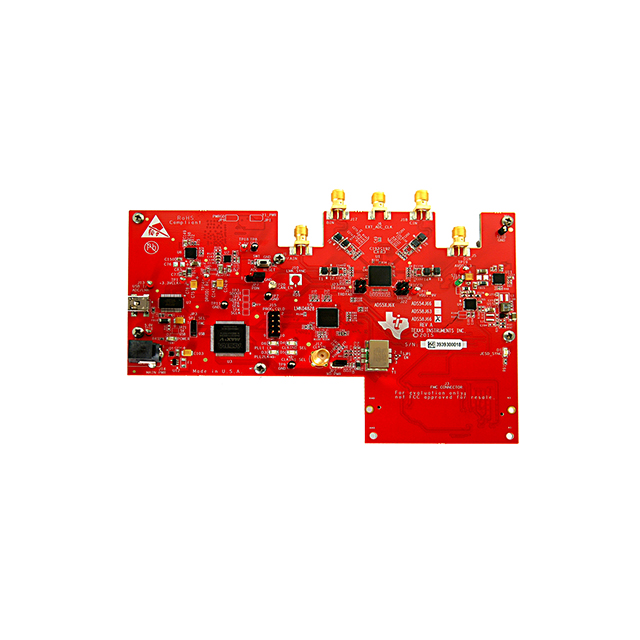

 Texas Instruments | 2.68 W | Board(s) Cable(s) | JESD204B Serial | ADS54J66 | 1.9 Vpp | 500 M | 14 | 4 | |
 Texas Instruments | 2.1 W | Board(s) | DDR LVDS | ADS54T02 | 1 Vpp | 750 M | 12 bits | 2 | |
 Texas Instruments | 2.74 W | Board(s) | JESD204B Serial | ADS54J20 | 1.9 Vpp | 1 G | 12 bits | 2 | |

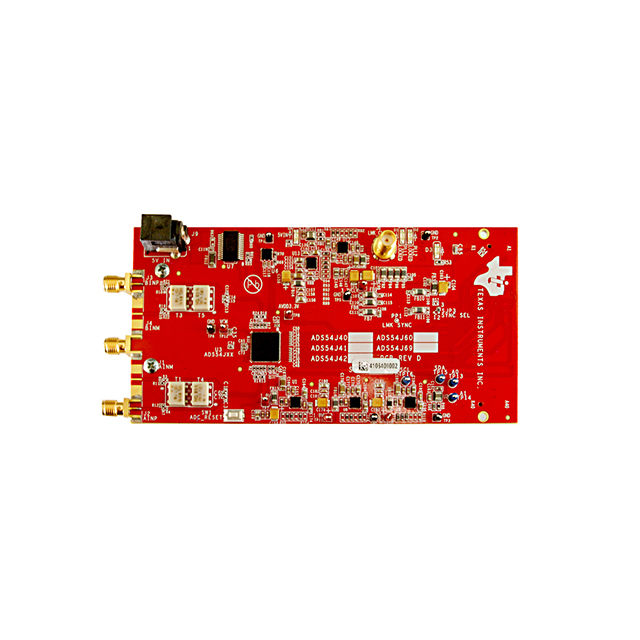

 Texas Instruments | 1.94 W | Board(s) Cable(s) | JESD204B Serial | ADS54J42 | 1.9 Vpp | 625 M | 14 | 2 | |

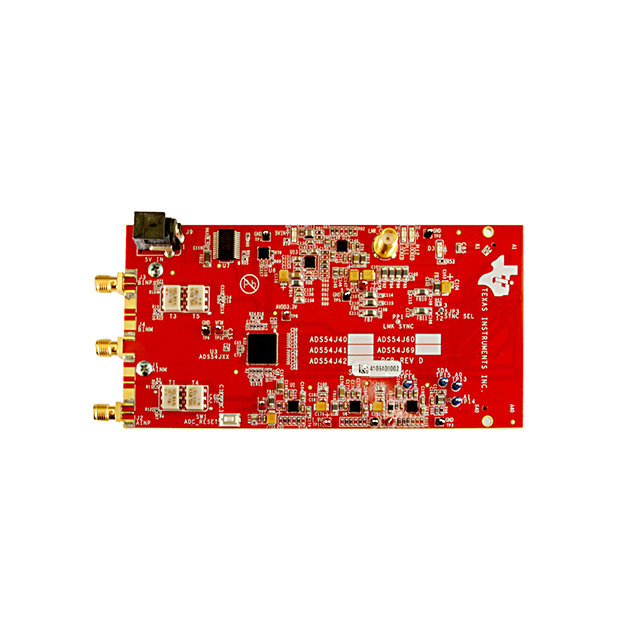

 Texas Instruments | 2.66 W | Board(s) | JESD204B Serial | ADS54J69 | 1.9 Vpp | 500 M | 16 | 2 | |

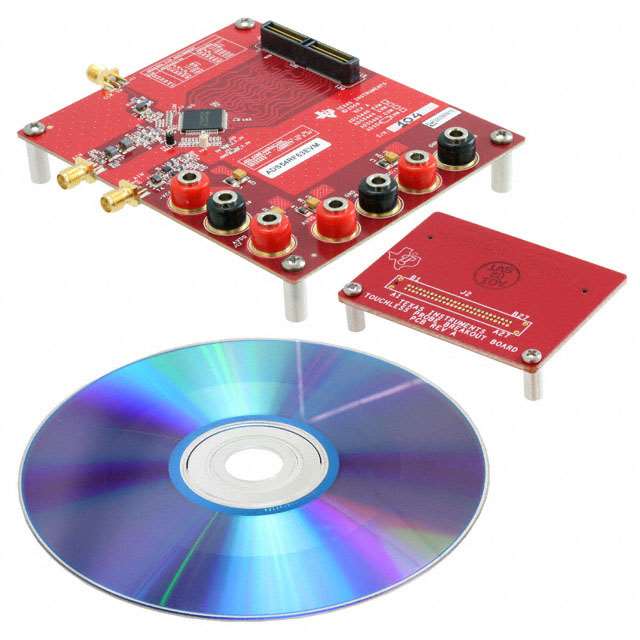

 Texas Instruments | Board(s) | ADS54RF63 | 2.2 Vpp | 12 bits | 1 | 550M | |||

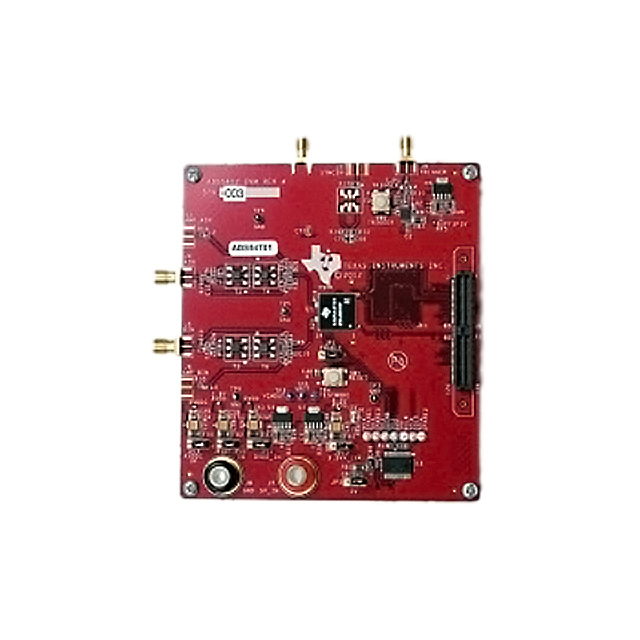

 Texas Instruments | Board(s) | DDR LVDS | ADS54T04 | 1 Vpp | 500 M | 12 bits | 2 | ||

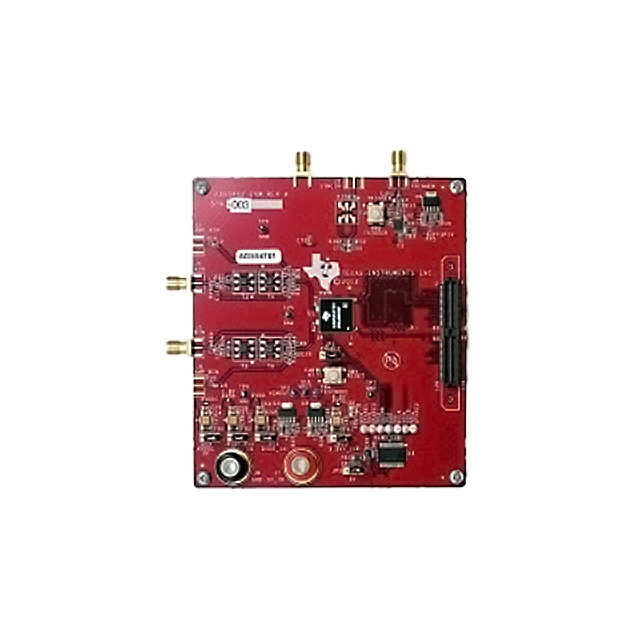

 Texas Instruments | Board(s) | DDR LVDS | ADS54T01 | 1 Vpp | 750 M | 12 bits | 1 | ||

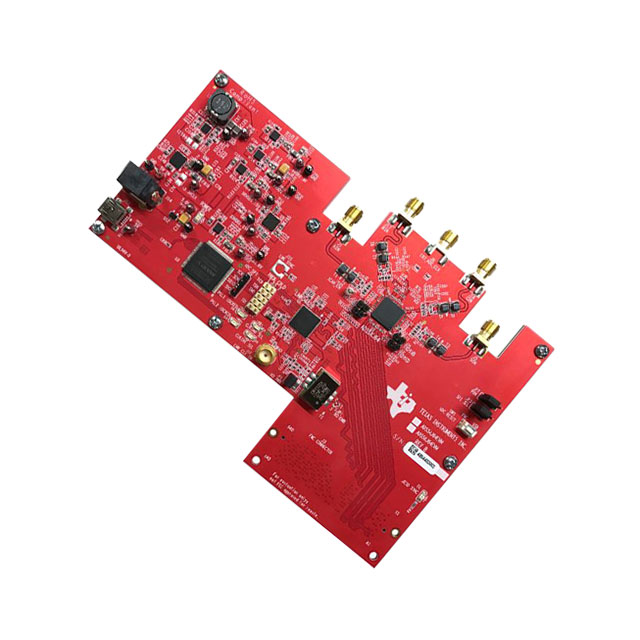

 Texas Instruments | Board(s) | JESD204B Serial | ADS54J64 | 1.1 Vpp | 1 G | 14 | 4 |
