0489-2 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Tail Type	Length - Overall	Length - Overall	Contact Material	Mounting Hole Diameter	Mounting Hole Diameter	Tail Diameter [diameter]	Tail Diameter [diameter]	Termination	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish
Mill-Max Manufacturing Corp. 0489-2-15-80-11-14-04-0	-55 C	125 °C	3.05 mm	0.12 in	Standard Tail	0.433 in	11 mm	Beryllium Copper	0.041 in	1.04 mm	0.46 mm	0.018 in	Press-Fit	0.02 in	0.38 mm	0.015 "	0.51 mm	0.031 in	0.79 mm	0.25 Ám	10 Áin	Gold
Mill-Max Manufacturing Corp. 0489-2-15-01-11-14-04-0	-55 C	125 °C	3.05 mm	0.12 in	Standard Tail	0.433 in	11 mm	Beryllium Copper	0.041 in	1.04 mm	0.46 mm	0.018 in	Press-Fit	0.02 in	0.38 mm	0.015 "	0.51 mm	0.031 in	0.79 mm	0.25 Ám	10 Áin	Gold
Mill-Max Manufacturing Corp. 0489-2-15-01-11-02-04-0	-55 C	125 °C	3.05 mm	0.12 in	Standard Tail	0.433 in	11 mm	Beryllium Copper	0.041 in	1.04 mm	0.46 mm	0.018 in	Press-Fit	0.02 in	0.38 mm	0.015 "	0.51 mm	0.031 in	0.79 mm	2.54 µm	100 µin	Tin-Lead

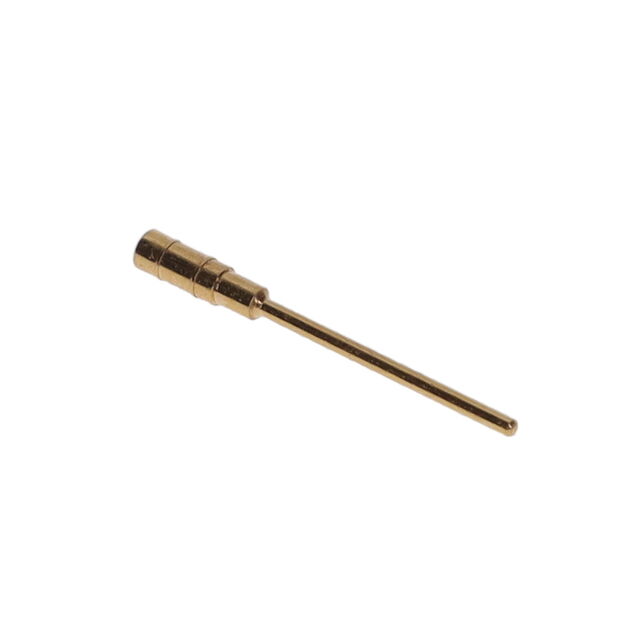

Mill-Max Manufacturing Corp. 0489-2-15-15-11-14-04-0	-55 C	125 °C	3.05 mm	0.12 in	Standard Tail	0.433 in	11 mm	Beryllium Copper	0.041 in	1.04 mm	0.46 mm	0.018 in	Press-Fit	0.02 in	0.38 mm	0.015 "	0.51 mm	0.031 in	0.79 mm	0.25 Ám	10 Áin	Gold
Mill-Max Manufacturing Corp. 0489-2-15-80-11-84-04-0	-55 C	125 °C	3.05 mm	0.12 in	Standard Tail	0.433 in	11 mm	Beryllium Copper	0.041 in	1.04 mm	0.46 mm	0.018 in	Press-Fit	0.02 in	0.38 mm	0.015 "	0.51 mm	0.031 in	0.79 mm	2.54 µm	100 µin	Tin
Mill-Max Manufacturing Corp. 0489-2-15-80-11-27-04-0	-55 C	125 °C	3.05 mm	0.12 in	Standard Tail	0.433 in	11 mm	Beryllium Copper	0.041 in	1.04 mm	0.46 mm	0.018 in	Press-Fit	0.02 in	0.38 mm	0.015 "	0.51 mm	0.031 in	0.79 mm	0.76 Ám	30 Áin	Gold
