FUS 250V F/A MIDGET 3A
Description
AI

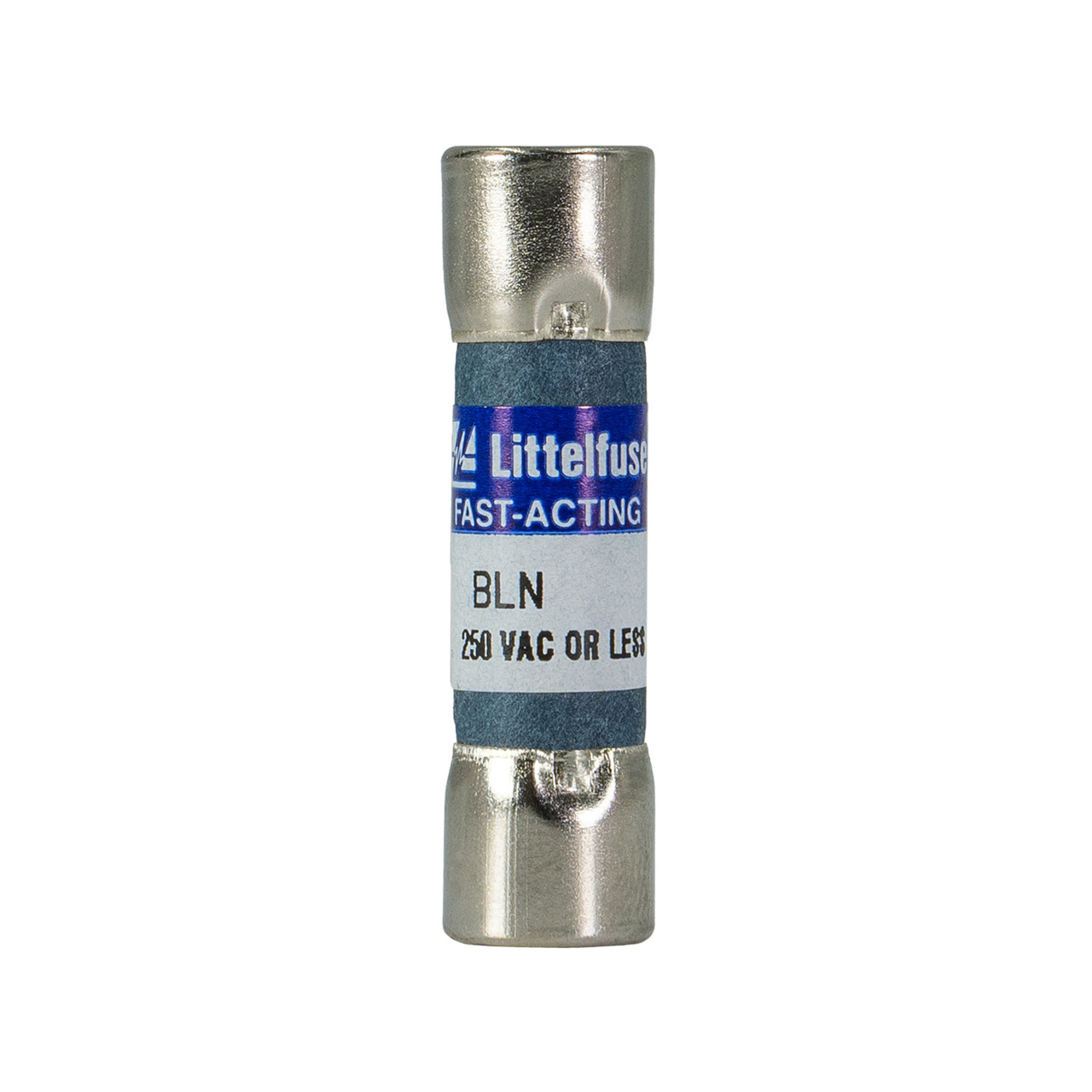

BLN003 is a Midget fuse with an ampere rating of 3 and 250 V ac.
Beta
⌘K
FUS 250V F/A MIDGET 3A
FUS 250V F/A MIDGET 3A
| Part | Mounting Type | Approval Agency | Fuse Type | Voltage Rating - AC | DC Cold Resistance | Current Rating (Amps) | Applications | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Response Time | Package / Case | Package / Case [y] | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Requires Holder | CSA PSE UR | Cartridge | 250 VAC | 0.065 Ohms | 3 A | Electrical Industrial | 0.406 in | 38.1 mm | 1.5 in | 10.31 mm | Fast Blow | 5AG | 38 mm | 10 mm |
