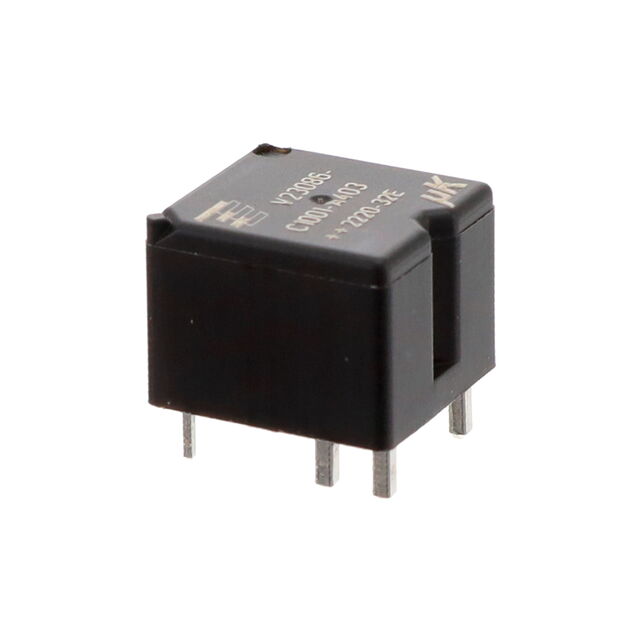

1414761 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY AUTO SPDT 30A 12V
| Part | Contact Material | Coil Power | Coil Resistance | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Contact Rating (Current) | Coil Type | Operate Time | Coil Current | Coil Voltage | Release Time | Must Operate Voltage | Must Release Voltage | Termination Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Silver Tin Oxide (AgSnO) | 567 mW | 254 Ohms | SPDT (1 Form C) | -40 C | 105 ░C | 30 A | Non Latching | 3 ms | 47.2 mA | 12 VDC | 1.5 ms | 6.9 VDC | 1.5 VDC | PC Pin | Through Hole |
