ERNI MicroSpeed Power Modules Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

MSPPM 5 F THR F4 B A V 137 094 * E008 J

Part	Style	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish - Mating	Number of Positions Loaded	Mounting Type	Number of Positions	Number of Rows	Termination	Connector Type	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Material Flammability Rating	Insulation Color	Features	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Material	Insulation Material	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Contact Finish	Contact Layout, Typical	Color	Connector Usage	Number of Columns
TE Connectivity AMP Connectors 374954-E	Board to Cable/Wire	0.079 "	2 mm	Female Socket	Gold	All	Through Hole	4	1	Solder	Header	Tin	0.213 "	5.4 mm	Push-Pull

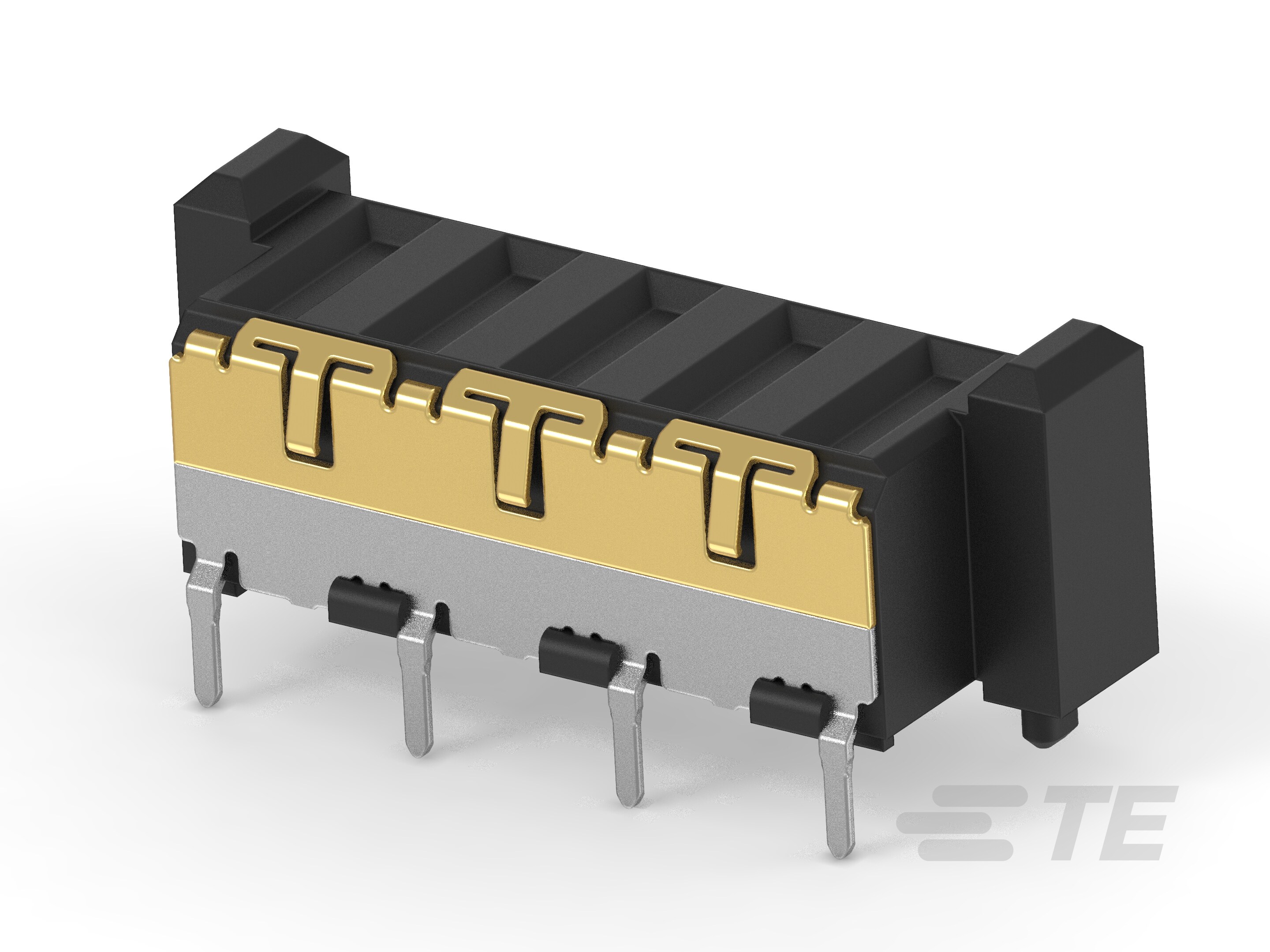

TE Connectivity AMP Connectors 354263-E		0.079 "	2 mm	Female Blade Socket	Gold	All	Surface Mount	5	1	Solder	Receptacle	Tin			Push-Pull	-55 C	125 °C	18 A	UL94 V-0	Black	Board Guide Pick and Place Solder Retention
TE Connectivity AMP Connectors 364708-E		0.079 "	2 mm	Female Socket	Gold	All	Surface Mount Right Angle Through Hole	5	1	Solder	Receptacle	Tin			Push-Pull	-55 C	125 °C	18 A	UL94 V-0	Black	Board Guide	5.25 mm	0.207 in

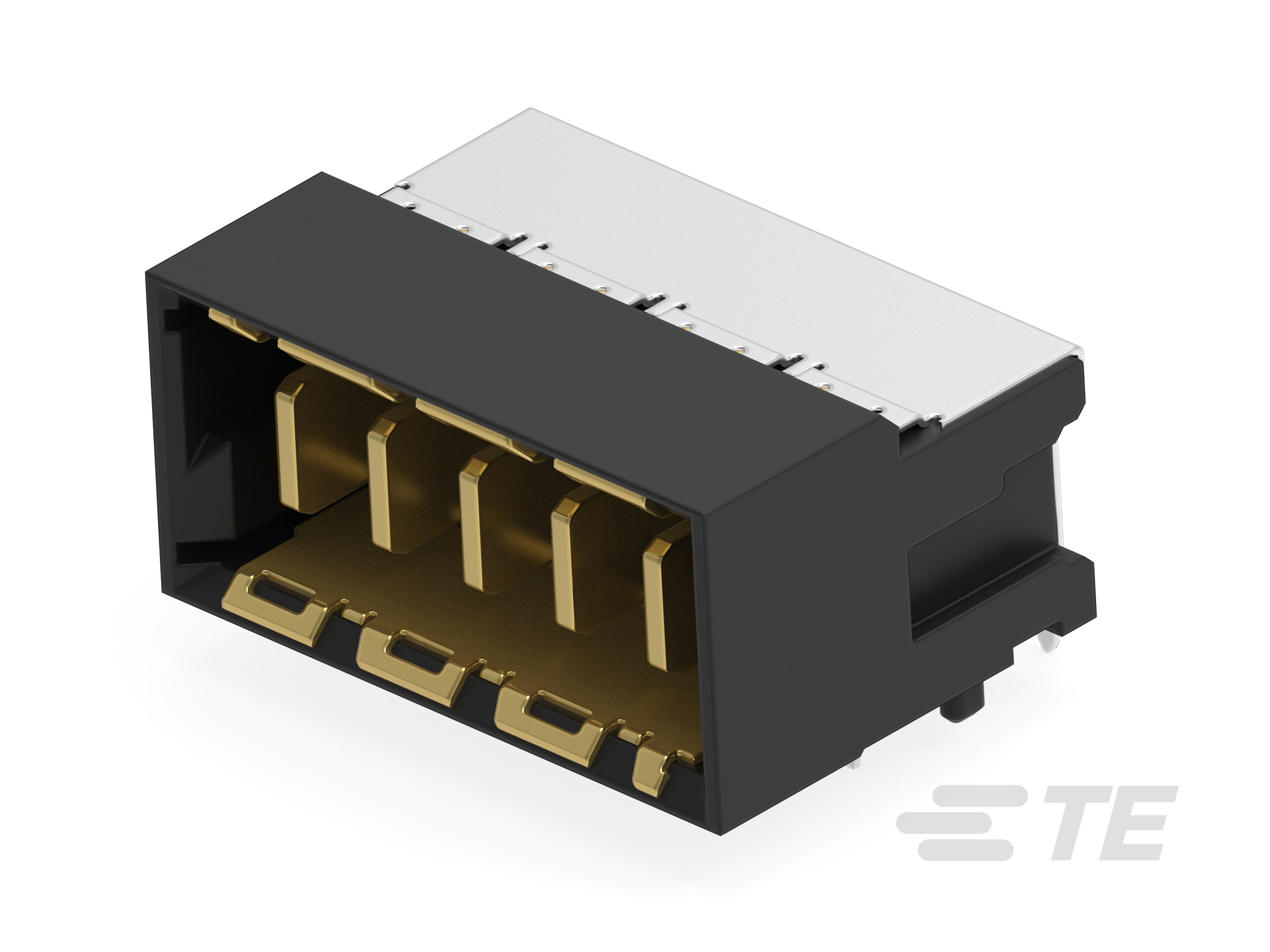

TE Connectivity AMP Connectors 394573-E	Board to Cable/Wire	0.079 "	2 mm	Male Blade	Gold	All	Right Angle Through Hole	5	1	Solder	Header	Tin			Push-Pull	-55 C	125 °C	18 A	UL94 V-0	Black	Board Guide	5.85 mm	0.23 "	157.5 Áin	4 Ám	Shrouded - 4 Wall	Rectangular	0.047 "	1.2 mm	Copper Alloy	Liquid Crystal Polymer (LCP)
TE Connectivity AMP Connectors 214917-E							Surface Mount Through Hole	5	1		Array Male Pins										Board Guide Ground Bus (Plane) Pick and Place											5.74 mm	0.226 "	0.079 in	2 mm	Gold

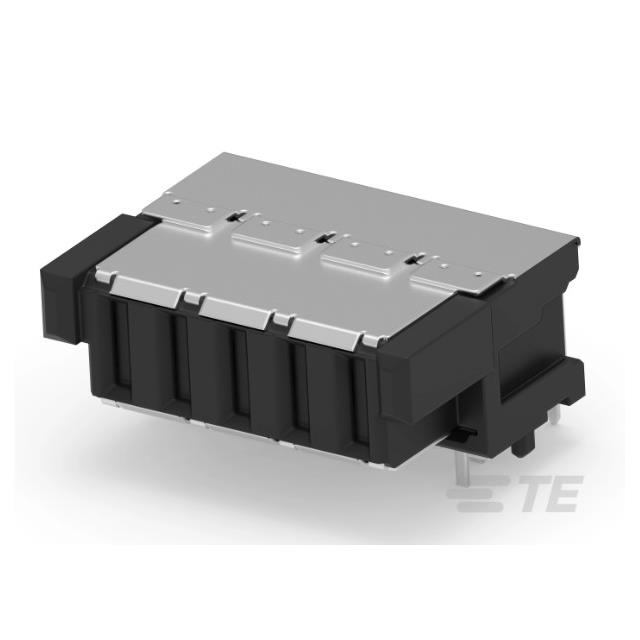

TE Connectivity AMP Connectors 394570-E		0.079 "	2 mm	Female Blade Socket	Gold	All	Right Angle Through Hole	5	1	Solder	Receptacle	Tin			Push-Pull	-55 C	125 °C	18 A	UL94 V-0	Black	Board Guide	5.25 mm	0.207 in	157.5 Áin	4 Ám		Rectangular	0.047 "	1.2 mm	Copper Alloy	Liquid Crystal Polymer (LCP)
TE Connectivity AMP Connectors 214914-E							Surface Mount Through Hole	5	1		Array Female Sockets										Board Guide Ground Bus (Plane) Pick and Place													0.079 in	2 mm	Gold
TE Connectivity AMP Connectors 354276-E						All	Surface Mount	5	1	Solder	Header Male Blades										Board Guide													0.079 in	2 mm	Gold	5 Power	Black	Backplane Orthogonal	5

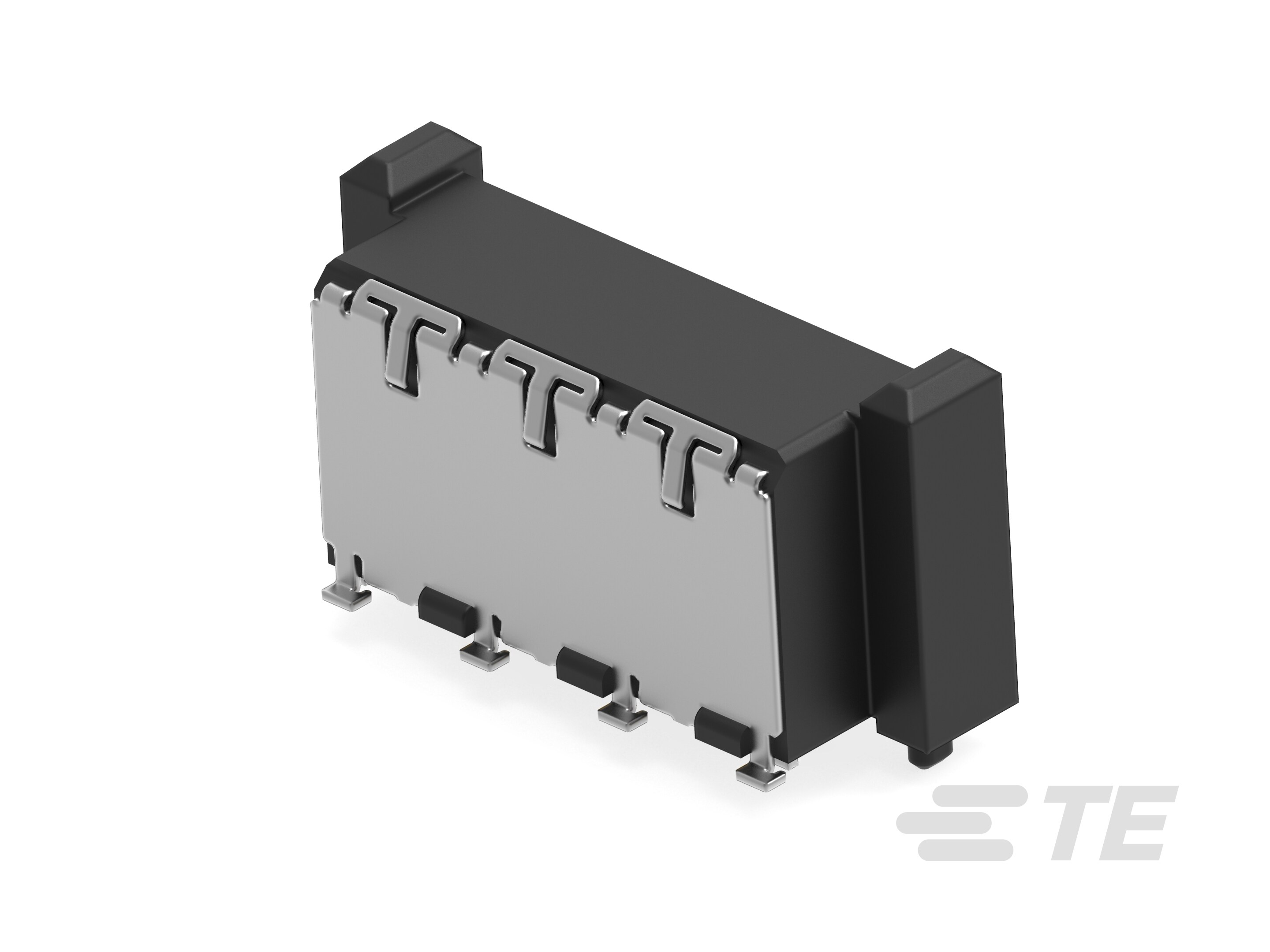

TE Connectivity AMP Connectors 354264-E		0.079 "	2 mm	Female Blade Socket	Gold	All	Surface Mount	5	1	Solder	Receptacle	Tin	0.252 "	6.4 mm	Push-Pull	-55 C	125 °C	18 A	UL94 V-0	Black	Board Guide Pick and Place

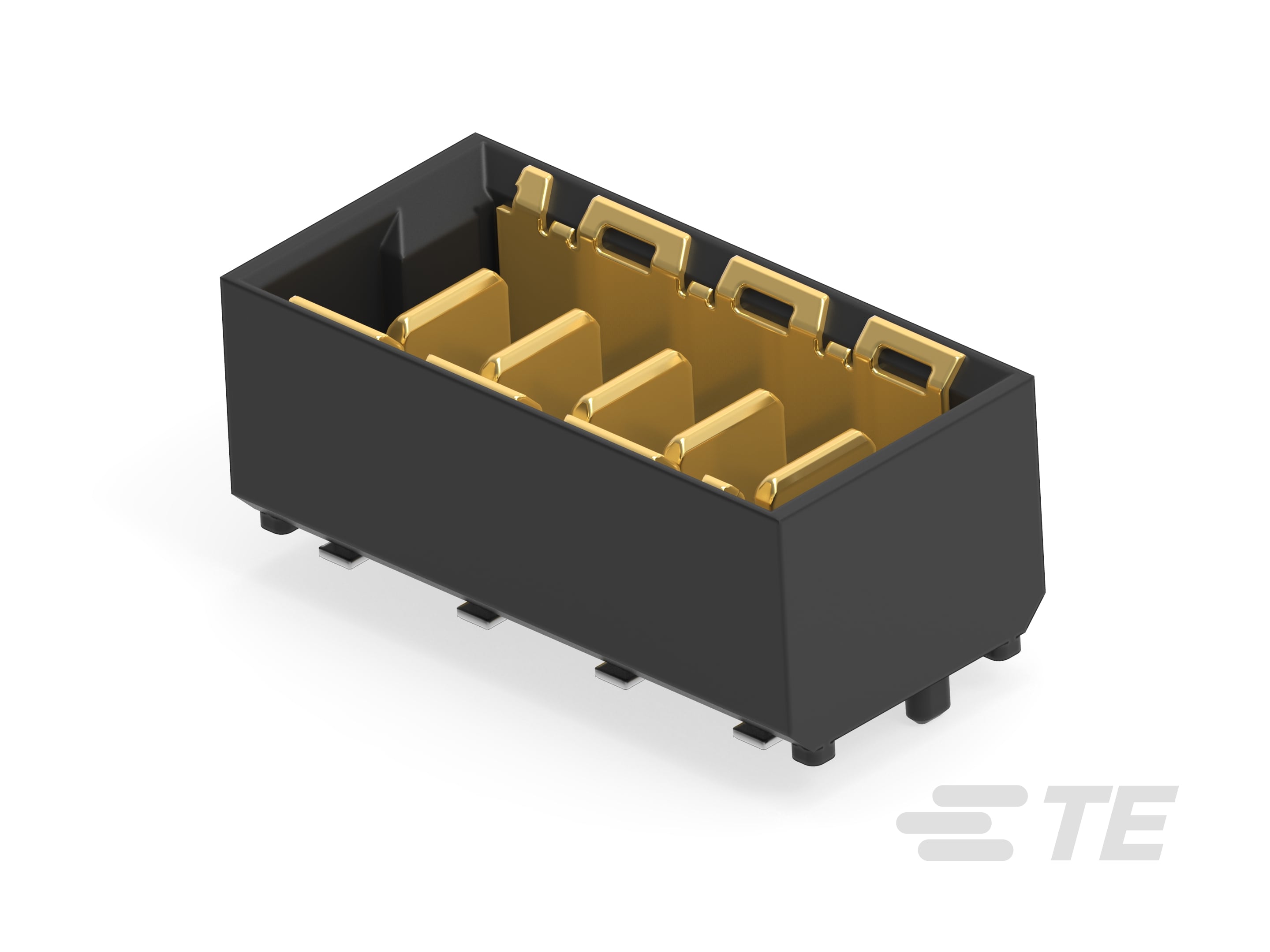

TE Connectivity AMP Connectors 214357-E							Surface Mount	5	1		Array Male Pins										Board Guide Ground Bus (Plane) Pick and Place											4.75 mm	0.187 in	0.079 in	2 mm	Gold
