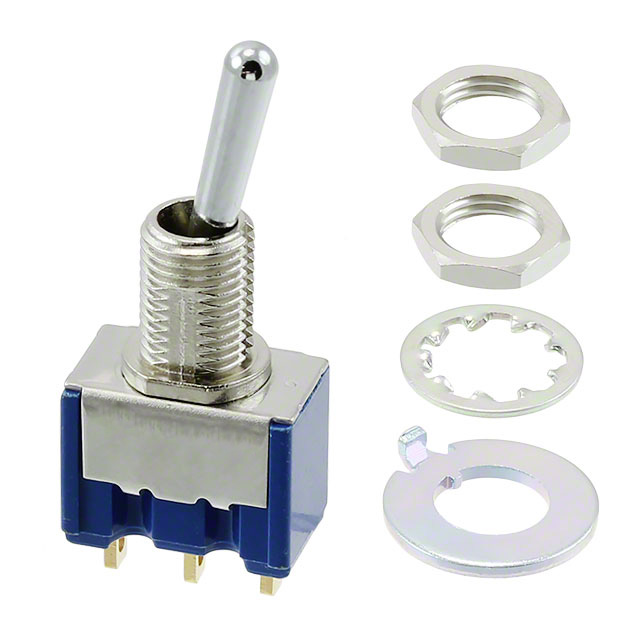

8A1011 Series
Manufacturer: Nidec Components Corporation
Catalog
TOGGLE SW, SPDT, 6A, 125V, PANEL
| Part | Electrical Life (Cycles) | Mounting Type | Circuit | Actuator Type | Voltage Rating - DC | Bushing Thread | Current Rating | Operating Temperature (Max) | Operating Temperature (Min) | Features | Illumination | Panel Cutout Diameter | Panel Cutout Shape | Actuator Length | Termination Style | Switch Function | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 50000 | Panel Mount | SPDT | Standard Round | 20 V | 1/4-40 | 25 mA | 85 °C | -30 °C | Flux Protection Sealed | Non-Illuminated | 6.5 mm | Circular | 10.5 mm | Solder Lug | On-On | |
 Nidec Components Corporation | 50000 | Panel Mount | SPDT | Standard Round | 30 V | 1/4-40 | 4 A 6 A | 85 °C | -30 °C | Flux Protection Sealed | Non-Illuminated | 6.5 mm | Circular | 10.5 mm | Solder Lug | On-On | 125 V |
