T9GS5 Series

Catalog

RELAY GEN PURPOSE SPDT 20A 15V

Part	Coil Resistance	Contact Form	Termination Style	Coil Insulation	Must Operate Voltage	Contact Material	Coil Voltage	Switching Voltage [Max]	Relay Type	Seal Rating	Release Time	Coil Type	Approval Agency	Mounting Type	Load - Max Switching [Max]	Coil Current	Operate Time	Must Release Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)
TE Connectivity AMP Connectors T9GS5L14-15	249 Ohms	SPDT (1 Form C)	PC Pin	Class F	11.25 VDC	Silver Tin Oxide (AgSnO)	15 VDC	480 VAC	General Purpose	Sealed - Fully	22 ms	Non Latching	CQC cURus VDE	Through Hole	9600 VA	0.06 A	15 ms	1.5 VDC	-40 C	105 ░C	20 A

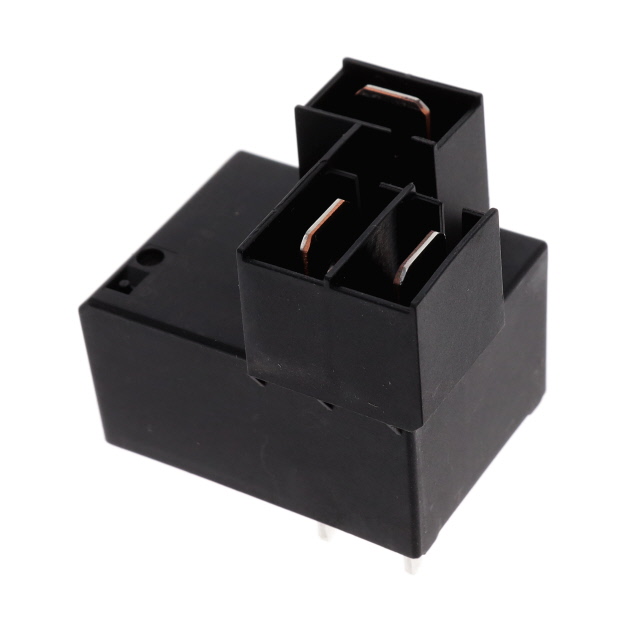

TE Connectivity AMP Connectors T9GS5L24-15	249 Ohms	SPDT (1 Form C)	PC Pin Quick Connect - 0.250" (6.3mm)	Class F	11.25 VDC	Silver Tin Oxide (AgSnO)	15 VDC	480 VAC	General Purpose	Sealed - Fully	22 ms	Non Latching	CQC cURus VDE	Through Hole	9600 VA	0.06 A	15 ms	1.5 VDC	-40 C	105 ░C	20 A

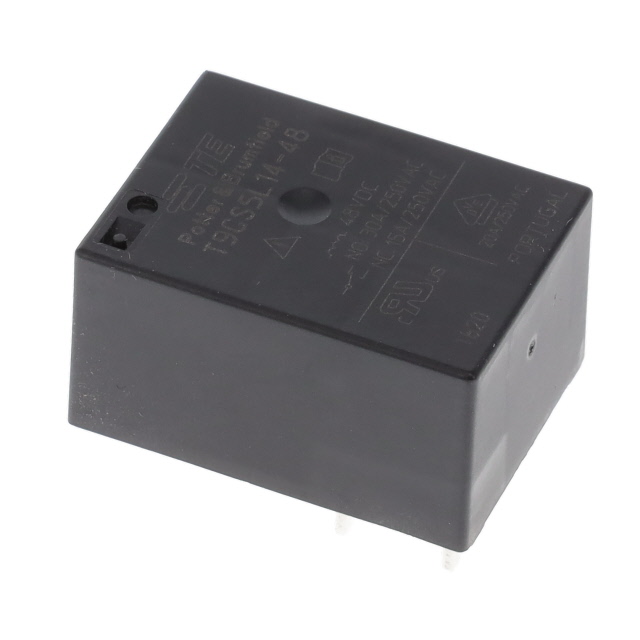

TE Connectivity AMP Connectors T9GS5L14-48	2500 Ohms	SPDT (1 Form C)	PC Pin	Class F	36 VDC	Silver Tin Oxide (AgSnO)	48 VDC	480 VAC	General Purpose	Sealed - Fully	22 ms	Non Latching	CQC cURus VDE	Through Hole	9600 VA	18.8 mA	15 ms	4.8 VDC	-40 C	105 ░C	20 A

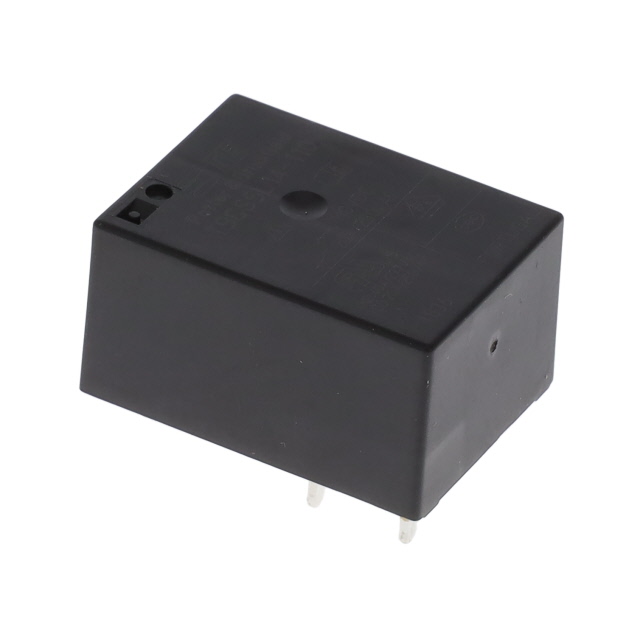

TE Connectivity AMP Connectors T9GS5L14-110	13.4 kOhms	SPDT (1 Form C)	PC Pin	Class F	82.5 VDC	Silver Tin Oxide (AgSnO)	110 VDC	480 VAC	General Purpose	Sealed - Fully	22 ms	Non Latching	CQC cURus VDE	Through Hole	9600 VA	8.2 mA	15 ms	11 VDC	-40 C	105 ░C	20 A
