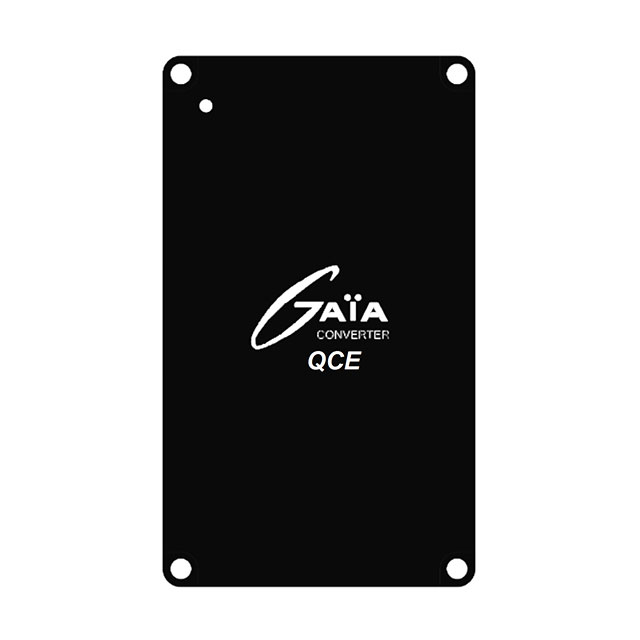

MGDSK100 Series
Manufacturer: Gaia Converter
Beta
⌘K
DC DC CONVERTER
| Part | Applications | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 1 | Power (Watts) | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Type | Efficiency | Voltage - Input (Min) [Min] | Number of Outputs | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Gaia Converter | ITE (Commercial) | Through Hole | -40 C | 95 °C | 1.5 kV | 1.9 " | 12.8 mm | 73.3 mm | 0.49 " | 48.3 mm | 2.88 in | 15 V | 100 W | 60 V | 6.5 A | Isolated Module | 88 % | 11 V | 1 | 18-DIP Module |
