4824 Series

Catalog

IC & COMPONENT SOCKET, 24 CONTACTS, DIP SOCKET, 2.54 MM, 4800 SERIES, 7.62 MM, PHOSPHOR BRONZE

Part	Current Rating (Amps)	Material Flammability Rating	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Housing Material	Contact Material - Post	Contact Material - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Pitch - Post	Pitch - Post	Type	Type	Type	Mounting Type	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid)	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Pitch - Mating	Pitch - Mating	Type [custom]	Type [custom]
3M Electronic Specialty 4824-3000-CP	1 A	UL94 V-0	Open Frame	35 µin	0.9 µm	Polyester Glass Filled	Phosphor Bronze	Phosphor Bronze	0.9 µm	35.4 µin	Tin	0.1 in	2.54 mm	7.62 mm	0.3 in	DIP	Through Hole	12	2	24	85 °C	-25 °C	Solder	0.1 "	2.54 mm

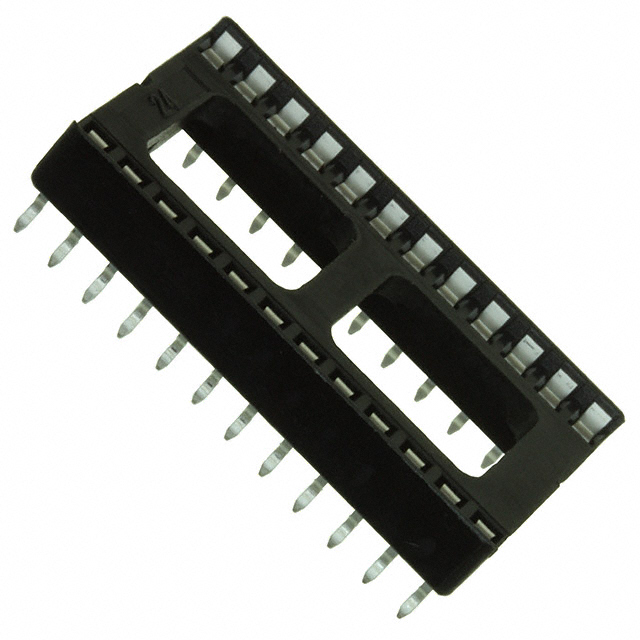

3M Electronic Specialty 4824-6004-CP	1 A	UL94 V-0	Open Frame	35 µin	0.9 µm	Polyester Glass Filled	Phosphor Bronze	Phosphor Bronze	0.9 µm	35.4 µin	Tin	0.1 in	2.54 mm			DIP	Through Hole	12	2	24	85 °C	-25 °C	Solder	0.1 "	2.54 mm	15.24 mm	0.6 in
3M Electronic Specialty 4824-6000-CP	1 A	UL94 V-0	Open Frame	35 µin	0.9 µm	Polyester Glass Filled	Phosphor Bronze	Phosphor Bronze	0.9 µm	35.4 µin	Tin	0.1 in	2.54 mm			DIP	Through Hole	12	2	24	85 °C	-25 °C	Solder	0.1 "	2.54 mm	15.24 mm	0.6 in
