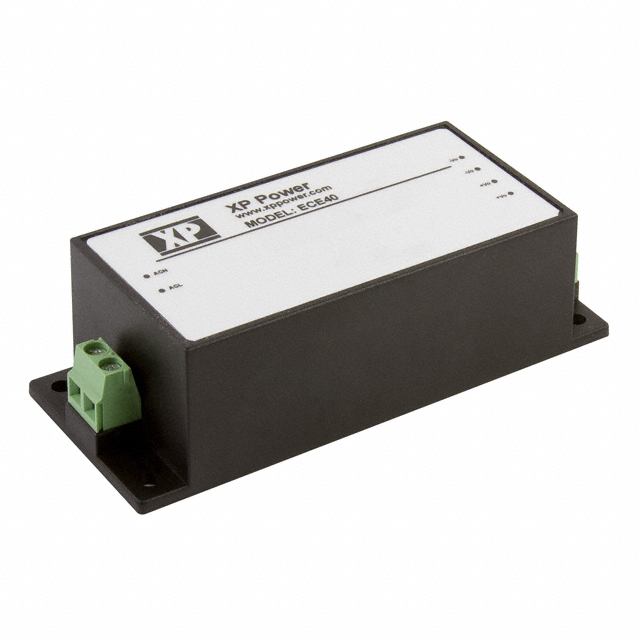

ECE40 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER 5V 40W
| Part | Minimum Load Required | Voltage - Output 1 | Mounting Type | Current - Output 1 | Standard Number | Applications | Efficiency | Features | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension | Size / Dimension [y] | Voltage - Isolation | Number of Outputs | Type | Power (Watts) | Input Type | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 5 V | Chassis Mount | 8 A | 62368-1 | ITE (Commercial) | 77 % | DC Input Capable Universal Input | -25 °C | 70 °C | 3.78 in | 1.12 " | 28.5 mm 40 mm 96 mm | 1.57 " | 3000 V | 1 | Enclosed | 40 W | |||||
 XP Power | 24 V | 62368-1 | ITE (Commercial) | 85 % | Universal Input | -25 °C | 70 °C | 3.78 in | 1.12 " | 28.5 mm 40 mm 96 mm | 1.57 " | 3000 V | 1 | 40 W | AC | 264 VAC | 85 VAC | 1.67 A | ||||
XP Power | 3.3 V | 62368-1 | ITE (Commercial) | 73 % | Universal Input | -25 °C | 70 °C | 3.78 in | 1.12 " | 28.5 mm 40 mm 96 mm | 1.57 " | 3000 V | 1 | 40 W | AC | 264 VAC | 85 VAC | 10 A | ||||
XP Power | 48 V | 62368-1 | ITE (Commercial) | 86 % | Universal Input | -25 °C | 70 °C | 3.78 in | 1.12 " | 28.5 mm 40 mm 96 mm | 1.57 " | 3000 V | 1 | 40 W | AC | 264 VAC | 85 VAC | 830 mA | ||||
XP Power | 3.3 V | Chassis Mount | 10 A | 62368-1 | ITE (Commercial) | 73 % | DC Input Capable Universal Input | -25 °C | 70 °C | 3.78 in | 1.12 " | 28.5 mm 40 mm 96 mm | 1.57 " | 3000 V | 1 | Enclosed | 40 W |
