PS15 Series

Catalog

SWITCH PUSHBUTTON SPDT 5A 125V

Part	Electrical Life	Type	Mounting Type	Voltage Rating - AC	Circuit	Actuator Type	Actuator Marking	Voltage Rating - DC	Termination Style	Color - Actuator/Cap	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
Electroswitch PS15-1122G	60000 Cycles	Standard	Panel Mount Snap-In	125 V	SPDT	Button Square	No Marking	28 V	Solder Lug	White	5 A	85 °C	-30 ░C	On-Mom	15.24 mm	12.7 mm
Electroswitch PS15-1132B	60000 Cycles	Standard	Panel Mount Snap-In	28 V	SPDT	Button Square	No Marking	28 V	Solder Lug	Red	0.4 VA	85 °C	-30 ░C	On-Mom	15.24 mm	12.7 mm
Electroswitch PS15-1124B	60000 Cycles	Illuminated Standard	Panel Mount Snap-In	28 V	SPDT	Button Square	No Marking	28 V	Solder Lug	White	0.4 VA	85 °C	-30 ░C	On-Mom	15.24 mm	12.7 mm
Electroswitch PS15-1133B	60000 Cycles	Standard	Panel Mount Snap-In	28 V	SPDT	Button Square	No Marking	28 V	Solder Lug	Red	0.4 VA	85 °C	-30 ░C	On-Mom	15.24 mm	12.7 mm
Electroswitch PS15-2124B	60000 Cycles	Illuminated Standard	Panel Mount Snap-In	28 V	DPDT	Button Square	No Marking	28 V	Solder Lug	White	0.4 VA	85 °C	-30 ░C	On-Mom	15.24 mm	12.7 mm
Electroswitch PS15-1111B	60000 Cycles	Standard	Panel Mount Snap-In	28 V	SPDT	Button Square	No Marking	28 V	Solder Lug	Black	0.4 VA	85 °C	-30 ░C	On-Mom	15.24 mm	12.7 mm

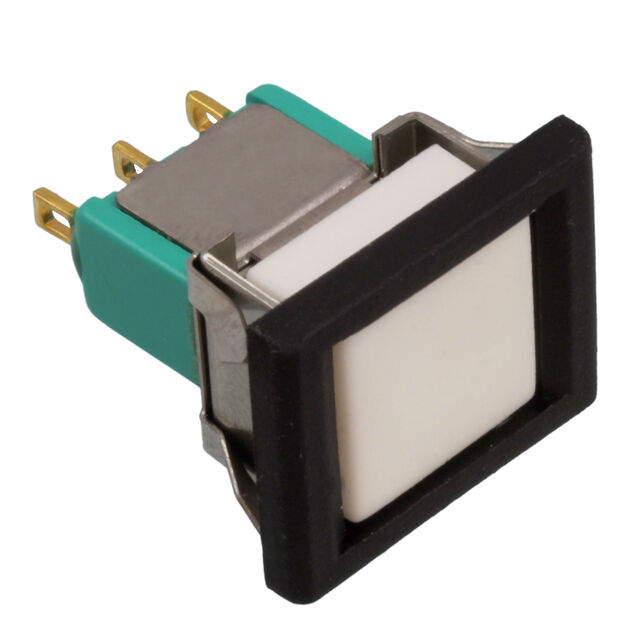

Electroswitch PS15-1112Q	60000 Cycles	Standard	Panel Mount Snap-In	125 V	SPDT	Button Square	No Marking	28 V	Solder Lug	Black	5 A	85 °C	-30 ░C	On-Mom	15.24 mm	12.7 mm
Electroswitch PS15-2122G	60000 Cycles	Standard	Panel Mount Snap-In	125 V	DPDT	Button Square	No Marking	28 V	Solder Lug	White	1 A	85 °C	-30 ░C	On-Mom	15.24 mm	12.7 mm
Electroswitch PS15-2122B	60000 Cycles	Standard	Panel Mount Snap-In	28 V	DPDT	Button Square	No Marking	28 V	Solder Lug	White	0.4 VA	85 °C	-30 ░C	On-Mom	15.24 mm	12.7 mm
Electroswitch PS15-100Q	60000 Cycles	Standard	Panel Mount Snap-In	125 V	SPDT	Plunger for Cap	No Marking	28 V	Solder Lug		5 A	85 °C	-30 ░C	On-Mom	15.24 mm	12.7 mm
