170140 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

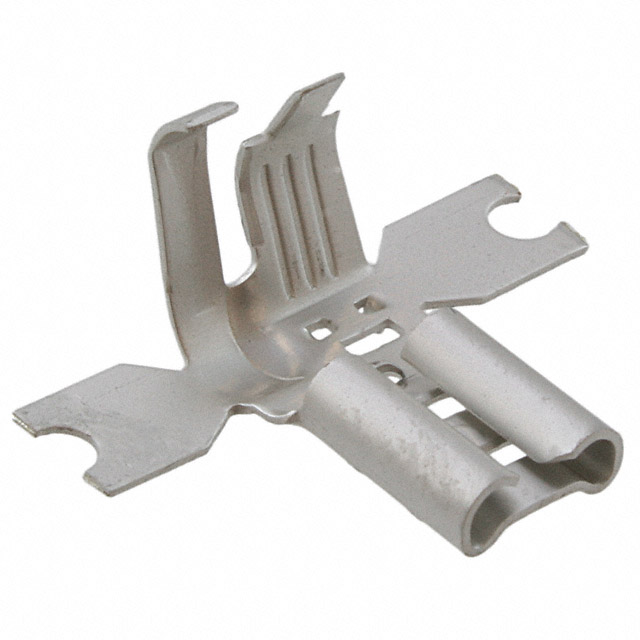

PUSH-ON TERMINAL, 1.5MM2
| Part | Gender | Contact Material | Contact Finish | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Tab Length | Tab Length | Insulation | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Tab Width | Tab Width | Tab Thickness | Tab Thickness | Terminal Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Female | Brass | Tin | 2.79 mm | 0.17 " | 4.32 mm | 0.11 " | 6.35 mm | 0.25 in | Non-Insulated | Free Hanging (In-Line) Right Angle | 16 AWG | 20 AWG | 4.75 mm | 0.187 in | 0.02 " | 0.51 mm | Angled - 90° Flag | Crimp |
