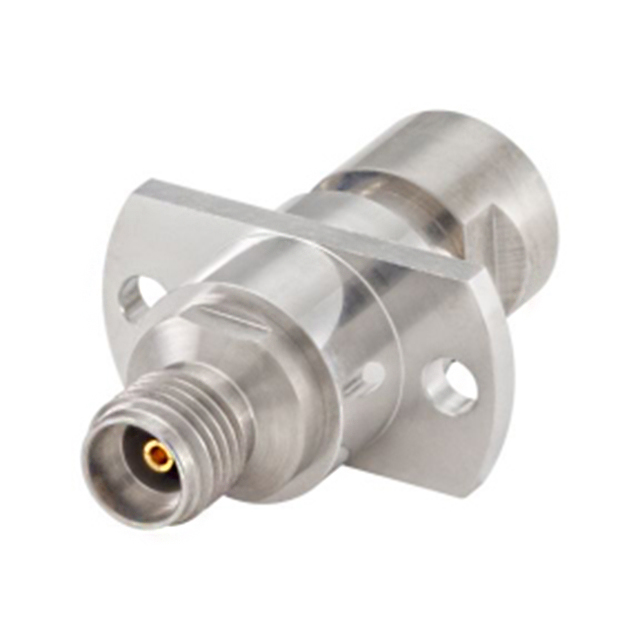

03K728 Series
Manufacturer: Rosenberger
Beta
⌘K
RF ADAPTERS - BETWEEN SERIES FLOATING ADAPTOR
| Part | Dielectric Material | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Insertion Loss | Body Material | Adapter Series | Conversion Type | Mounting Feature | Convert From (Adapter End) | Impedance | Adapter Type | Fastening Type | Center Contact Plating | Style | Frequency - Max [Max] | Mounting Type | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polystyrene (PS) | 1000 | 85 °C | -40 C | Beryllium Copper | 0.21 dB | Stainless Steel | RPC-3.50 to QMA | Between Series | Flange | 3.5mm Jack Female Socket | 50 Ohms | Plug to Jack | Snap-On Threaded | Gold | Straight | 18 GHz | Panel Mount | QMA Plug Male Pin |
