86502CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

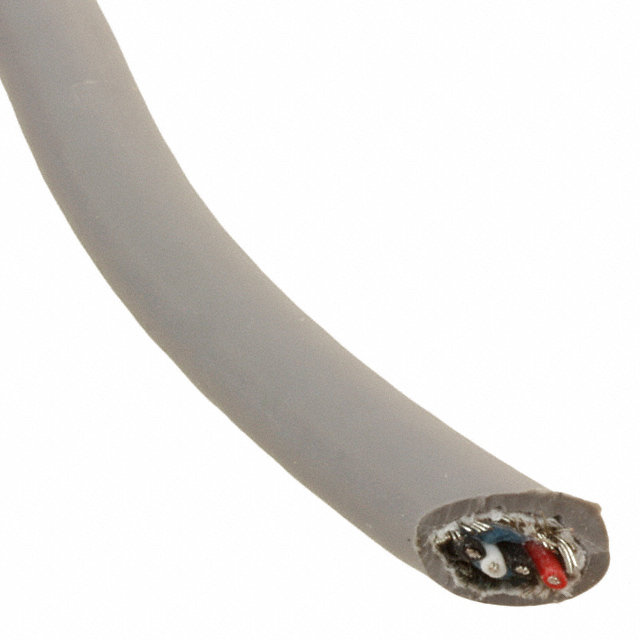

MULTI-PAIR 4COND 26AWG 1000'
| Part | Shield Material | Conductor Material | Jacket Color | Wire Gauge | Conductor Insulation | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Length | Length | Voltage | Ratings | Shield Coverage | Shield Type | Conductor Strand | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | Copper Tinned | Slate | 26 AWG | Poly-Vinyl Chloride (PVC) | 4 | 6.2 mm | 0.244 in | Multi-Pair | Biological Compatibility Drain Wire | 0.04 in | 1.016 mm | Poly-Vinyl Chloride (PVC) | 1000 ft | 304.8 m | 300 V | ISO 10993 UL Style 2661 | 85 % 100 % | Braid Foil | 7 Strands 34 AWG | ||
ALPHA WIRE | Aluminum Copper Tinned | Copper Tinned | Slate | 26 AWG | Poly-Vinyl Chloride (PVC) | 4 | 6.2 mm | 0.244 in | Multi-Pair | Biological Compatibility Drain Wire | 0.04 in | 1.016 mm | Poly-Vinyl Chloride (PVC) | 300 V | ISO 10993 UL Style 2661 | 85 % 100 % | Braid Foil | 7 Strands 34 AWG | 500 ' | 152.4 m |
