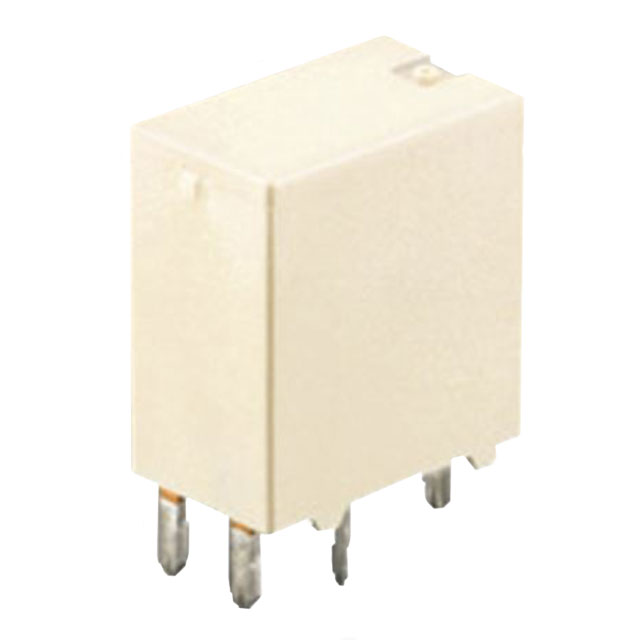

ACJ1112 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY AUTOMOTIVE SPDT 20A 12V
| Part | Coil Power | Coil Resistance | Contact Material | Coil Type | Mounting Type | Features | Operate Time | Must Release Voltage | Switching Voltage | Release Time | Termination Style | Contact Rating (Current) | Coil Current | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 800 mW | 180 Ohms | Silver Alloy Cadmium Free | Non Latching | Through Hole | Sealed - Flux Protection | 10 ms | 0.8 VDC | 14 VDC | 10 ms | PC Pin | 20 A | 66.7 mA | SPDT (1 Form C) | 85 °C | -40 C | 12 VDC | 6.5 VDC |
