6E17C037 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

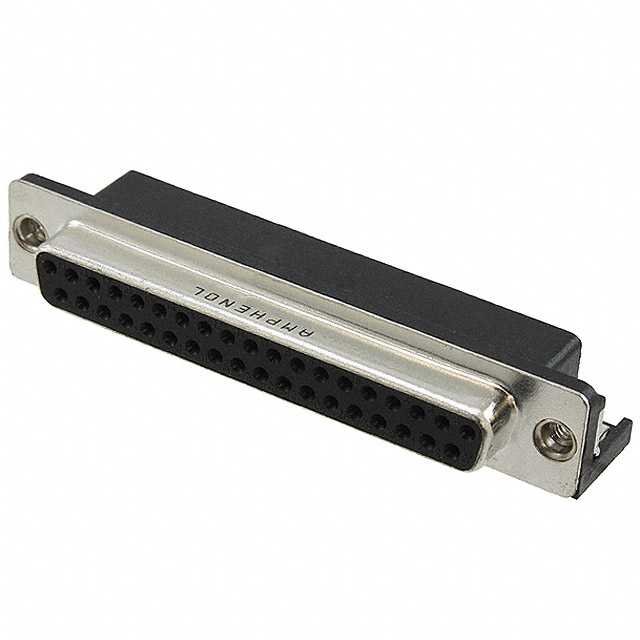

CONN D-SUB RCPT 37POS R/A SLDR
| Part | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Positions | Termination | Features | Flange Feature | Flange Feature | Shell Material, Finish | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Contact Finish | Backset Spacing | Backset Spacing | Shell Size, Connector Layout | Shell Size, Connector Layout | Connector Type | Current Rating (Amps) | Connector Style | Number of Rows [custom] | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Black | Glass Filled Nylon Polyamide (PA) | -55 C | 105 ░C | Copper Alloy | 37 | Solder | Board Lock Shielded | Housing/Shell | 4-40 | Nickel Plated Steel | Right Angle Through Hole | 30 Áin | 0.76 Ám | UL94 V-0 | Gold | 8.08 mm | 0.318 " | 4 | DC C | Receptacle Female Sockets | 5 A | D-Sub | 2 | Signal |
 Amphenol ICC (Commercial Products) | Black | Glass Filled Nylon Polyamide (PA) | -55 C | 105 ░C | Copper Alloy | 37 | Solder | Board Lock Grounding Indents Shielded | Housing/Shell (Unthreaded) | Nickel Plated Steel | Right Angle Through Hole | 3 µin | 0.076 Ám | UL94 V-0 | Gold | 8.08 mm | 0.318 " | 4 | DC C | Plug Male Pins | 5 A | D-Sub | 2 | Signal | |
Amphenol ICC (Commercial Products) | Black | Glass Filled Nylon Polyamide (PA) | -55 C | 105 ░C | Copper Alloy | 37 | Solder | Board Lock Grounding Indents Shielded | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | Right Angle Through Hole | 30 Áin | 0.76 Ám | UL94 V-0 | Gold | 8.08 mm | 0.318 " | 4 | DC C | Plug Male Pins | 5 A | D-Sub | 2 | Signal | |
 Amphenol ICC (Commercial Products) | Black | Glass Filled Nylon Polyamide (PA) | -55 C | 105 ░C | Copper Alloy | 37 | Solder | Board Lock Grounding Indents Shielded | Housing/Shell | 4-40 | Nickel Plated Steel | Right Angle Through Hole | 30 Áin | 0.76 Ám | UL94 V-0 | Gold | 8.08 mm | 0.318 " | 4 | DC C | Plug Male Pins | 5 A | D-Sub | 2 | Signal |
