10GENG Series

Catalog

POWER ENTRY MODULE FILTERED M 3 POS 250VAC 10A ST 1 PORT

Part	Connector Style	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Current Rating - Appliance Inlet	Connector Type	Termination	Approval Agency	Current Rating - Filter	Features	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Filter Type

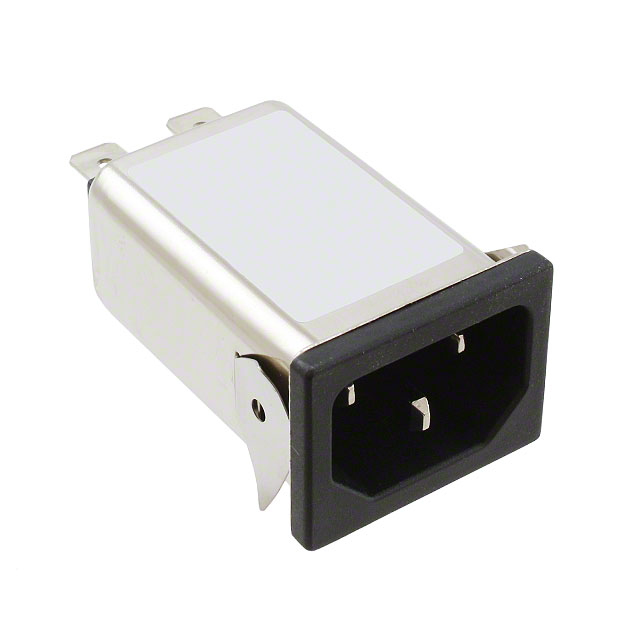

Delta Electronics 10GENG3E-R(H)	IEC 320-C14	0.032 in	1.6 mm	0.063 "	0.81 mm	10 A	Receptacle Male Blades	Quick Connect	CSA UL VDE	10 A	Bleed Resistor Mounting Clip	21.5 mm	29.5 mm	Panel Mount Snap-In	115 VAC	250 VAC	Filtered (EMI RFI) - Commercial

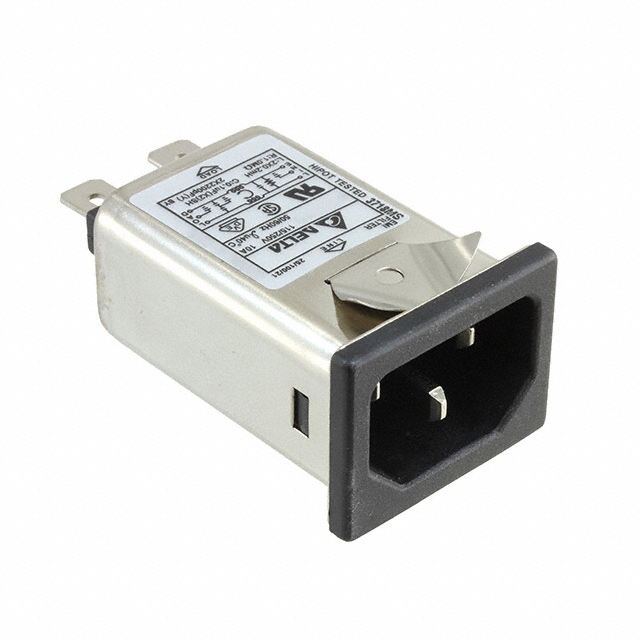

Delta Electronics 10GENG3E-R	IEC 320-C14	0.032 in	1.6 mm	0.063 "	0.81 mm	10 A	Receptacle Male Blades	Quick Connect	CSA UL VDE	10 A	Bleed Resistor	21.9 mm	28.45 mm	Panel Mount Snap-In	115 VAC	250 VAC	Filtered (EMI RFI) - Commercial

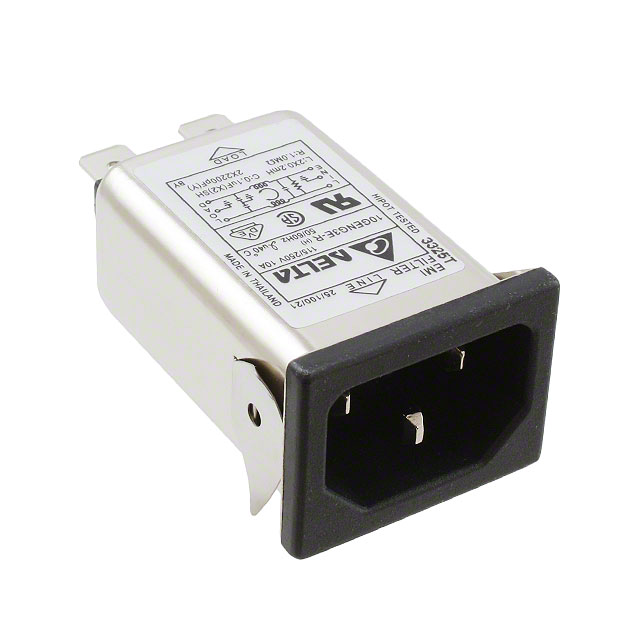

Delta Electronics 10GENG3E	IEC 320-C14	0.032 in	1.6 mm	0.063 "	0.81 mm	10 A	Receptacle Male Blades	Quick Connect	CSA UL VDE	10 A		21.9 mm	28.45 mm	Panel Mount Snap-In	115 VAC	250 VAC	Filtered (EMI RFI) - Commercial
