ADP2114 Series

Catalog

CONFIGURABLE, DUAL 2 A/SINGLE 4 A, SYNCHRONOUS STEP-DOWN DC-TO-DC REGULATOR

Part	Operating Temperature (Max)	Operating Temperature (Min)	Function	Current - Output (Min)	Current - Output (Max)	Mounting Type	Voltage - Output (Max)	Output Configuration	Package Width	Package Name	Package Length	Topology	Voltage - Input (Max)	Package / Case	Output Type	Voltage - Input (Min)	Synchronous Rectifier	Frequency - Switching	Voltage - Output (Fixed Options)	Voltage - Output (Min)	Number of Outputs	Number of Outputs (Min)	Number of Outputs (Max)	Total Output Count	Non-Isolated Output Count	Board Type	Supplied Contents	Main Purpose	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Utilized IC / Part	Current - Output	Regulator Topology	Contents
Analog Devices Inc./Maxim Integrated ADP2114ACPZ-R7	125 °C	-40 °C	Step-Down	2 A	4 A	Surface Mount	5.5 V	Positive	5 mm	32-LFCSP-WQ	5 mm	Buck	5.5 V	32-WFQFN Exposed Pad CSP	Adjustable (Programmable)	2.75 V	Yes	1.2 MHz 300 kHz 600 kHz	0.8V 1.2V 1.5V 1.8V 2.5V 3.3V	0.6 V	1 2	1	2
Analog Devices Inc./Maxim Integrated ADP2114ACPZ-R2	125 °C	-40 °C	Step-Down	2 A	4 A	Surface Mount	5.5 V	Positive	5 mm	32-LFCSP-WQ	5 mm	Buck	5.5 V	32-WFQFN Exposed Pad CSP	Adjustable (Programmable)	2.75 V	Yes	1.2 MHz 300 kHz 600 kHz	0.8V 1.2V 1.5V 1.8V 2.5V 3.3V	0.6 V	1 2	1	2

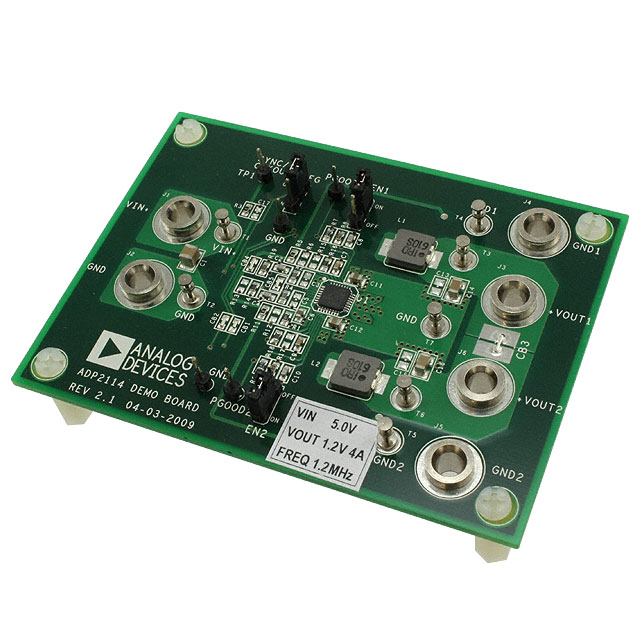

Analog Devices Inc./Maxim Integrated ADP2114-2PH-EVALZ							3.3 V								Non-Isolated			1.2 MHz 300 kHz 600 kHz		0.6 V				1	1 count	Fully Populated	Board(s)	DC/DC Step Down	5.5 V	2.75 V	ADP2114	4 A	Buck	Board
