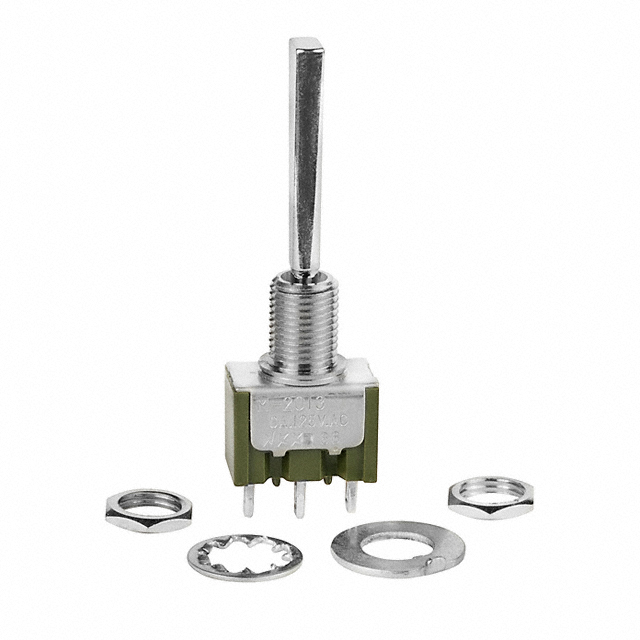

M2013E4 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SPDT 6A 125V
| Part | Electrical Life | Actuator Material | Actuator Length [x] | Voltage Rating - DC | Circuit | Features | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Actuator Type | Illumination | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Switch Function | Current Rating (Amps) | Termination Style | Bushing Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | 21.3 mm | 30 V | SPDT | Epoxy Sealed Terminals | 85 °C | -30 ░C | Panel Mount | Flatted | Non-Illuminated | 125 V | 6.5 mm | On-Off-On | 3 A 6 A | Solder Lug | 1/4-40 |
