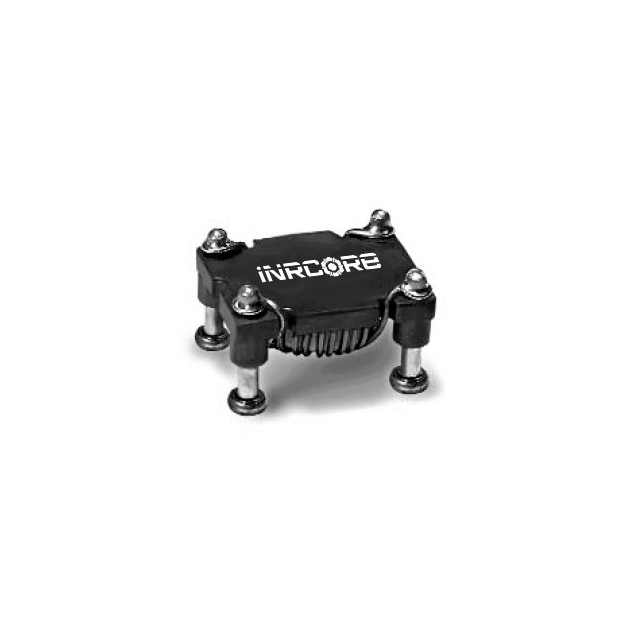

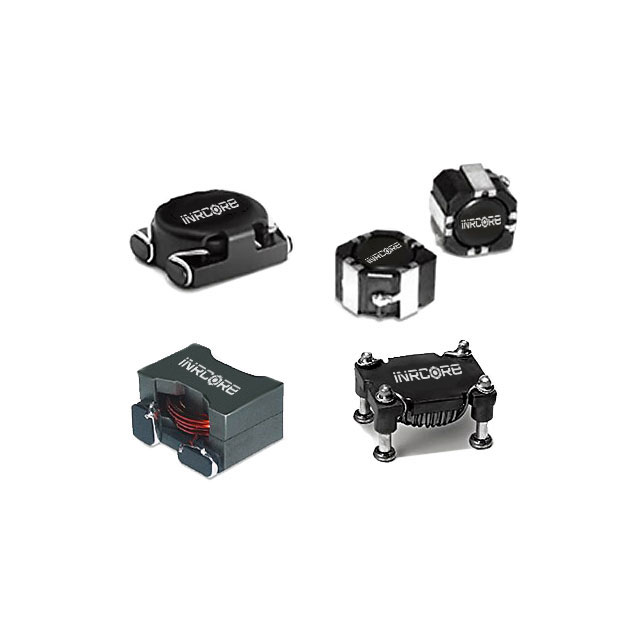

PL85 Series
Manufacturer: iNRCORE
Beta
⌘K
FIXED IND 220UH 820MA 673MOHM SM
| Part | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Inductance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Current Rating (Amps) | Type | Mounting Type | DC Resistance (DCR) [Max] | Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 iNRCORE | Unshielded | 130 °C | -40 C | 220 µH | 13.34 mm | 15.88 mm | 0.525 in | 0.625 " | Nonstandard | 820 mA | Toroidal | Surface Mount | 673 mOhm | 10 % | 0.32 in | 8.12 mm |
 iNRCORE | Unshielded | 130 °C | -40 C | 100 µH | 13.34 mm | 15.88 mm | 0.525 in | 0.625 " | Nonstandard | 1.2 A | Toroidal | Surface Mount | 285 mOhm | 10 % | 0.32 in | 8.12 mm |
