6010 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

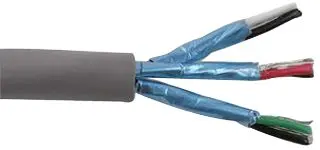

MULTI-CONDUCTOR CABLES 22 AWG, 3 PAIR COMMUNICATION CABLE, SHIELDED, 100 FT - SLATE
| Part | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Jacket (Insulation) Material | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] | Features | Conductor Material | Number of Conductors | Wire Gauge | Usage | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 300 VDC | 1.219 mm | 0.048 in | Foil | Poly-Vinyl Chloride (PVC) | Slate | -20 ░C | 60 °C | Polypropylene (PP) | 7.57 mm | 0.298 " | 30 AWG | 7 | 100 ft | 30.5 m | Drain Wire | Copper Tinned | 6 | 22 AWG | Communication Control | Multi-Pair |
