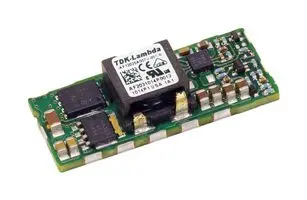

IAF12020 Series

Catalog

NON ISOLATED POL DC/DC CONVERTER, ITE, DOSA, 110 W, 700 MV, 5.5 V, 20 A

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Current - Output (Max) [Max]	Applications	Package / Case	Efficiency	Number of Outputs	Voltage - Input (Min) [Min]	Mounting Type	Features	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]
TDK Corporation IAF12020A007V-007-R	33 mm	0.53 in	0.31 "	7.8 mm	13.5 mm	1.3 in	Non-Isolated PoL Module	20 A	ITE (Commercial)	Module	95 %	1	4.5 V	Surface Mount	OCP Remote On/Off SCP	14 V	115 °C	-40 C	Active Low Enable	5.5 V	0.7 V
