2466C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

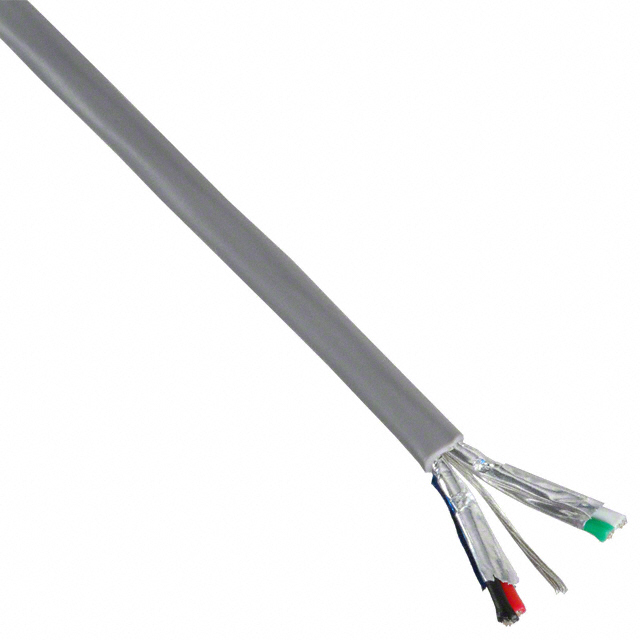

MULTI-PAIR 4CON 22AWG SLATE FEET
| Part | Shield Coverage | Spool Size | Spool Size | Shield Material | Cable Type | Jacket (Insulation) Material | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Usage | Wire Gauge | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Length | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | 5000 ft | 1524 m | Aluminum | Multi-Pair | Poly-Vinyl Chloride (PVC) | Foil | 30 AWG | 7 | Polypropylene (PP) | Communication Control | 22 AWG | Copper Tinned | 0.02 " | 0.508 mm | Drain Wire | Enter Number of Feet in Order Quantity | 300 VDC | 0.17 in | 4.32 mm | Slate | 4 | ||
ALPHA WIRE | 100 % | Aluminum | Multi-Pair | Poly-Vinyl Chloride (PVC) | Foil | 30 AWG | 7 | Polypropylene (PP) | Communication Control | 22 AWG | Copper Tinned | 0.02 " | 0.508 mm | Drain Wire | 300 VDC | 0.17 in | 4.32 mm | Slate | 4 | 304.8 m | 1000 ft |
